Viewing the Connection Panel

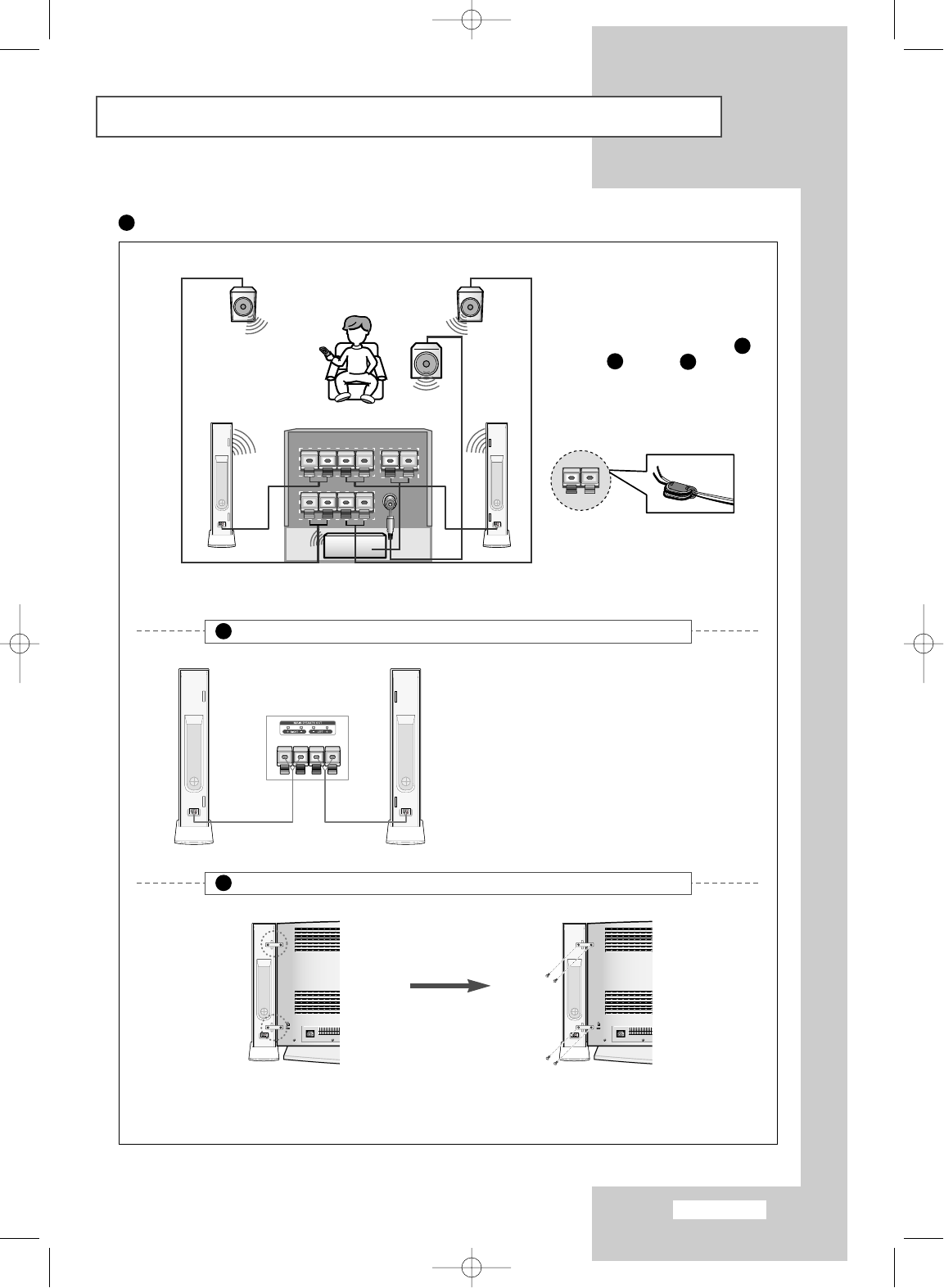

Connecting 5.1 Channel Speakers For Home Theater
The other speakers
(Surround/Center/Sub
woofer):Connect the each
speaker audio cable to the
speaker output jack(surround
/Center / Woofer 1 )on the
rear of your set making sure
that the +, - polarities are
correctly aligned.
➢
Wind the speaker cable on
the core twice or more.
8
10
12
11
Main Speaker : When the speakers are attached with LCD TV
Main Speaker : When the speakers are separated from LCD TV
Connect the speaker audio cables to the main
speaker output jacks on the rear of your set
making sure that the +, - polarities are correctly
aligned.
➢
The speakers MUST have more than
10watts rating (Impedance 8Ω).
Mount the brackets on the speaker
and your set.
Connect the speaker and your set
using screws.
Surround
Speaker
Surround
Speaker
Woofer
Center Speaker
LCD TV Rear
Main Speaker Main Speaker
9
9
