Sony XT-DTV1 2-651-675-12(1)
6
ANT 1 ANT 2
SERVICE
POWER
12V
VIDEO
REMOTE
L
OUTPUT
RAUDIO
1
5 6
432

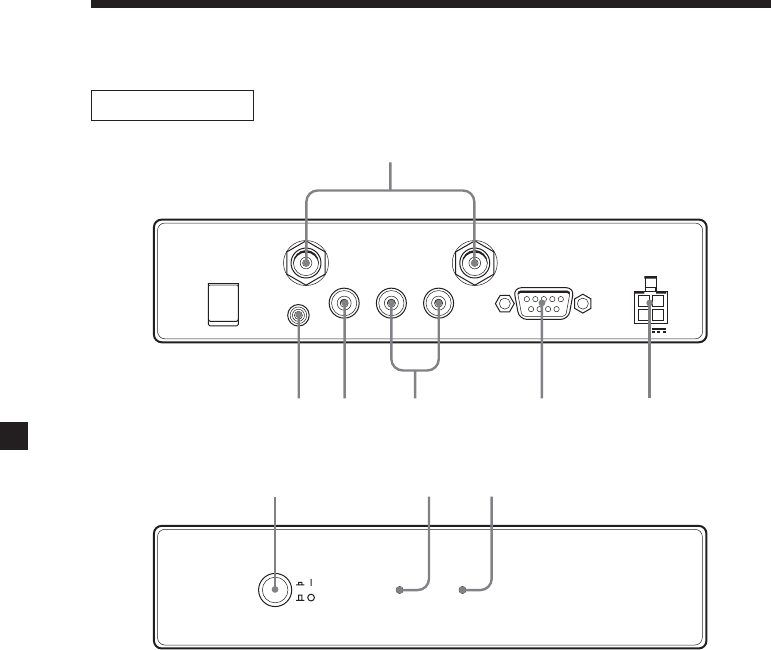

Location of controls
Digital TV Tuner
1 ANT 1/ANT 2 terminals
Input to connect the antennas.
2 REMOTE jack
Input to connect the remote control
sensor.
3 VIDEO jack
Connect to the video input jack on
your monitor, etc.
4 AUDIO jacks
Connect to the audio input jacks on
your monitor, etc.
5 SERVICE (RS232) terminal
This terminal is for service only.
6 POWER 12V jack
Connect the power supply cord
here.
7 |/a (power) button*
Turns on or off the unit.
8 |/1 (power) indicator
9 SIGNAL indicator
*When installing in a car without an ACC
(accessory) position on the ignition
switch, be sure to press this button to
turn off the unit when you do not use it.
Otherwise the battery will drain.
SIGNAL@ / 1
987
Rear
Front
