8
ANT-1 OUT ANT-2
ANT(75 )
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-2VIDEO-1
Y
P
B
P
R
L
Y
P
B
P
R
AUDIO
COLOR
STREAM
HD - 2
COLOR
STREAM
HD - 1
R
L
AUDIO
R
OUT
AUDIO
CENTER
CHANNEL IN
L/
MONO
AUDIO
ON OFF
VIDEO
VAR
AUDIO
L
R
R
IN
IN
L
R
DVI / HDCP
IN
OUT
Cable converter
box
IN
ANT-1 OUT ANT-2
ANT(75 )
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-2VIDEO-1
Y
P
B
P
R
L
Y
P
B
P
R
AUDIO
COLOR
STREAM
HD - 2
COLOR
STREAM
HD - 1
R
L
AUDIO
R
OUT
AUDIO
CENTER
CHANNEL IN
L/
MONO
AUDIO
ON OFF
VIDEO
VAR
AUDIO
L
R
R
IN
IN
L
R
DVI / HDCP
IN
IN from ANT
OUT to TV
CH 3
CH 4
VIDEO
AUDIO
LR
IN
OUT
IN
OUT
Cable
converter box
Note:
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, labeling channels, and locking
channels.
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have an S-VHS VCR, use an S-video
cable instead of a standard video cable. Do
not connect a standard video cable and an
S-video cable to Video-1 (or Video-2) at the
same time, or the picture performance will
be unacceptable.
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, labeling channels, and locking
channels.
TV
From cable
TV
From cable
Stereo VCR
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.

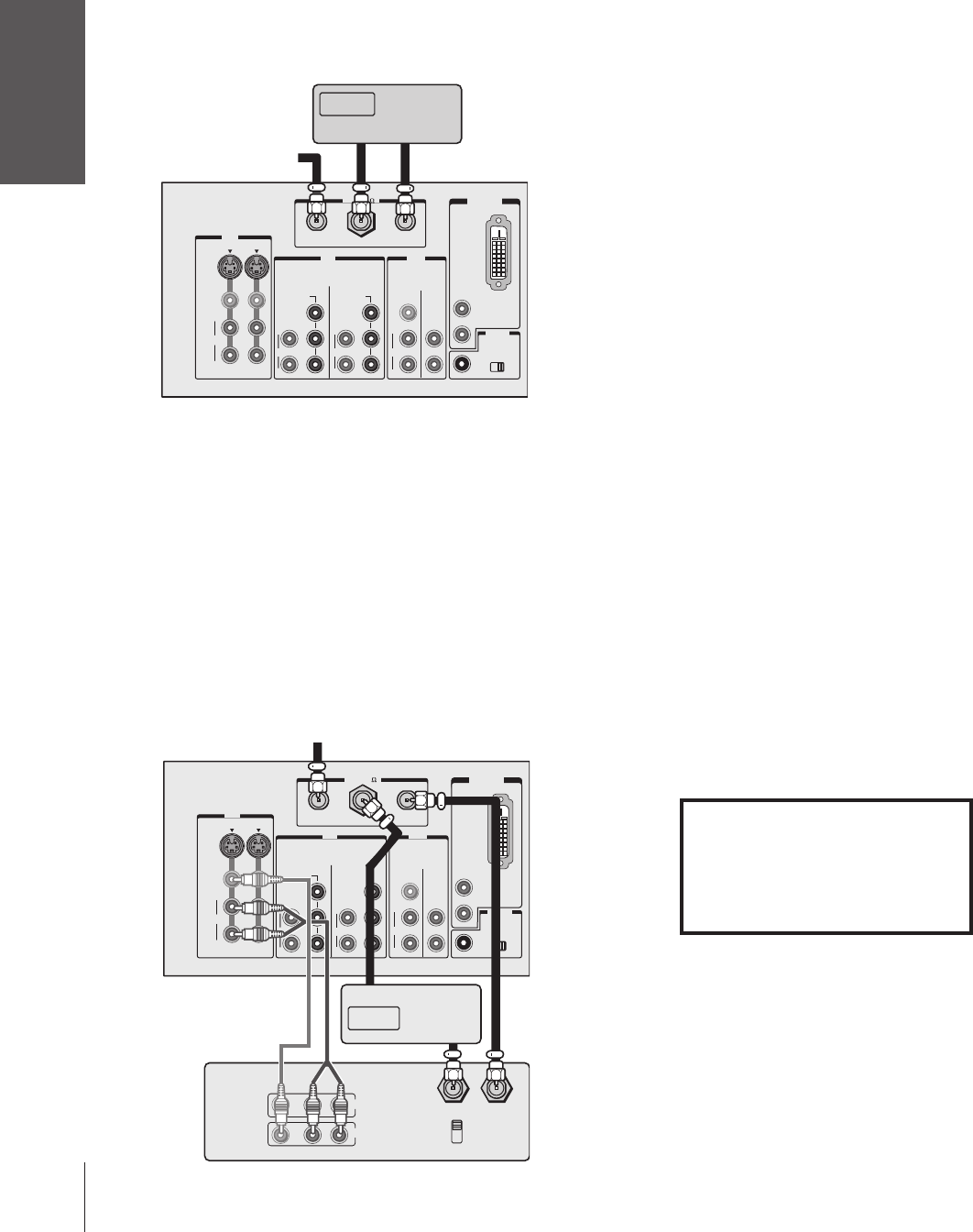

Connecting a cable converter box
This connection allows you to watch basic and premium cable
channels.
To use the TV’s features, select ANT-1. To view premium channels,
select ANT-2, tune the TV to channel 3 or 4 (whichever channel is
vacant in your area), and use the converter box to change channels.
You will need:
• three coaxial cables
Connecting a cable converter box and a VCR
This connection allows you to watch and record basic and premium
cable channels, watch videotapes, and record one channel while
watching another channel. To use the TV’s features, select ANT-1.
To view or record premium channels with the VCR, select ANT-2,
tune the TV to channel 3 or 4 (whichever channel is vacant in your
area), and use the converter box to change channels.
You will need:
• four coaxial cables
• one set of standard A/V cables
