OD-A017-02
TOSHIBA DVD-RAM SD-W1111 ‘99/06/26 Version 1.0
Page 15 Product Specification
10. Mounting
10.1 Mounting
Mount the drive using four M3 tapping holes bottom and two M3 tapping holes on each side.

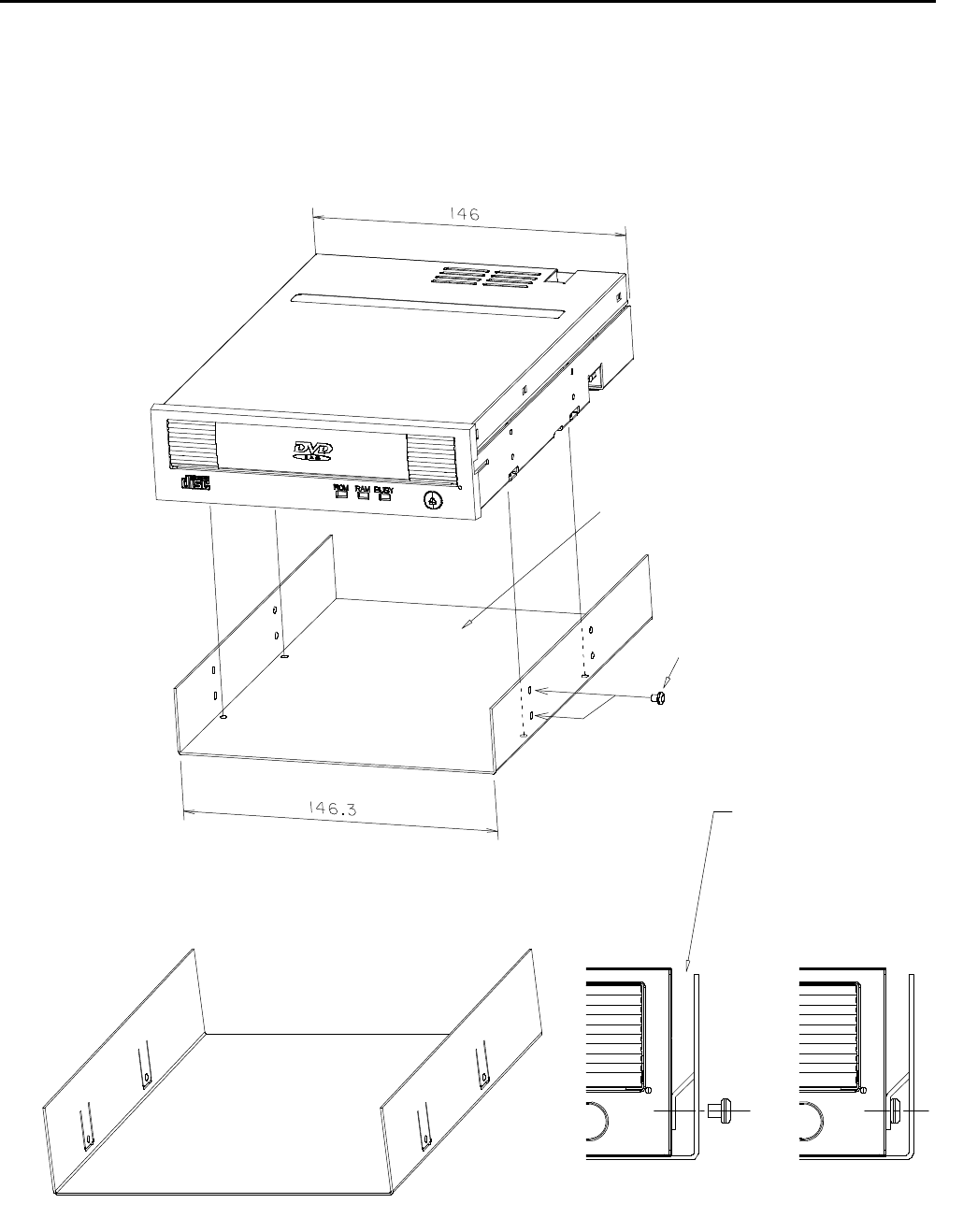

The following shows an example mounting on a personal computer or a sub system.
Use screws of which length
inside the drive should be
more than 2.5mm and less
than 3.5 mm from the drive
frame surface.
Keep this gap less than
0.5mm .
Before fixing After fixing
Flatness deviation under 0.5mm
