3 Installing the Receiver
22 AgGPS 252 Receiver User Guide

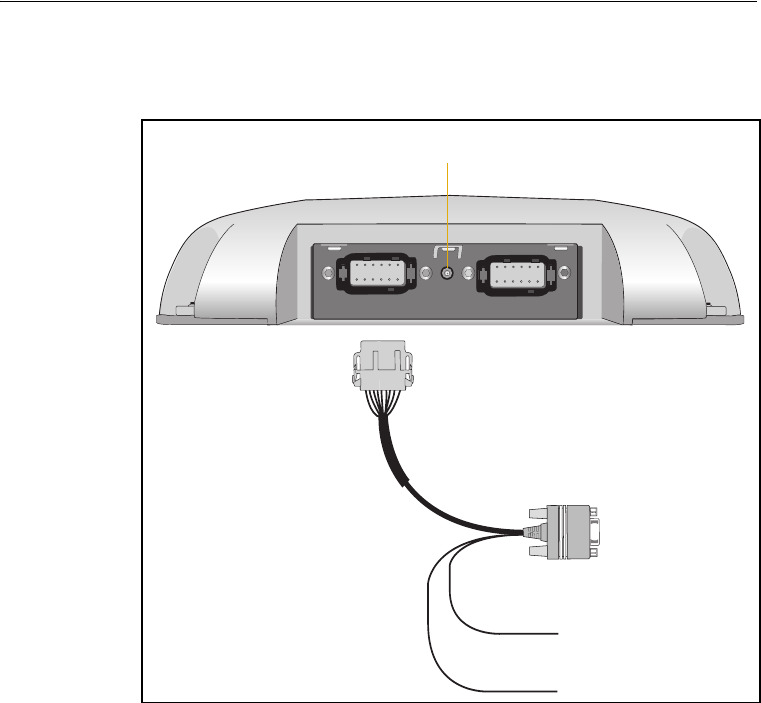

Figure 3.1 shows how to connect the receiver to an external device
using the system level cable (P/N 50166).
Figure 3.1 Standard power/data cable connections
When routing the cable from the receiver to the external device, avoid:
• sharp objects
• kinks in the cable
• hot surfaces (exhaust manifolds or stacks)
• rotating or moving machinery parts
• sharp or abrasive surfaces
AgGPS 252 receiver
AgGPS 252 receiver
DB9
cable (P/N 50166)
Ground –ve
Power +ve
Deutsch 12-pin
LED indicator
Port A Port B
System level
To external
device
