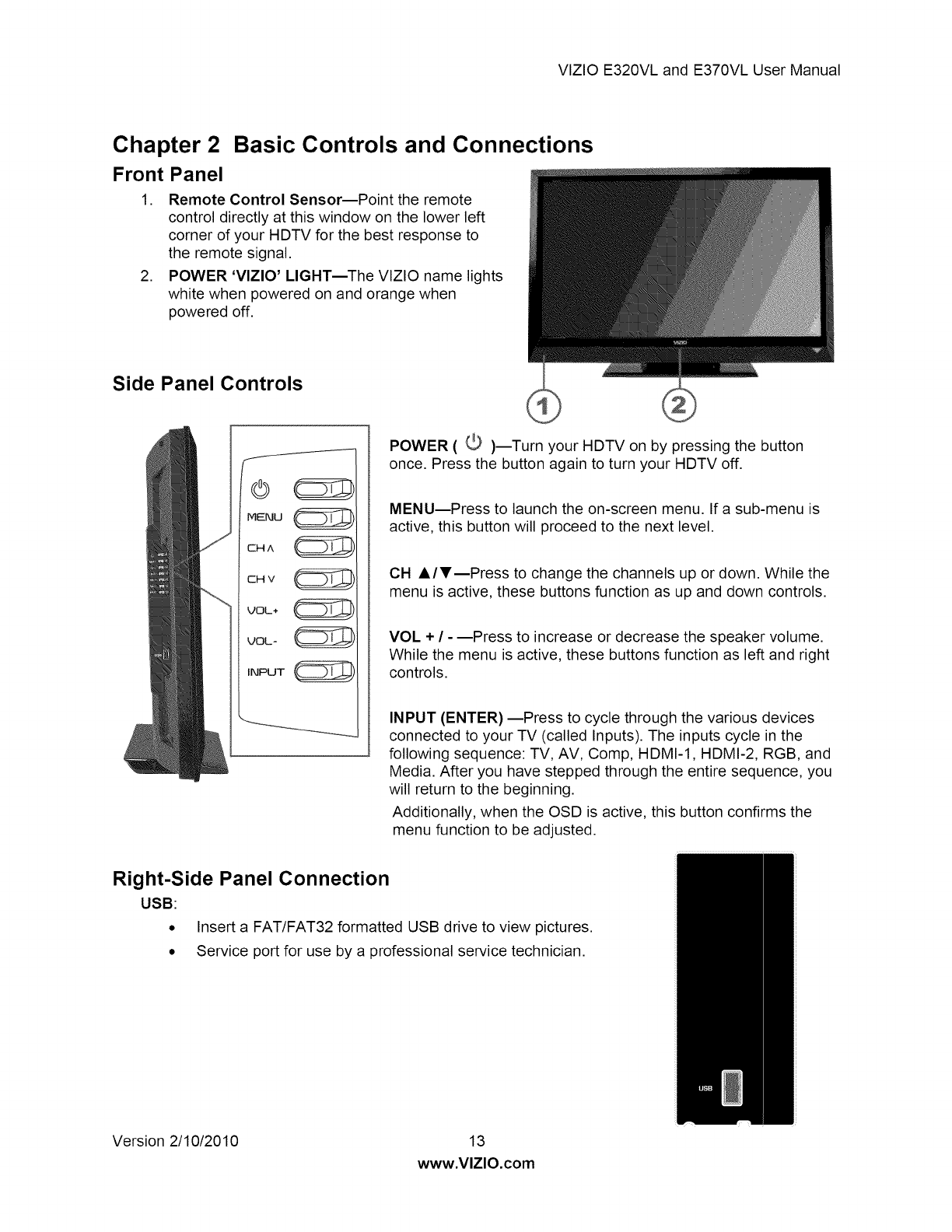

VIZIO E320VL and E370VL User Manual
Chapter 2 Basic Controls and Connections
Front Panel
1. Remote Control Sensor--Point the remote
control directly at this window on the lower left
corner of your HDTV for the best response to
the remote signal.
2. POWER 'VlZlO' LIGHTmThe VIZIO name lights
white when powered on and orange when
powered off.
Side Panel Controls
MENU
CH A
CH V
UOL*
UOL -
INPUT
POWER ( Ca )--Turn your HDTV on by pressing the button
once. Press the button again to turn your HDTV off.
MENU--Press to launch the on-screen menu. If a sub-menu is
active, this button will proceed to the next level.
CH A/VmPress to change the channels up or down. While the
menu is active, these buttons function as up and down controls.
VOL + / - --Press to increase or decrease the speaker volume.
While the menu is active, these buttons function as left and right
controls.
INPUT (ENTER) --Press to cycle through the various devices
connected to your TV (called Inputs). The inputs cycle in the
following sequence: TV, AV, Comp, HDMI-1, HDMI-2, RGB, and
Media. After you have stepped through the entire sequence, you
will return to the beginning.
Additionally, when the OSD is active, this button confirms the
menu function to be adjusted.
Right-Side Panel Connection
USB:
• Insert a FAT/FAT32 formatted USB drive to view pictures.
• Service port for use by a professional service technician.
Version 2/10/2010 13
www.VlZlO.com
