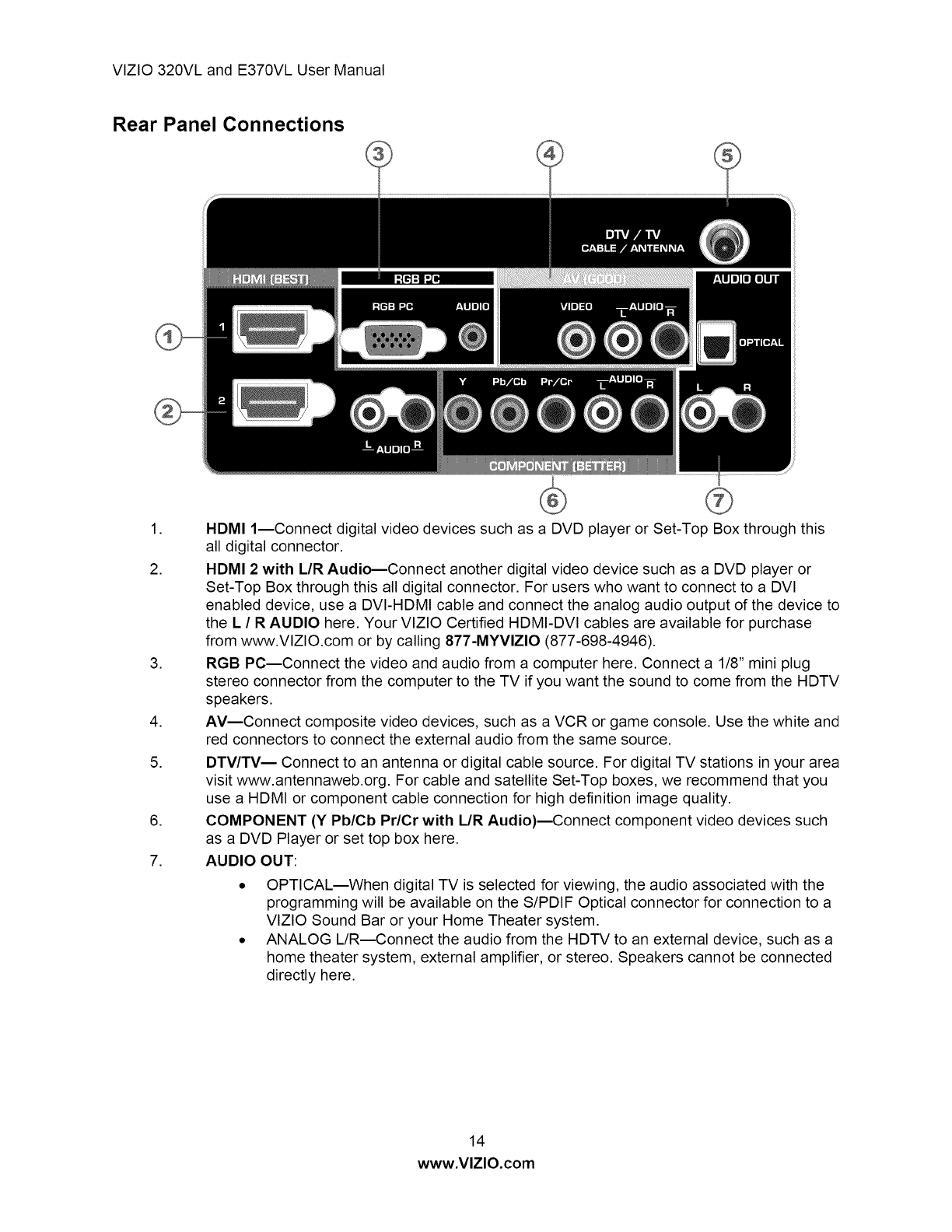

Rear Panel Connections
,
2.
,
,
5.
,
7.
HDMI 1reConnect digital video devices such as a DVD player or Set-Top Box through this
all digital connector.
HDMI 2 with L/R AudiomConnect another digital video device such as a DVD player or
Set-Top Box through this all digital connector. For users who want to connect to a DVI
enabled device, use a DVI-HDMI cable and connect the analog audio output of the device to
the L / R AUDIO here. Your VIZIO Certified HDMI-DVI cables are available for purchase
from www.VIZIO.com or by calling 877-MYVlZIO (877-698-4946).
RGB PC--Connect the video and audio from a computer here. Connect a 1/8" mini plug
stereo connector from the computer to the TV if you want the sound to come from the HDTV
speakers.
AV--Connect composite video devices, such as a VCR or game console. Use the white and
red connectors to connect the external audio from the same source.
DTV/TV-- Connect to an antenna or digital cable source. For digital TV stations in your area
visit www.antennaweb.org. For cable and satellite Set-Top boxes, we recommend that you
use a HDMI or component cable connection for high definition image quality.
COMPONENT (Y Pb/Cb Pr/Cr with L/R Audio)--Connect component video devices such
as a DVD Player or set top box here.
AUDIO OUT:
OPTICAL--When digital TV is selected for viewing, the audio associated with the
programming will be available on the S/PDIF Optical connector for connection to a
VIZIO Sound Bar or your Home Theater system.
ANALOG L/R--Connect the audio from the HDTV to an external device, such as a
home theater system, external amplifier, or stereo. Speakers cannot be connected
directly here.
