Normal Mode
The Normal mode provides the same measurement and viewing options as Store mode
without storing any data. Measured samples can be compared to stored references with or
without tolerance values applied. If tolerance values are applied to the reference, pass/fail
indication appears on the instrument. Sample data can also be viewed under various color
space and illuminant/observer combination. Normal mode displays absolute/difference
data and pass/fail indication for all five angles.
1. Use Tab Up or Tab Down to highlight Normal.
–MAIN MENU–
Store
Normal
References
Calibrate
Config.
MA48
——————
XXXX
******
2. Press Enter to access the Normal mode.
The information displayed depends upon whether tolerancing is used and which color
space (absolute or difference) is selected.
Reference: 1
L
*
a
*
b
*
D65/10
29.67 -3.92 -23.67
29.72 -3.66 -23.99
30.08 -3.68 -24.69
32.94 -3.24 -25.59
29.67 -3.92 -23.67
Without Tolerancing Applied
Reference: 1
L
*
a
*
b
*
T D65/10
PASS
PASS
FAIL
PASS
PASS
With Tolerancing Applied
3. If you want to compare stored reference data to measured samples, and Auto Reference
is not activated in the Configuration, you must manually select a reference.
Press Enter to activate the editor. Up/down arrows appear at the left.
Press Tab Down to page forward through the reference numbers, or press Tab Up to
page backward through the list.
Press Enter to select the displayed reference number.
4. Position the instrument over the sample and take the measurement. You may have to press
Read to complete the measurement if the instrument is configured to do so.
5. Use Tab Up or Tab Down to highlight color space (e.g. ∆L*a*b*) or illum/obs
(e.g. D65/10).
6. Press Enter to page through the available color space or illuminate/observer options.
Data is automatically updated to the selected option.

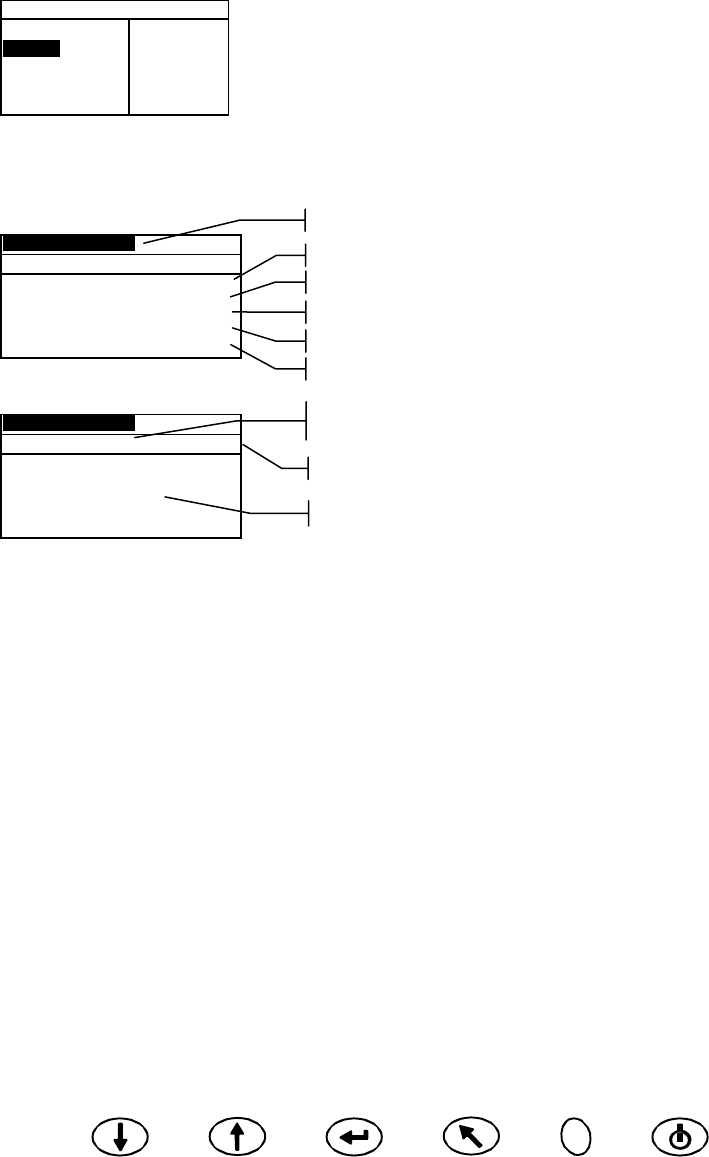

Current reference selected
15° sample data
25° sample data
45° sample data
75° sample data
110° sample data
Pass/fail indication when tolerance are applied
Selectable color space and illuminant/observer
Indicates difference data is available to view
for the measurement (see Store Mode)
