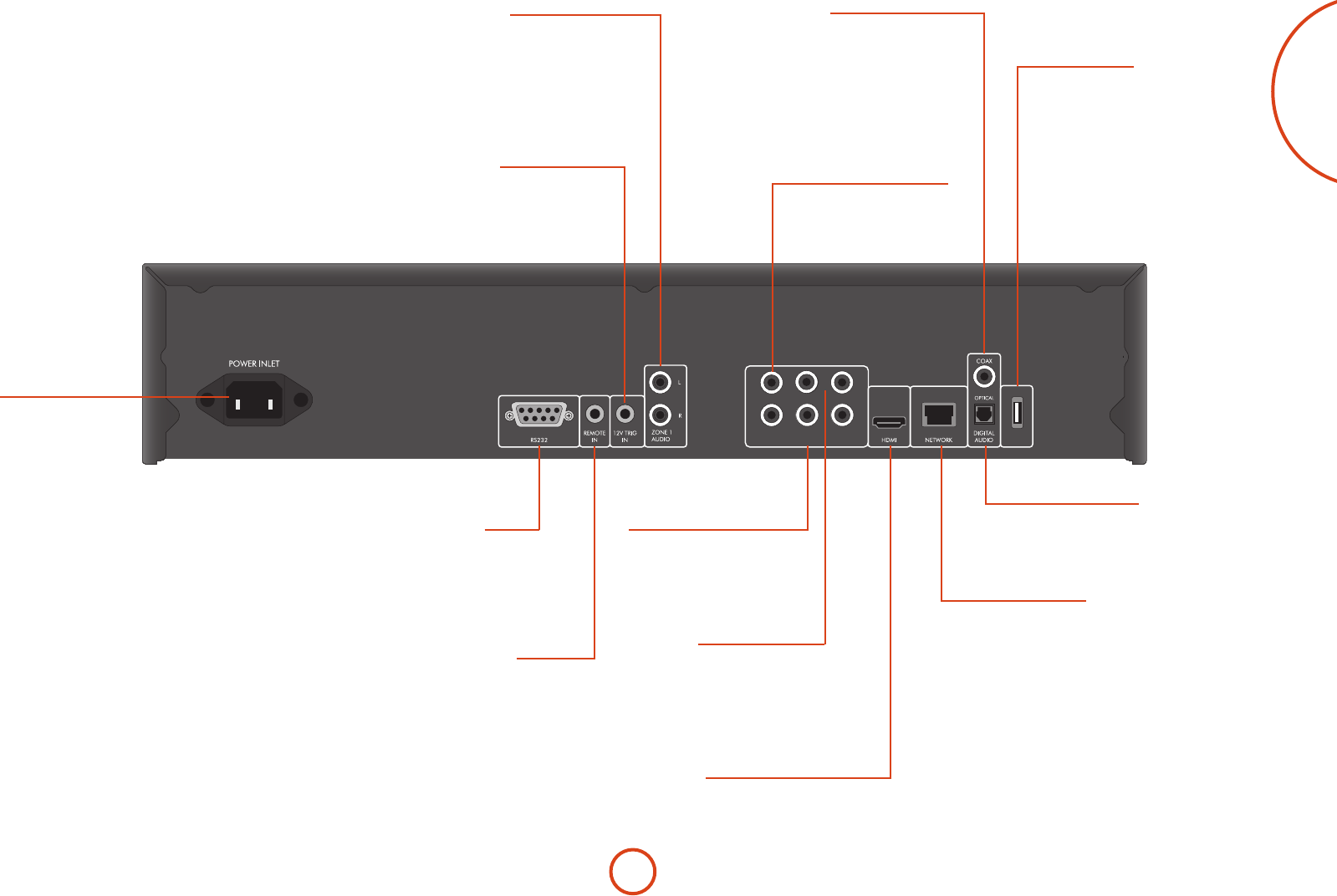

VIDEO OUT / AUDIO OUT
VIDEO
Y Cb/Pb Cr/Pr
L
USB
R
Coaxial digital output
Use this socket if you are using an AV receiver
with a coaxial digital input. Connect to the
digital input using a suitable 75Ω screened cable.
CAUTION: Never connect the digital output
socket to a conventional audio input.
Composite video output
Connect this output to your display
if the display does not support any
other connection types.
USB connection
Insert USB ash memory devices
here. USB memory can be used
to save downloaded content. e
BDP300 can also play certain digital
les stored on USB memory drives:
see page E-8.
HDMI digital video output
Connect this output to your display or AV
receiver if available for the best digital video
and audio connection: see page E-7 .
Network connection
Connect this socket to a port on your network
router using an Ethernet patch cable: see
page E-9. An internet connection enables
interactive content for BD-Live discs. For
setup details, see ‘Network’ on page E-21.
Zone 1 audio output
Connect these to your amplier’s CD (or other
line-level) input using suitable high quality
interconnect cables. Ensure that the le and
right audio outputs from the BD player are
connected to the same le and right inputs on
your amplier.
Component video output
If your display does not support
HDMI but has a component
input (Y, Pb, Pr), connect it to
this video output.
Power inlet
Connect the correct
mains cable here.
Optical digital output
Use this socket if you are using an AV
receiver with an optical digital audio input.
Remote in
is allows remote-control signals to be received
by the BDP300 if the remote sensor is covered
(or otherwise not ‘visible’ to the remote-control:
see page E-4 for more information.
RS232
is connection allows for remote
control from a third-party home
automation system or computer: see
page E-4 for more information.
12V trigger input
is socket allows the BDP300 to be switched
in and out of standby mode by an amplier
(or another item of AV equipment) with a
12V TRIG OUT function: see page E-4.
L, R audio output
Use this analogue output (L, R),
to provide audio for use in your
AV receiver’s Zone 2. It can also be
used to connect a recording device
or headphone amplier.
