AVSW-HDMI2X1A
Chapter 2: Overview
2.4.2 AVSW-HDMI4X1A

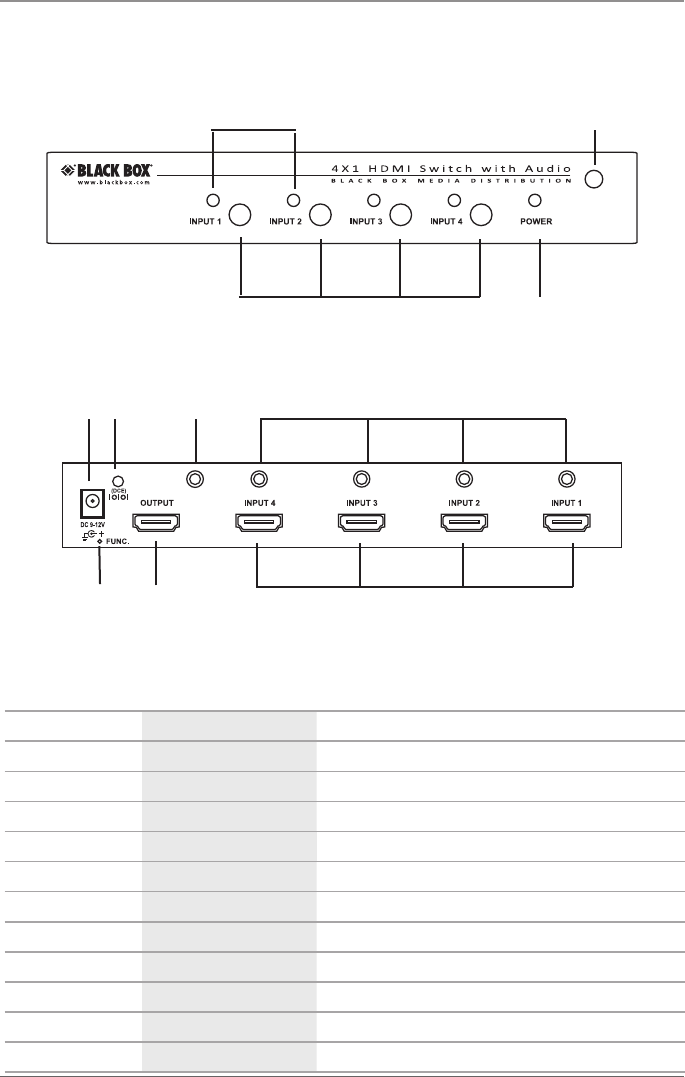

Figures 2-3 and 2-4 show the 4-Port Video Switch with Audio’s front and back
panels. Table 2-2 describes its components.
1
2
3
4
Figure 2-3. AVSW-HDMI4X1A front panel.
5 6 7 8
11 9 10
Figure 2-4. AVSW-HDMI4X1A back panel.
Table 2-2. Receiver front- and back-panel components.
Number Component Description
1 LEDs Light when inputs are connected.
2 Push buttons Press to select input 1, 2, 3, or 4.
3 LED Lights when power is on.
4 Sensor IR sensor
5 Barrel connector Connect to power.
6 DCE Serial control port.
7 3.5-mm connector Links to audio out.
8 3.5-mm connectors Link to audio inputs 1, 2, 3, and 4.
9 HDMI connector Connects to HDMI output.
10 HDMI connectors Connect to HDMI inputs 1, 2, 3, and 4.
11 Function button Adjusts video signal strength.
