AVSW-HDMI2X1A
Chapter 4: Operation
4.3 Serial Control (AVSW-HDMI2X1A and AVSW-HDMI4X1A Only)
The video switch’s built-in serial interface allows users to control the switch
through a PC, serial controller devices, or home theater system.
The controller’s serial port should be configured as shown below.
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
To select a source device via serial interface, select the number that corresponds to
the port it is connected to as shown in Figure 4-4.

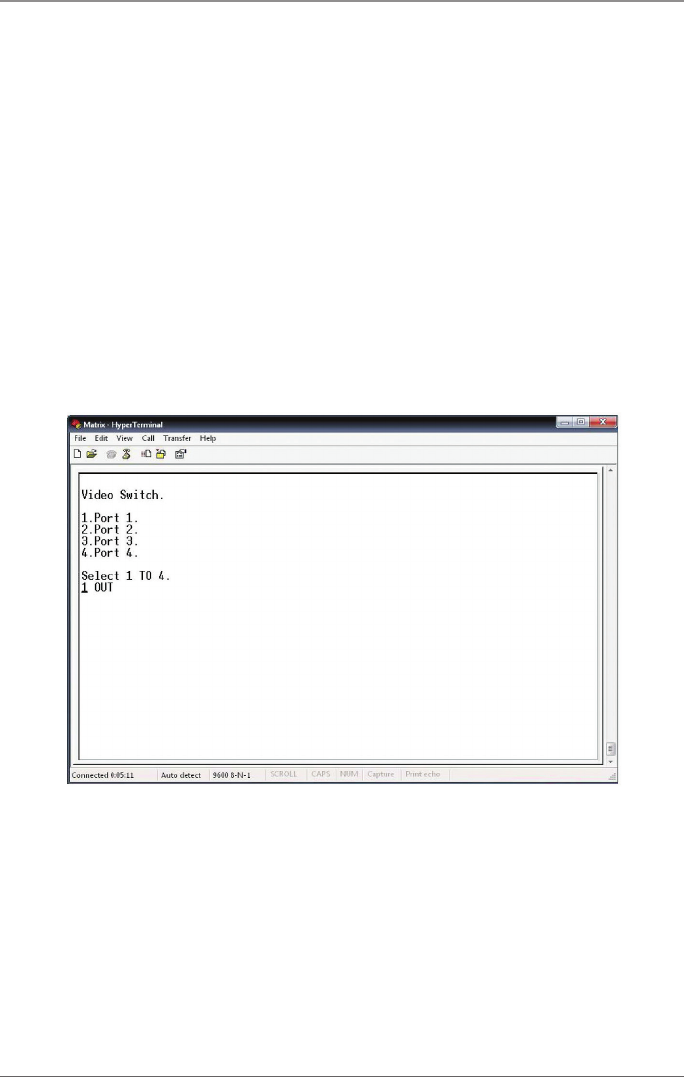

Figure 4-4. Select video port screen.
NOTE: Use a DB9 to 2.5-mm cable (see Figure 4-5) for serial connection.
