VRX766VD
English
INSTALLATION AND WIRE
CONNECTION MANUAL

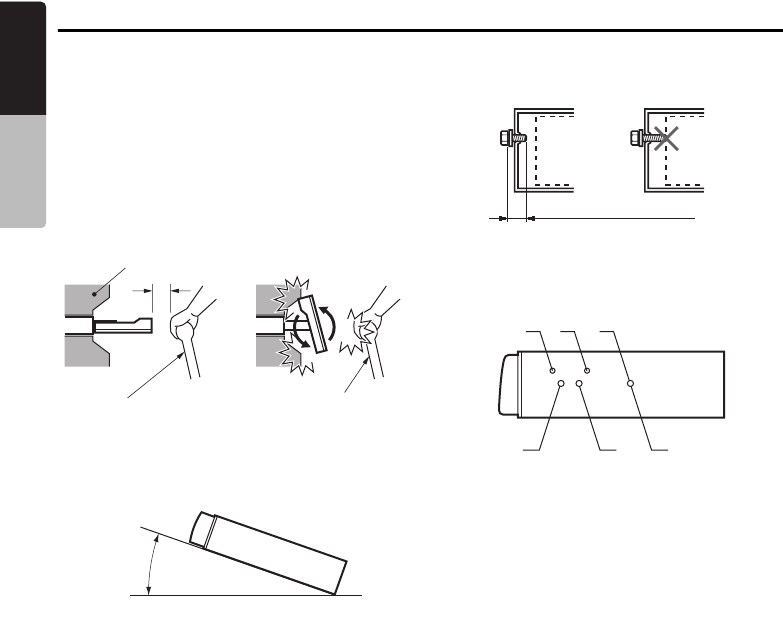

4. CAUTIONS ON INSTALLATION
1. Prepare all articles necessary for installing the
main unit before starting.
2. This model features a liquid crystal panel that
slides forward (shell loading system).
On some types of cars, the liquid crystal panel
may make contact with the dashboard or shift
lever, in which cause it cannot be installed.
Before installing, check that the unit will not
hamper operation of the shift lever or obstruct
your view before selecting the installation
location. (Figure 2)
3. Install the unit within 30° of the horizontal
plane. (Figure 3)
4. If you have to do any modification on the car
body, such as drilling holes, consult your car
dealer beforehand.
5. Use the included screws for installation. Using
other screws can cause damage. (Figure 4)
6. The source unit has mounting screw holes for
NISSAN (N marks) and TOYOTA (T marks)
vehicles.
Dashboard
Shift lever
Shift lever
(check that it does not
touch the LCD.)
Figure 2
Max. 30˚
Figure 3
Chassis Chassis
Damage
Max. 8 mm (M5 screw)
Figure 4
T
NNT
NT
Figure 5
