INSTALLATION AND WIRE
CONNECTION MANUAL
5. INSTALLING THE MAIN UNIT
Universal Mount
1. Place the universal mounting bracket into the
instrument panel, use a screwdriver to bend
each stopper of the universal mounting
bracket inward, then secure the stopper as
shown in Figure 6.
2. Wire as shown in Section 8.
3. Insert the main unit into the universal
mounting bracket until it locks.
4. Mount the outer escutcheon so that all the
hooks are locked.
Note:
*1 Some car models require special mounting kits
for proper installation. Consult your Clarion
dealer for details.
*2 Fasten the front stopper securely to prevent the
main unit from coming loose.

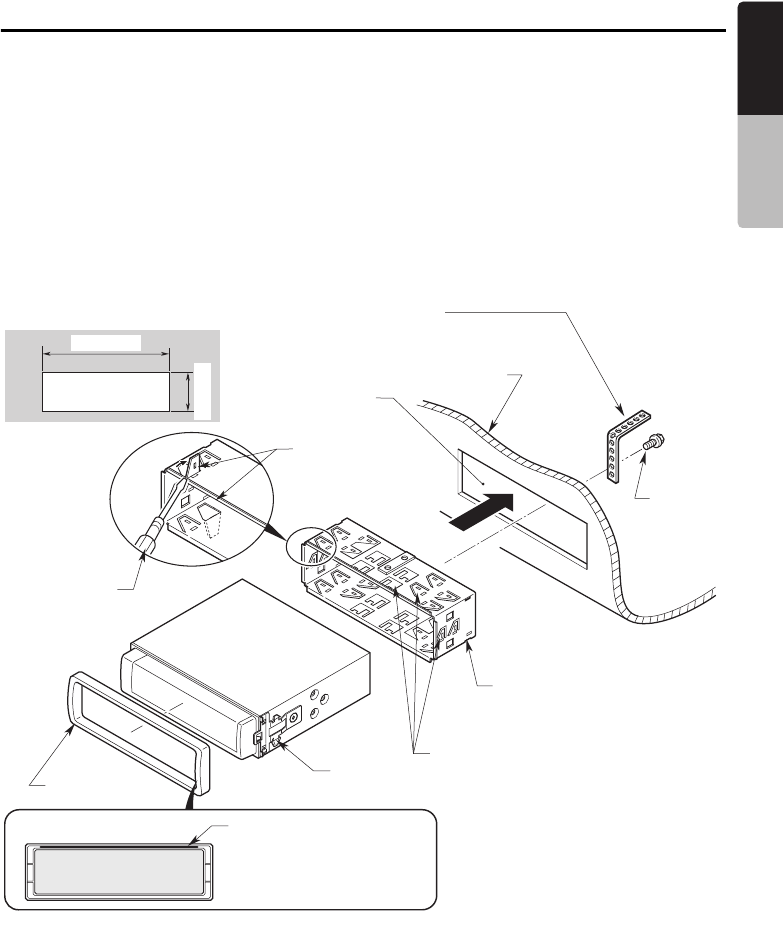

Main unit
Figure 6
• Console opening dimensions
Hole
182 mm
53 mm
Screwdriver
Stoppers
Hole
Instrument panel
Universal mounting bracket
Stoppers
2-Spring
Outer escutcheon
Note:
Set the outer escutch-
eon so that its metallic
part on the back side
fits the upper edge of
the main unit.
Hexagonal
bolt
Strap
*
This part is not provided.
