INTRODUCTION
17

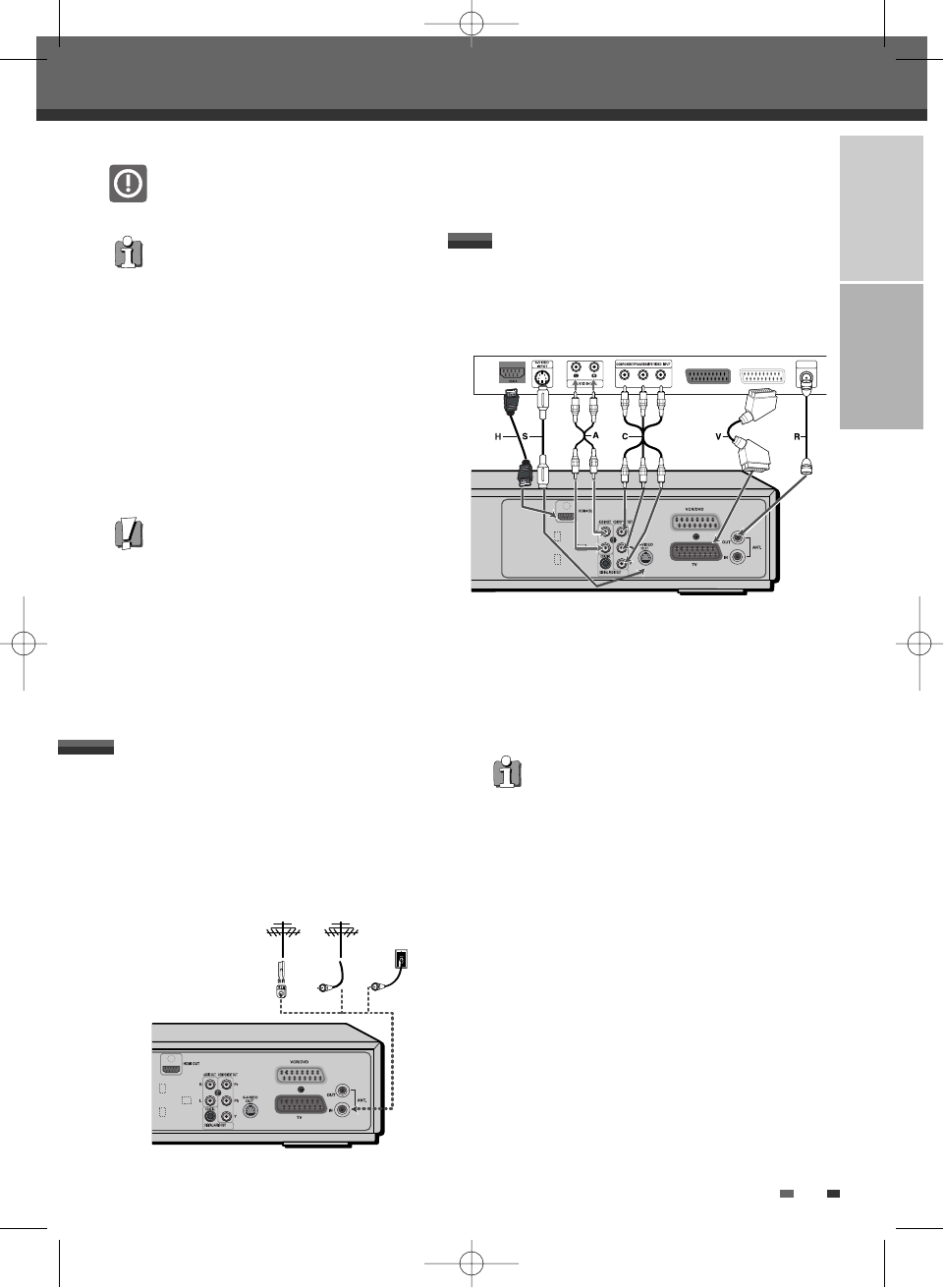

Connecting a TV
Choose one of the following TV connections,
depending on the capabilities of your equipment.
RF Connection
Connect the ANT OUT (TO TV) jack on the DVB-T
VCR/DVD Recorder to the antenna in jack on your
TV using the supplied 75-ohm RF cable (R).
Scart Connection
1
Plug a scart cable into the scart socket TV
(EURO AV1) at the back of the DVB-T VCR/DVD
Recorder and the corresponding scart socket at
the back of the TV set. (V)
2
Plug a scart cable into the top scart socket
VCR/DVD (EURO AV2/DECODER) at the back of
the DVB-T VCR/DVD Recorder and the
corresponding scart socket at the back of the
Decoder.
Connections
Connections
Connecting Antenna/Cable
1
Disconnect the antenna/cable from the rear of
your TV.
2
Connect this cable to the jack marked ANT IN
(FROM ANT.) on the rear panel of the DVB-T
VCR/DVD Recorder.
• There are a variety of ways to connect the
DVB-T VCR/DVD Recorder to your TV and other
equipment. Use only one of the connections
described below. Whichever TV connection
you use will work with all input sources.
• Please refer to the manuals for your TV, VCR,
stereo system, or other devices as necessary to
make the best connections.
• For better sound reproduction, connect the
DVB-T VCR/DVD Recorder’s AUDIO OUT jacks
to the audio in jacks of your amplifier, receiver,
stereo, or audio/video equipment. See
‘Connecting an Amplifier/Receiver‘ on page 19.
Caution
• Make sure the DVB-T VCR/DVD Recorder is
connected directly to the TV, and the TV is set
to the correct video input.
• Do not connect the DVB-T VCR/DVD Recorder’s
AUDIO OUT jack to the phone in jack (record
deck) of your audio system.
• Do not connect the unit through a VCR. Video
signals fed through VCRs may be affected by
copyright protection systems and the picture
will be distorted on the television.
Antenna
Antenna
Cable TV
Wall Jack
Flat Wire
(300ohm)
300/75ohm Adapter
(Not supplied)
OR OR
Rear of DVB-T VCR/DVD Recorder
ANTENNA
INPUT
Y
Pb
Pr
Rear of DVB-T VCR/DVD Recorder
Rear of TV
This set doesn’t have a modulator output. However
it still supplies the RF loopthrough Output.
To enable you to set up your new DVB-T VCR/DVD recorder, it must be connected it to your TV
using either a SCART cable or a COMPONENT (or S-Video) and associated AUDIO cable. If a unit has
HDMI connection, you can use a HDMI cable as well.
CONNECTIONS
