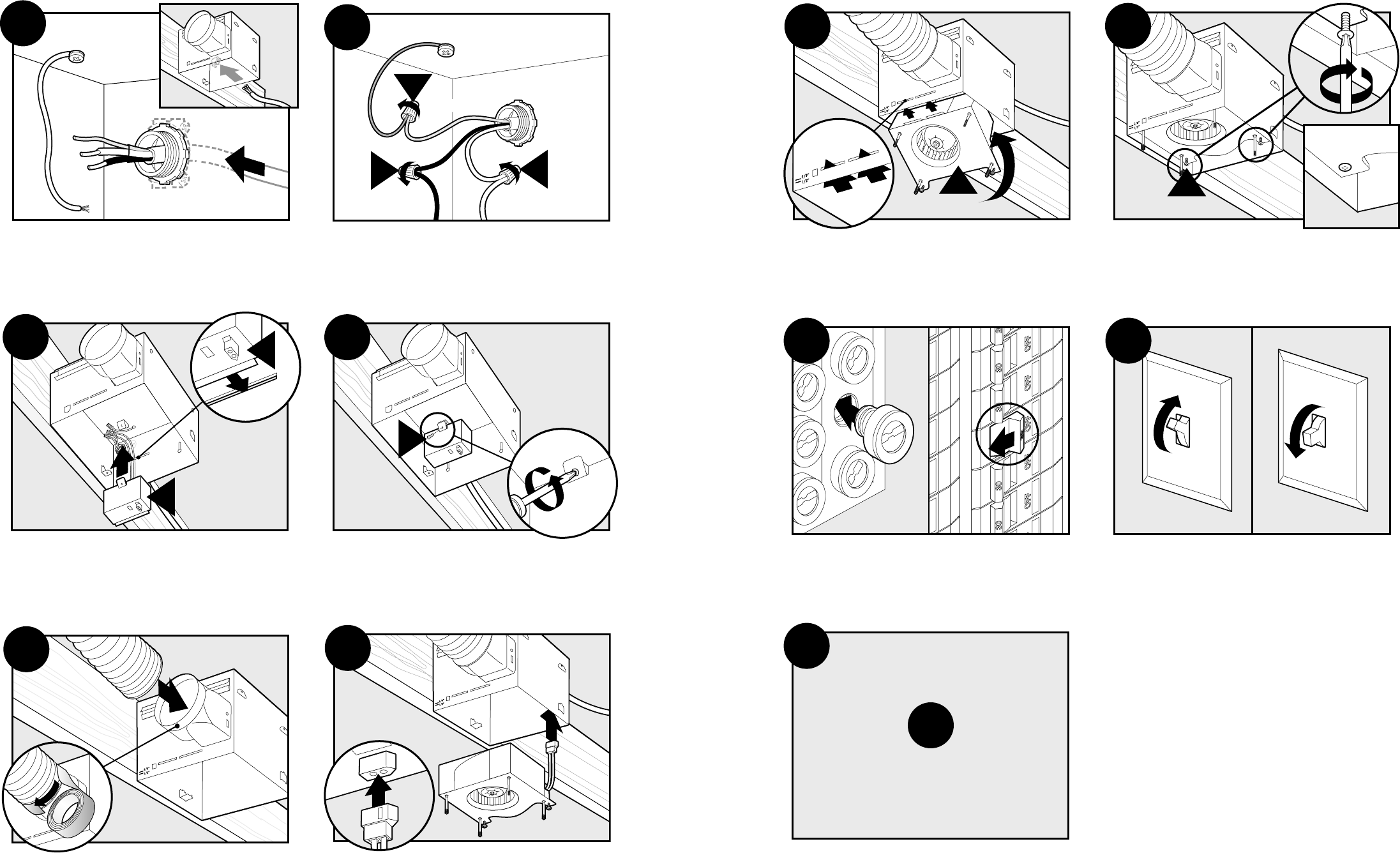

Pull wires through the strain relief.
A13
A
A
A
Green
Black White
Bare Copper
Ground
A14
B
D
Connect wires as shown.
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
A15
F
1
2
F
•
A16
G
Tighten the wiring cover plate screw.
0
A17
A18
I
A20
Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched
between the motor and the housing.
Secure the motor by tightening the 2 screws.
A21
ON
OF
F
A22
Test the motor. If the motor does not run, check the plug
connection.
Turn on the power source.
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may need
to be purchased.
Connect wiring from the motor to the wiring cover plate.
6
7
A23
E1
Go to step
on page 17
to attach grille.
