INDEX

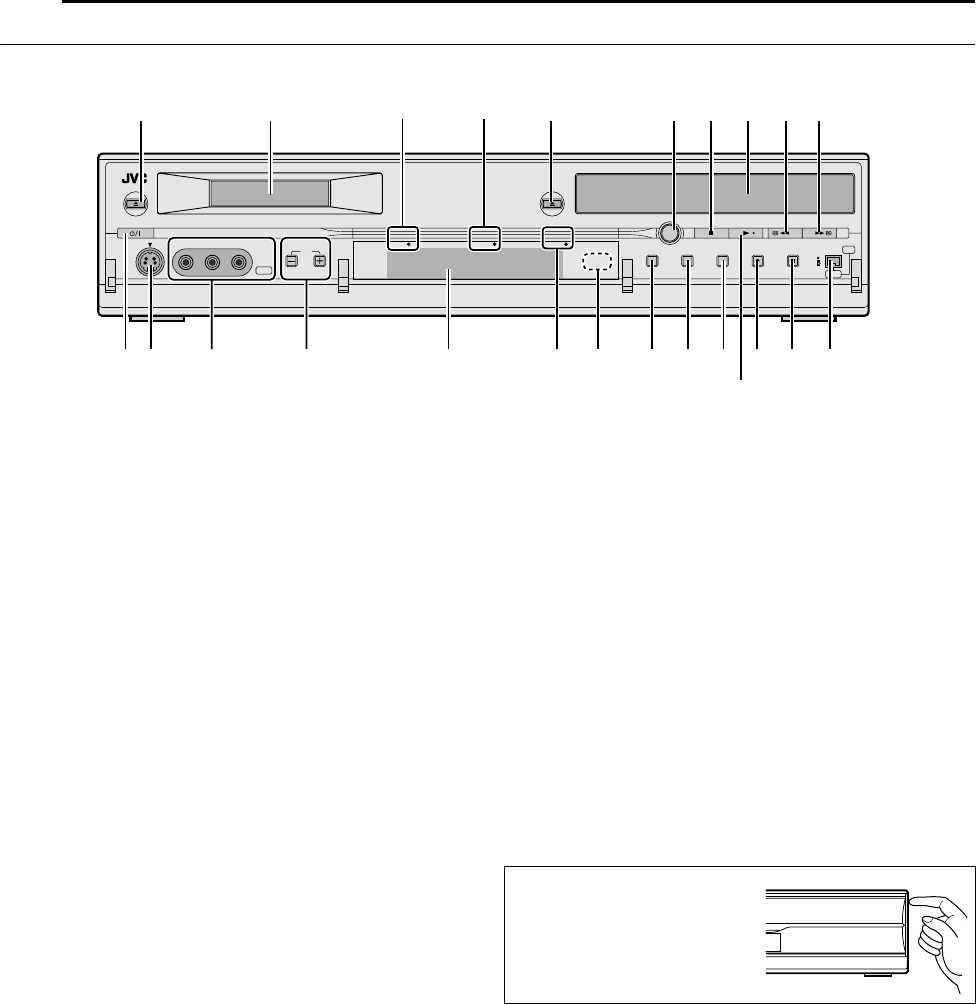

Front View
A Eject Button (M) (DV) A pg. 39
B Mini DV Cassette Loading Slot
C DV Lamp (DV) A pg. 39
DV Recording Lamp (R)
D HDD Lamp (HDD) A pg. 20, 35
HDD Recording Lamp (R) A pg. 35
E Open/Close Button (M) (DVD) A pg. 8
F DV/HDD/DVD Select Button (DV/HDD/DVD SELECT)
A pg. 22, 35, 39
● This button will not function during navigation mode or set up
mode.
G Stop Button (o) A pg. 22, 37
H Disc Tray
I Reverse Search Button (O) (HDD & DVD deck) A pg. 23,
42
Rewind Button (O) (DV deck) A pg. 39, 40
J Forward Search Button (N) (HDD & DVD deck) A pg. 23,
42
Fast Forward Button (N) (DV deck) A pg. 39, 40
K STANDBY/ON Button (A)
L S-video Input Connector [S-VIDEO] A pg. 61
M Video/Audio Input Connectors
[VIDEO/AUDIO ((MONO) L/R)] A pg. 61
N Programme Buttons (PR +/–) A pg. 32, 35
O Front Display Panel A pg. 12
P DVD Lamp (DVD) A pg. 20, 22
DVD Recording Lamp (R) A pg. 32
Q Infrared Beam Receiving Window
R Insert Button (INSERT) A pg. 66
S Audio Dubbing Button (A.DUB) A pg. 65
T Recording Mode Button (REC MODE) A pg. 32, 35
U Play Button (I) A pg. 22, 37
V Record Button (R) A pg. 32, 35
W Pause Button (W) A pg. 22, 37
X DV Input/Output Connector [DV IN/OUT(A*)] A pg. 59
● [DV OUT] is available for DV deck only.
* A (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The
A logo is used for products compliant with the
i.Link standard.
STANDBY/ON
DV/HDD/DVD
S-VIDEO VIDEO
(MONO)
L–AUDIO–R
DV– HDD– DVD–
DVIN/ OUT
INSERT
SELECT
A.DUB RECMODE
PR
F–1
DV
K
C
D
FEGHIJBA
LOPQRSTV
U
WXNM
To access covered connectors, pull
and open the cover.
