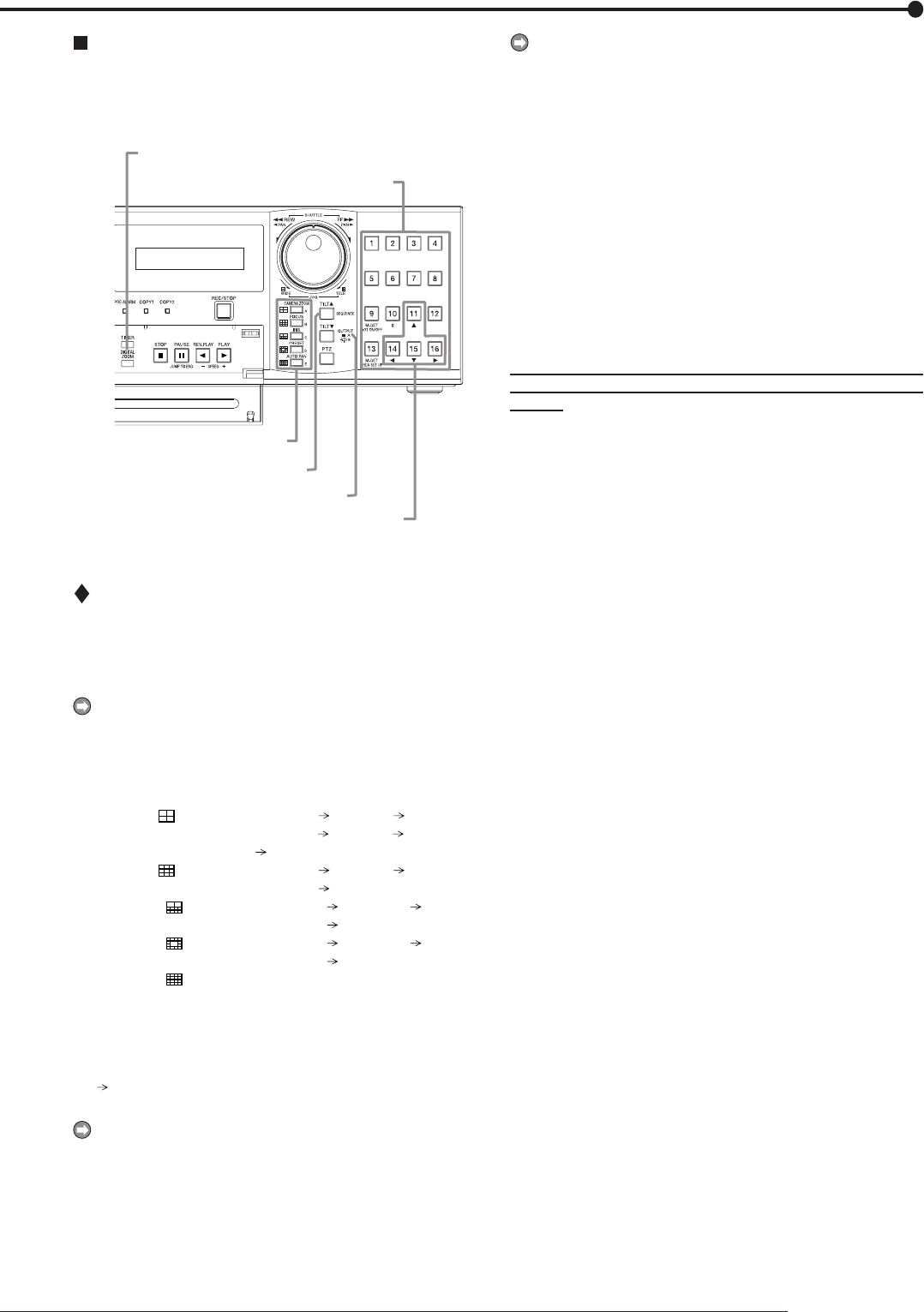

Basic operations
Basic multiplexer functions
This function is used to activate multiplexer functions using
the buttons on the front panel.
Camera number buttons
DIGITAL ZOOM button
SPLIT screen buttons
Move buttons
SEQUENCE button
OUTPUT A/B button
Multiplexer buttons
1. Camera number buttons (1 to 16)
Displays the picture supplied from the cameras connected
to CAMERA IN terminals 1 to 16 on the rear panel in the
single screen display.
Pictures can be displayed even if the camera is not set to
record.
2. SPLIT screen buttons
Each time the button is pressed, displays the split screen
in the following order.
SPLIT4 (
) button : SPLIT 4a SPLIT 4b
SPLIT 4c SPLIT 4d SPLIT 4a
• • •
SPLIT9 (
) button : SPLIT 9a SPLIT 9b
SPLIT 9a • • •
SPLIT10 (
) button : SPLIT 10a SPLIT 10b
SPLIT 10a • • •
SPLIT13 (
) button : SPLIT 13a SPLIT 13b
SPLIT 13a • • •
SPLIT16 (
) button : SPLIT 16 screen
3. SEQUENCE button
Displays the sequential screen in the split screen or
the single screen display. Make the detailed settings of
this display in the <Multiplexer Setting> (Setup Menu
System). Sequential display does not appear during
playback.
The sequential display is cancelled when you press the
SEQUENCE button again or display a different type of
split screen or single screen.
Using the basic multiplexer functions
Pressing the OUTPUT A/B button on the front panel
switches the multiplexer video output. When OUTPUT A is
selected, the button light indicator is off. When OUTPUT
B is selected, the button light indicator is on, and camera
number buttons, SPLIT screen buttons, and SEQUENCE
button are operated for the monitor screen connected to
the OUTPUT B connector. Pressing the OUTPUT A/B
button again switches the multiplexer output to OUTPUT A.
4. DIGITAL ZOOM button
Pressing this button in single screen mode displays the
screen at 100%. At this time, the magnification centre
point (X) appears. Pressing the button again switches
the magnifi cation to 200%, and then 400%. By pressing
the MOVE buttons, the centre point moves vertically or
horizontally.
When the DIGITAL ZOOM button is pressed, camera
number buttons 11, 14, 15, and 16 move the “X” in the
screen.
