Copying the recorded data (continued)
Field Reverse
Click to display a still picture one eld before.
Stop
Click to stop playback. Audio, if recorded, is played back
after the stop when [Not Synchro.] is selected and the
audio command has been enabled.
Field Advance
Click to display a still picture one eld after.
Playback
Click to playback the picture in the forward direction.
Forward Search
Click to playback the picture in the forward direction with
a higher speed than normal playback. The speed changes
from X1 to X2, X4, X8 and back to X1 at every press of
this button during playback.
to Camera
(These buttons are displayed when the
button
located on the lower right of the Forward Search button
is pressed.) Click to display the picture of the camera
corresponding to the number of the button. The indicator
turns green for the camera number which is being
displayed, and it turns black for the camera number which
is not being displayed. The picture is not displayed even
when the indicator turns green if the data has not been
copied for that camera number.
Refresh Speed
(This slider is displayed when the
button located on the
lower right of the Camera button is pressed.) Drag with
the mouse to adjust the playback speed. When setting
to [Fast], it may disrupt the operation depending on the
performance of the personal computer used. Use this
setting with the proper picture playback speed suitable to
the personal computer used.
The playback speed slider may not be changed at a
constant interval when the data which is additionally
copied is played back.
Output
(This is displayed when the
button located on the
lower right of the Refresh Speed slider is pressed.)
[Not Synchronized playback]
Put a checkmark to [Output] on the FSMPlayerLite panel
and select a playback channel from the drop-down menu.
Then select [Not Synchro.] in the [Playback] field. Play
back the copied data and stop at a point where you want
to hear the audio. The audio data around the stop point
are played back. You can change the duration of audio
playback in 3 levels using the slide bar on the right side.
The actual duration of audio playback varies depending
on the frame rate of the recorded picture. Adjust the
duration for every data to be played back.
[Synchronized playback]
Select [Synchro.] in the [Playback] field. You can play
back simultaneously the audio and picture of the data
downloaded in blocks via network or the data copied
together with audio by a recorder. Only one playback
channel is displayed in this case. Audio is not played back
during other than normal playback (such as fast-forward
playback and reverse playback). The [LipSync] slide bar
should be adjusted according to the PC to be used and
the recording status of data to be played back. In some
cases, there may not be found an optimum position where
the picture and audio synchronize with each other.
Playback software
When copying the data to CD/DVD or USB memory, the
needed PC playback software is automatically copied on to
the disc. Refer to the following for using the software.
System requirements
OS: Microsoft Windows 2000 or Windows XP.
CPU: IBM PC/AT compatible with an Intel Pentium series
processor of at least 500 MHz.
RAM: 256 MB or more.
HDD: System drive with unused space of at least 200 MB.
Display device: XGA (1024 pixels x 768 pixels) or higher.
Starting up the application software
step
1. Load the CD/DVD/USB memory which has been
used for copy to the personal computer.
step
2. Double-click the icon of the disc to open.
step
3. Start up the application software.
Double-click the “FSM Player Lite.exe.” The
application software starts up and the operation
panel appears.
When the picture cannot be loaded, use the
[Folder] command in the [File] menu to select
the picture folder to be played back.
You can open the FSMPlayerLite panel in 4 stages by
clicking
on the right side. In the rst stage, you can
select playback, search and bookmark operations. In the
second stage, you can select a camera to display. In the
third stage, you can adjust playback speed (reducing
only) and in the fourth stage, you can make various set-
tings for audio playback.

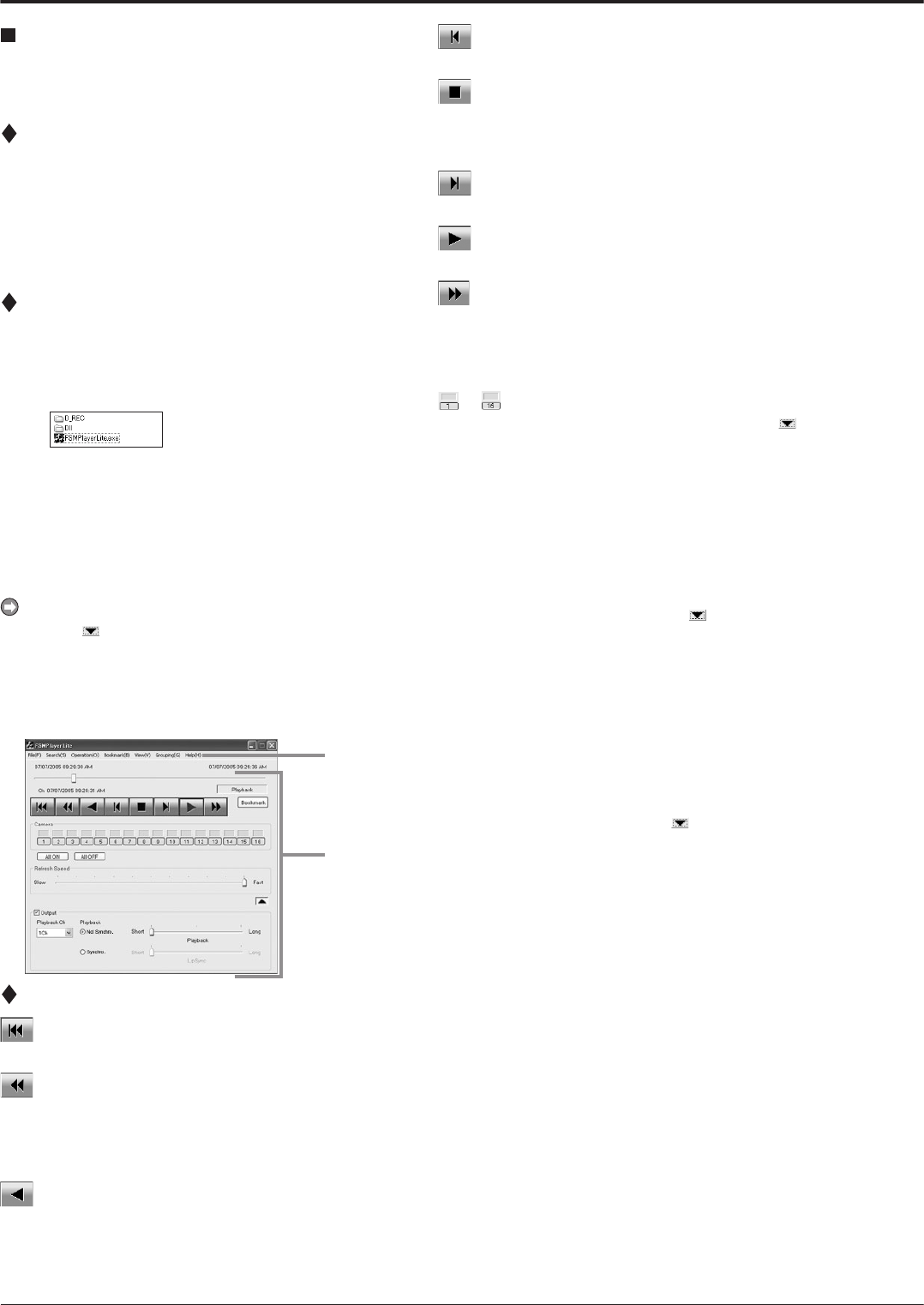

Operational panel
Rewind
Click to jump to the head of the recording data.
Reverse Search
Click to playback the picture in the reverse direction with
a higher speed than normal playback. The speed changes
from X1 to X2, X4, X8 and back to X1 at every press of
this button during reverse playback.
Reverse Playback
Click to playback the picture in the reverse direction.
Menu
Operational
Panel
