STEP 8 High Power Audio AC Outlet Hookup
Isolated Monster Clean Power
™
Stage 5 Ultra-High Current Audio Filter: Optimized for maximum noise
rejection, while providing maximum current to high-current audio components.
NOTE: These outlets are designed to deliver maximum current to power hungry components such as amplifiers and receivers.
You may want to program these outlets to be “switched on after delay” (see page 6, Figure 4) to enable sequential
power activation. This way, power amplifiers are turned on last and turned off first to prevent speaker “thump”. See
“STEP 2: Outlet Programming” (page 6) for details.
A) Attach a Monster Power
®
ID label to each component’s power cord before you plug it into the appropriate
color-coded PowerSource outlet.
B) SUBWOOFER AMP & MAIN AMP: Plug the power cord of any separate subwoofer amp or main amp
(not preamplifiers) into the PowerSource's corresponding SUBWOOFER AMP and MAIN AMP outlet.
C) SURROUND AMP & A/V RECEIVER: Plug your dedicated surround amplifier's or receiver’s power cord into
the corresponding SURROUND AMP and AV/RECEIVER outlet.

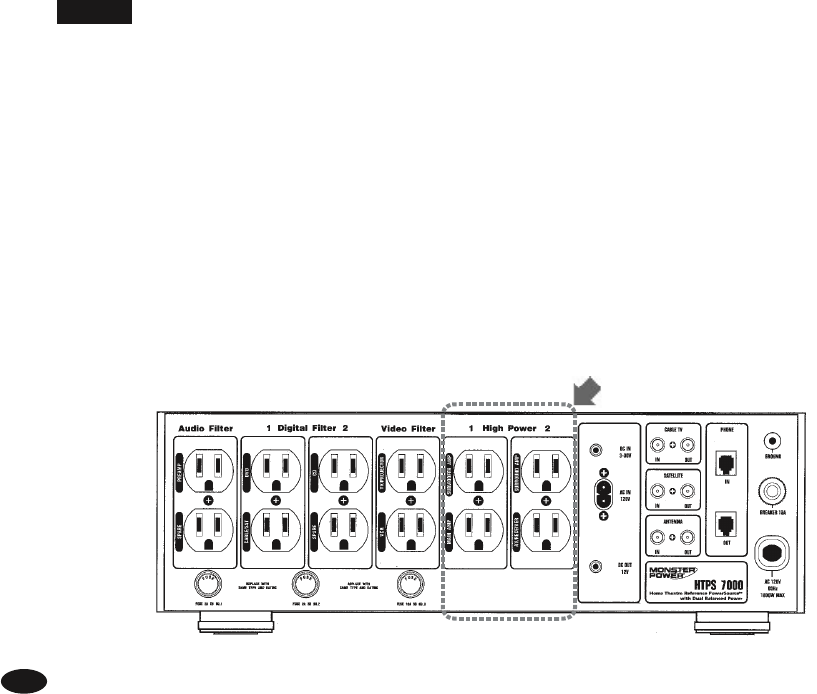

Illustration of rear panel showing High Power 1 and 2
