NOTES
Refer to the owner’s manual of your audio system for operating instructions.
• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before
making any connections.
• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise,
the speakers may be damaged by a sudden high volume sound.
•Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be
damaged.
CONNECTING TO THE SURROUND SOUND SYSTEM
ENJOYING DOLBY DIGITAL SOUND
You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic, and 2 Channel Digital Stereo.
DOLBY DIGITAL
Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in
the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD player to a 5.1
channel receiver equipped with a Dolby Digital decoder or Dolby Digital processor.
To DIGITAL OUT
(COAXIAL or OPTICAL)
75 ohm coaxial cable or
Optical cable
To S-VIDEO OUT or VIDEO OUT
S-Video cable or Video cable
Receiver equipped
with a Dolby
Digital decoder
To digital audio
input

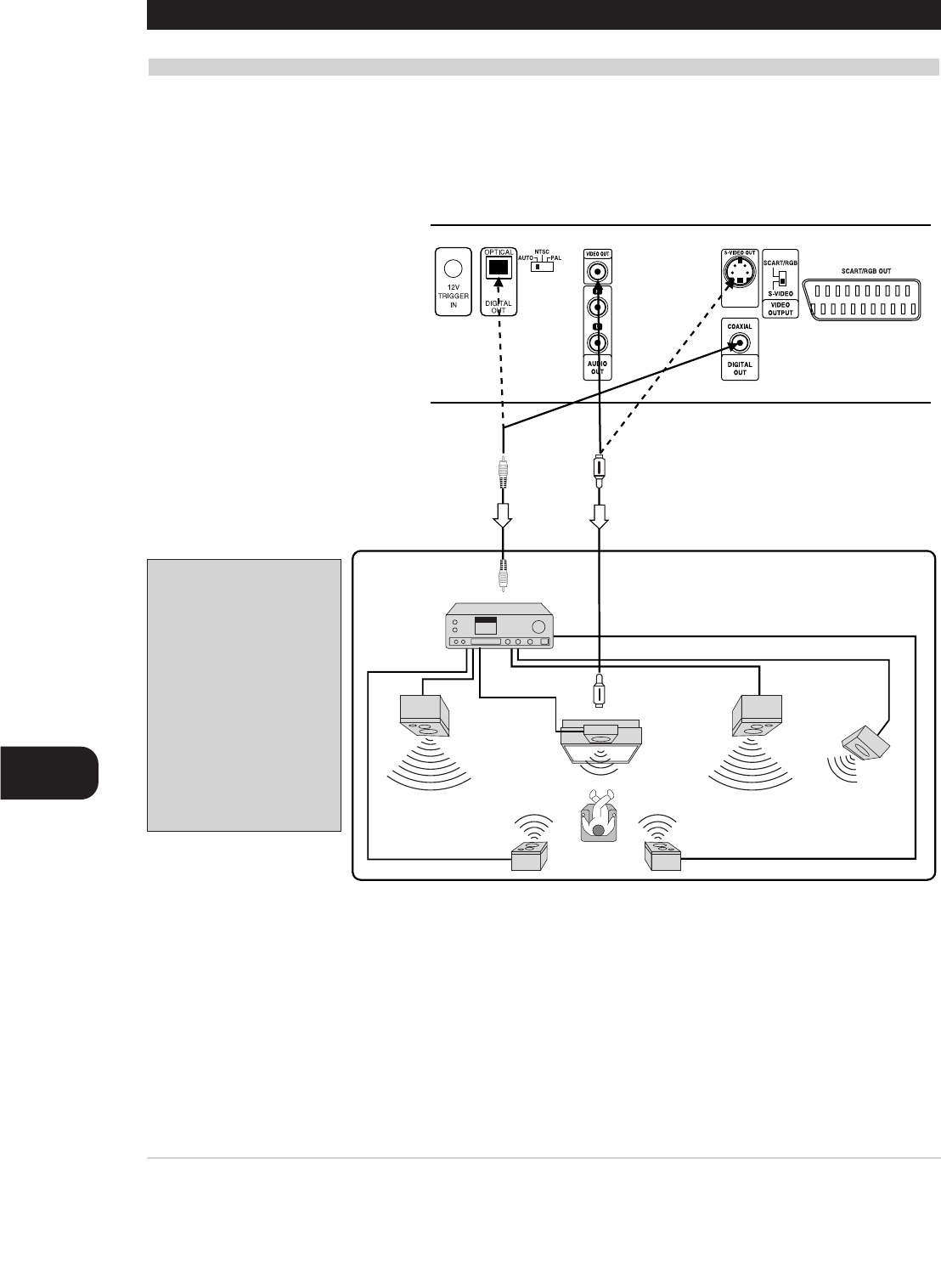

Connection example
Front speaker (left)
To S-video Input or
Video Input
Center speaker
Front speaker (right)
Sub woofer
Rear speaker (right surround)
Rear speaker (left surround)
To enjoy Dolby Digital sound
from this DVD player you
need the following:
• DVD recorded in Dolby Digital
• 5.1 channel receiver equipped
with a Dolby Digital decoder,
or Dolby Digital processor and
power receiver
•5 speakers and 1 sub woofer
To enjoy Dolby Digital sound
You need to select “Dolby
Digital” on the SETUP menu.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby
Laboratories. All rights reserved.
