CONNECTING TO THE SURROUND SOUND SYSTEM
ENJOYING 2 CHANNEL DIGITAL STEREO SOUND
You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a digital audio input and
speaker system (right and left front speakers).
To DIGITAL OUT
(COAXIAL or OPTICAL)
To S-VIDEO OUT
or VIDEO OUT
75 ohm coaxial cable or Optical Cable
To S-video Input
or Video Input

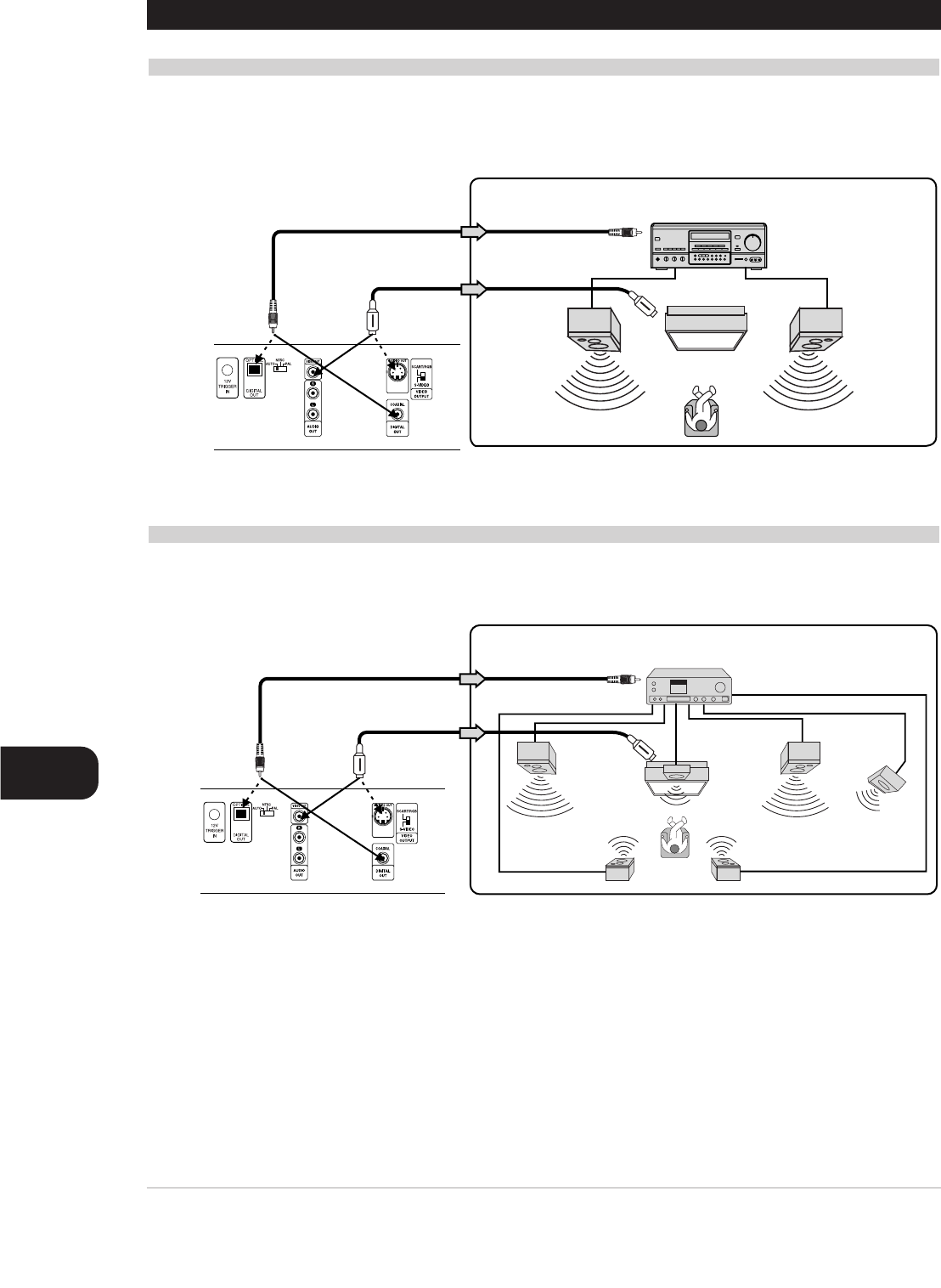

Connection example
Receiver equipped with a
digital audio input
To digital audio input
Front speaker
(left)
TV
Front speaker
(right)
To DIGITAL OUT
(COAXIAL or OPTICAL)
To S-VIDEO OUT
or VIDEO OUT
75 ohm coaxial cable or optical cable
To S-video Input
or Video Input
S-Video cable or
Video cable
Connection example
Receiver equipped with
a DTS decoder
To digital audio input
Front speaker
(left)
Center
speaker
Front speaker
(right)
Sub woofer
Rear speaker
(left surround)
Rear speaker
(right surround)
NOTES
• Refer to the owner’s manual of your audio system for operating instructions.
• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before
making any connections.
• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise,
the speakers may be damaged by a sudden high volume sound.
•Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be
damaged.
S-Video cable
or Video cable
ENJOYING DTS SOUND
•Your A/V Receiver or processor must be equipped with a DTS Decoder.
• The digital output (see selecting digital output page 21) must be set to “stream”.
• The disc must have a DTS soundtrack.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
