External Device Connection
[HDMI Connection]
HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a
single cable. It ensures that the content sent from the source to TV is of the highest possible resolution.
COMPONENT 1
PC-IN
COMPONENT 2
HDMI OUT
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select “PCM” for the digital audio output of the device connected or the HDMI audio setting. There may be no audio output if
you select “Bitstream”, etc.
• This TV only accepts signals compliant with EIA861.
[HDMI-DVI Connection]
If your video device has a DVI output jack, connect using a HDMI-DVI conversion cable.
COMPONENT 1
PC-IN
COMPONENT 2
DVI OUT
AUDIO OUT
RL
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
• An HDMI-DVI conversion cable requires a separate audio cable connection as well. As such, only the HDMI 1-IN jack can be used.
• Audio signals are converted from digital to analog for this connection.
• DVI does not display 480i image that is not compliant with EIA/CEA-861/861B.
5
Cables not included.
Please purchase the necessary cables at your local store.

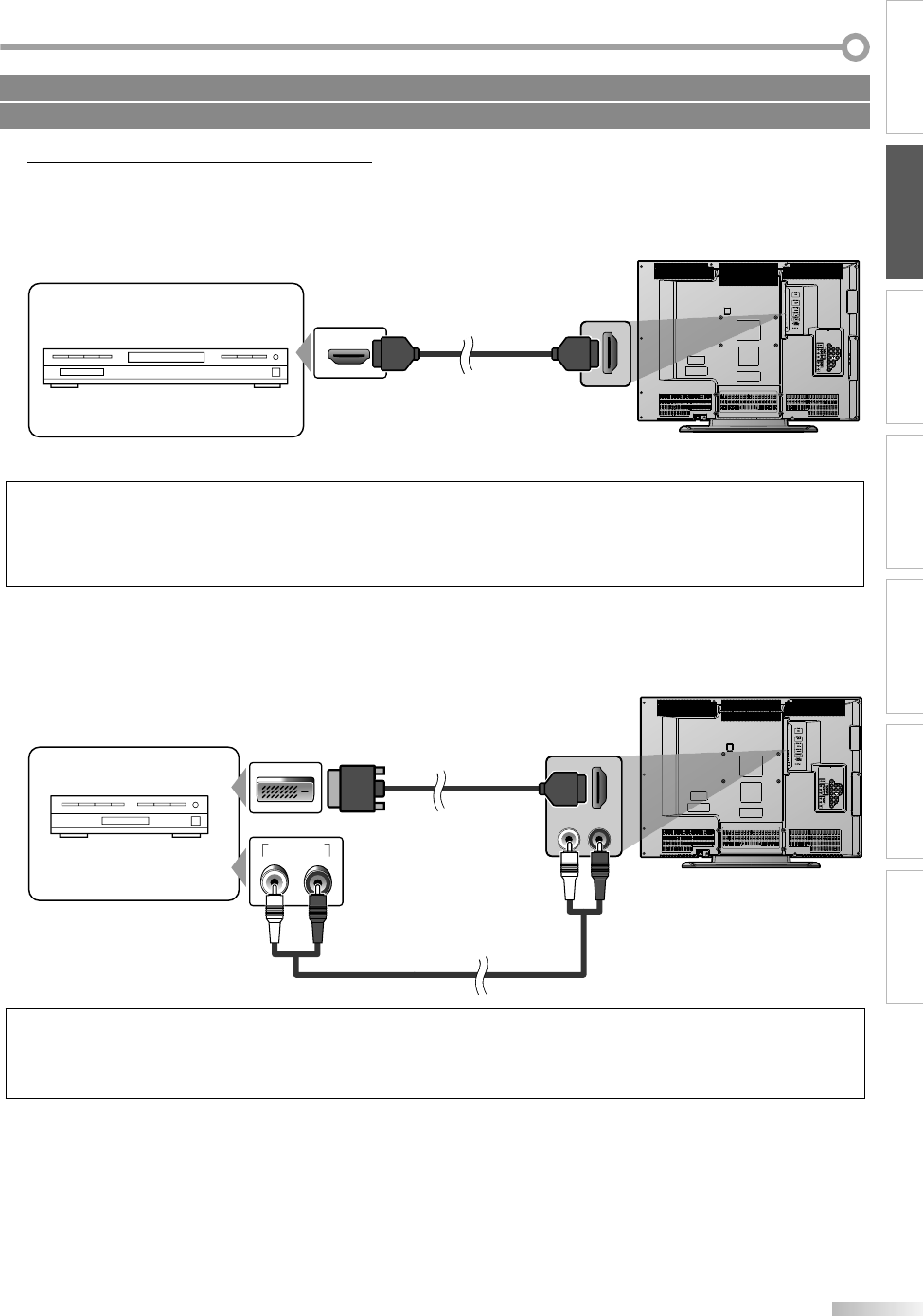

rear of this unit
To HDMI 1-IN or
HDMI 2-IN jack
HDMI cable
DVD player with the HDMI output jack
e.g.)
rear of this unit
To HDMI 1-IN jack
HDMI-DVI
conversion cable
To AUDIO IN jacks
e.g.)
Cable box or satellite box
with the DVI output jack
RCA audio cable
