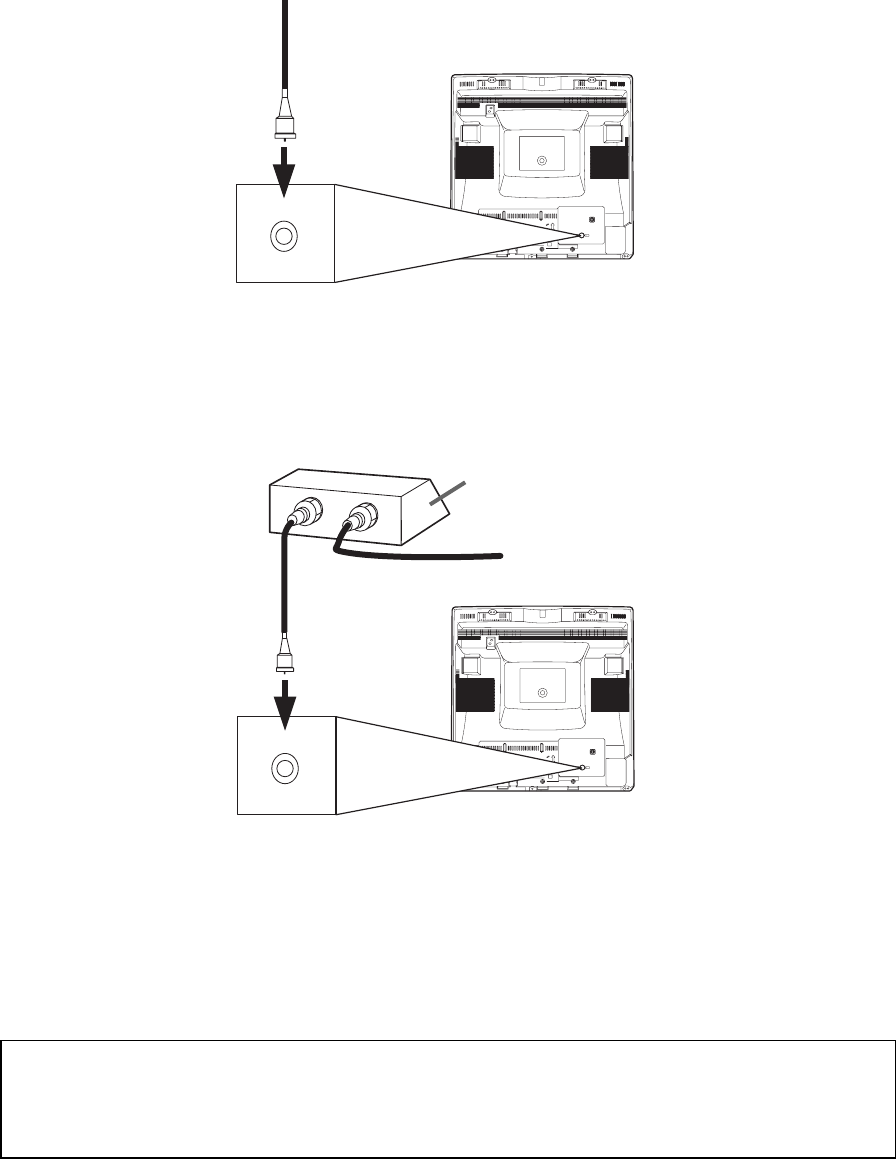

CABLE WITH CONVERTER/
DESCRAMBLER BOX OR SATELLITE BOX
If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic
connection shown here.
LR
AUDIO OUT
W
1
DIGITAL OUT
COAXIAL
IN
OUT
ANT.
ANT.
[Fig. 7]
From Cable System
or Satellite Dish
75-ohm Coaxial
Cable
(Not supplied)
Satellite Box or
Cable Box (Not supplied)
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects directly to your TV/DVD without a converter box.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building as close to the point of cable entry as practical.
LR
AUDIO OUT
W
1
DIGITAL OUT
COAXIAL
ANT.
ANT.
[Fig. 6]
From Cable System
75-ohm Coaxial
Cable (Not
supplied)
