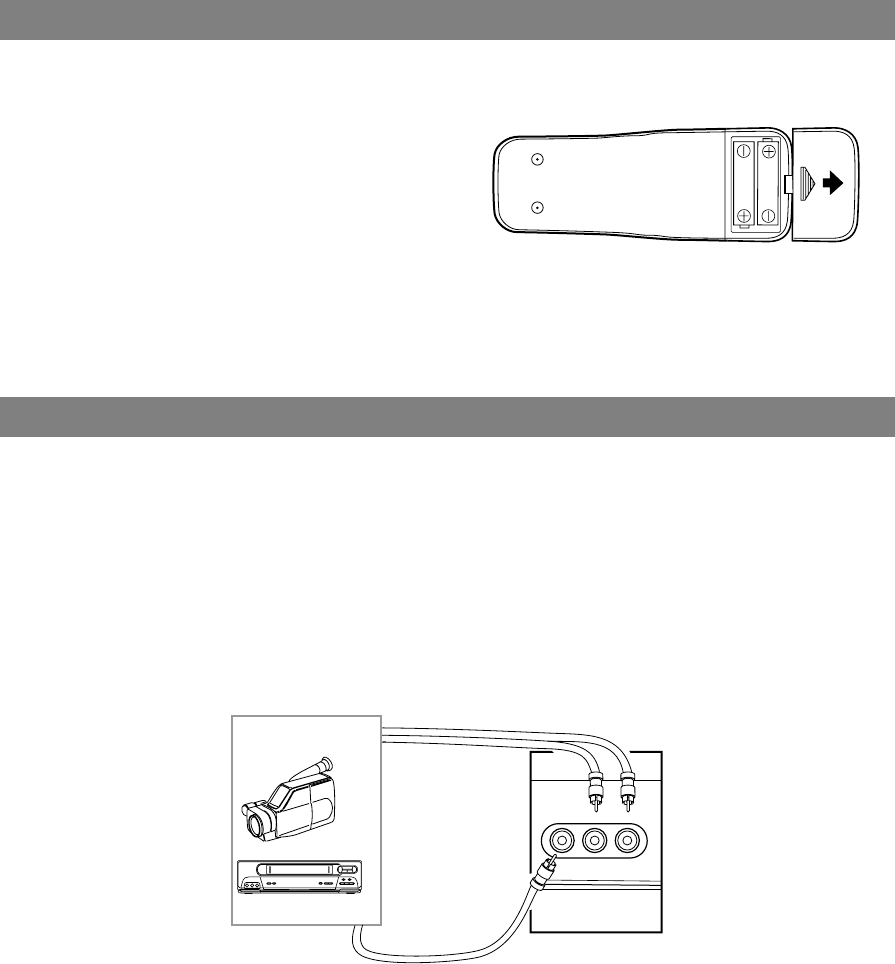

INSTALLING THE BATTERIES
1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.
2)Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity (+/-)
markings.
3)Replace the cover.
Antenna/Cable Connections Continued on the Next Page.
CONNECTING TO EXTERNAL INPUT JACKS
When you watch a program recorded on an another source (VCR or video camera), use the audio/video input
jacks on the front of the TV/DVD.
Connect the audio/video output jacks of another source to the AUDIO L/R and VIDEO jacks of this TV/DVD.
Then press the SELECT button until "VIDEO" appears on the screen.
NOTE:
•
When you connect a monaural VCR (another source) to this TV/DVD, connect the Audio output jack of the
monaural VCR (another source) to the AUDIO L jack of this TV/DVD. The audio will output in both L and
R channel equally.
L-AUDIO-RVIDEO
[Another source]
To the audio
output jacks
Audio/Video
coaxial cable
(not supplied)
etc.
To the video
output jack
[Front of the TV/DVD]
[Fig. 8]
