PRV-LX10
En
No.
1
2
3
4
5
6
7
8
9
Name
STANDBY/ON button
Display sections
PLAY/REC indicator for DVD 1 drive
DISC indicator for DVD 1 drive
EJECT button (0) for DVD 1 drive
DVD1, DVD2, HDD (Hard disk Drive)
indicators
PREVIEW button
DRIVE SELECT button
STOP button (7)
Function
When the unit is in the standby condition, pressing this button causes the
power to come on; the power indicator (to the left of the button) changes
from orange to green. The main display section indicates system startup.
After system startup is completed, the unit enters “idling condition,” and as
the unit’s display changes to show the current time, the STOP button lights.
When the unit is in the standby condition, if this button is pressed while
holding the STOP button depressed, the Function Menu’s setting values
will be reset to their factory defaults, and the power will then turn ON.
If the button is held depressed for one second or more when the unit is in
the idling condition, the unit will perform system shutdown, followed by
return to the standby mode (the power indicator will change from green to
orange). In the event operation becomes unstable and manual forced
shutdown is required, hold the button depressed for four seconds or more.
Lights to indicate operating state of DVD1 drive.
Appears green during PLAY mode, and orange during REC mode.
Located to the right side of DVD1, this indicator light (orange) to indicate
that a disc is loaded. (*1)
Press to open/close DVD1 disc tray. The DISC indicator flashes from the
time the button is pressed until the disc tray closes fully.
These indicators light to show which drive has been selected with the
DRIVE SELECT button (the indicator for the selected drive lights green).
When this button is pressed with the unit in the idling condition, a
preview image/sound of the selected input (following encode and decode
processing) is supplied to all output connectors except DV; when the
button is pressed again, the unit returns to idling condition.
Use to select the playback source and destination drive for recording. The
selection changes in the order HDD (Hard disk Drive) = DVD1 = DVD2
= DVD1&2. When a drive is selected, the corresponding indicator lights
(green). When DVD1&2 is selected, DVD1 is designated as the playback
source.
Functions to stop recording or playback. Until all internal operations are
completed, the indicator flashes (white), and when fully completed, the unit
returns to the idling condition and the indicator lights (white). Also, during
idle condition, pressing the STOP button while holding down the CURSOR
(bottom pointing arrow) button turns progressive encoding ON/OFF. (*2)
To switch the selected TV system format (NTSC/PAL), hold the CURSOR
(upward pointing arrow) button depressed and press the STOP button.
2 3 4 5 6 7 8 9 10 11 12 151413
1617
1819202122232425
1
262728

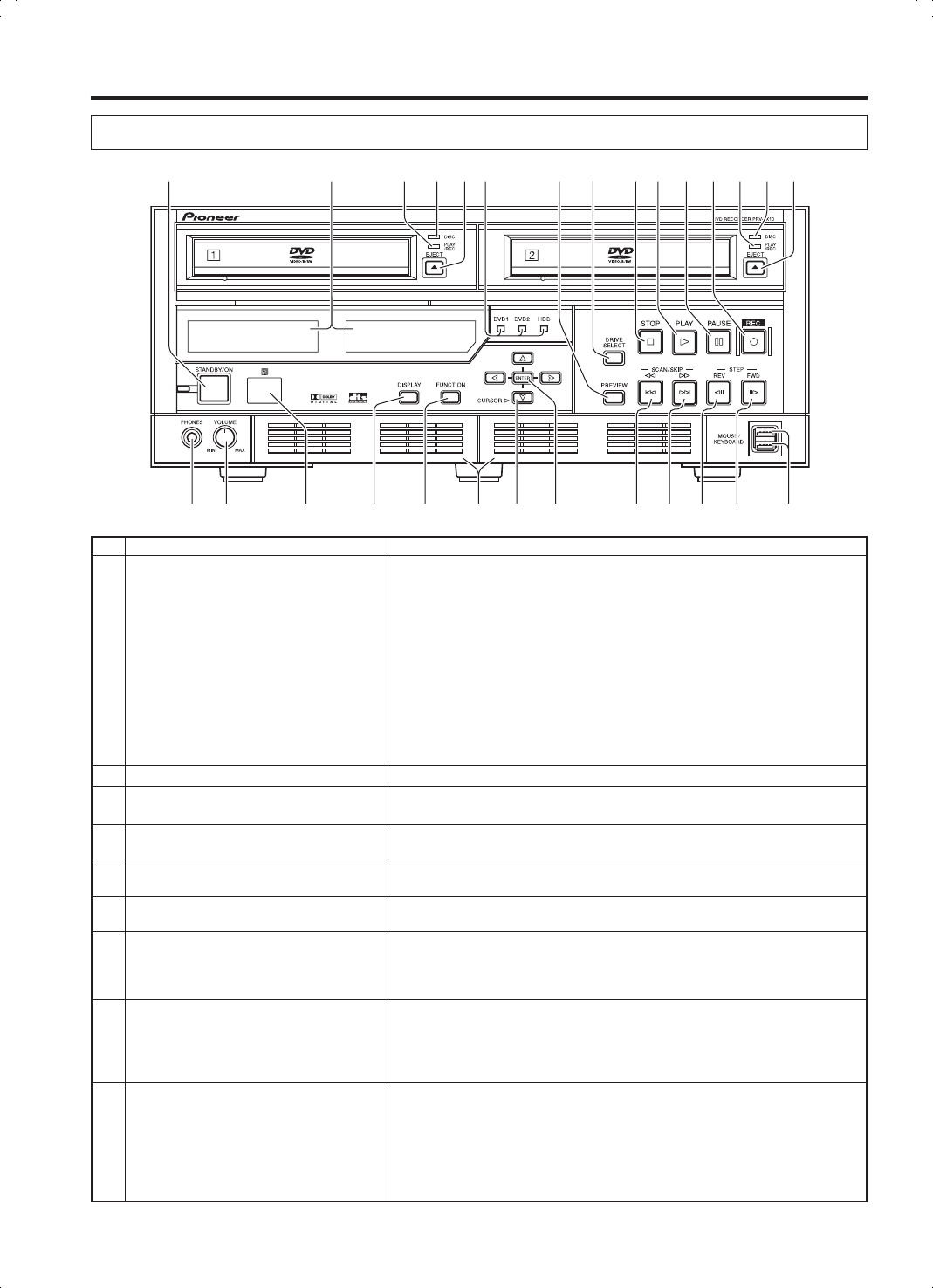

Front Panel Facilities
