Pioneer DVR-543H-S DVD Recorder User Manual



Connecting up
02
18
En

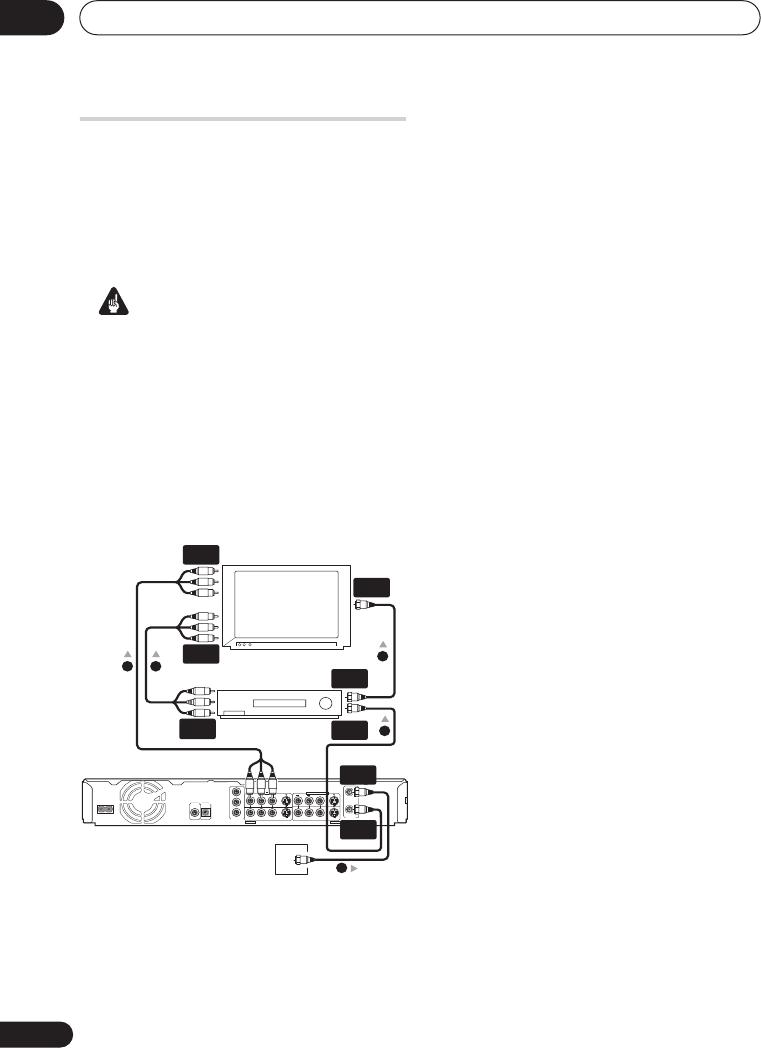

Easy connections
The setup described here is a basic
configuration that allows you to record TV
programs on both this recorder and your
VCR. When watching recordings from this
recorder, set your TV to input 1; switch to
input 2 to watch a video playing in the VCR.
Important
This recorder is equipped with copy
protection technology. Do not connect
this recorder to your TV via a VCR (or your
VCR via this recorder) using AV cables,
as the picture from this recorder will not
appear properly on your TV.
Before making or changing any rear
panel connections, make sure that all
components are switched off and
unplugged from the wall outlet.
1 Connect your TV antenna/cable TV
outlet to the
VHF/UHF IN
jack on this
recorder.
2 Use an RF antenna cable (one is
supplied) to connect the VHF/UHF OUT
jack on this recorder to the antenna input
on your VCR.
If you are not connecting a VCR in the
chain, connect this recorder directly to
your TV and skip the next step.
3 Use an RF antenna cable to connect
the antenna output on your VCR to the
antenna input on your TV.
4 Connect the AUDIO and VIDEO
OUTPUT jacks (1 or 2) to a set of audio/
video inputs on your TV.
Use the supplied three-pin audio/video
cable. It is color-coded to help you match
them up (red/white for the right/left audio
connections and yellow for video in/outs).
Make sure you match up the left and right
outputs with their corresponding inputs for
correct stereo sound.
5 Connect your VCR to your TV (A/V IN
2 above) using a set of audio and video
cables.
See the following page if you want to use
S-video or component video cables for
the video connection.
AC IN
COAXIAL IN
S-VIDEO
VIDEO
L
R
COMPONENT
VIDEO OUT
Y
P
B
P
R
VHF/UHF
IN
OUT
OUTPUT 2
OUTPUT 1
S-VIDEO
VIDEO
AUDIO
L
R
INPUT 3
INPUT 1 / AUTO START REC
DIGITAL
OUT
CONTROL
TV
VCR
Antenna/cable TV
wall outlet
1
2
3
4 5
VHF/UHF
OUT
VHF/UHF
IN (RF IN)
VHF/UHF
IN
VHF/UHF
OUT
VHF/UHF
IN
A/V
IN 1
A/V
IN 2
A/V
OUT
