Connect to antenna
ATSC (DTV) & NTSC(ATV) input connection cong
1. There are two Antennas:
- ANT 1 is only for ATSC channel of Air.
- ANT 2 is only for Air or Cable Signal of NTSC.
2. The user can select the Antenna input as below:
A.OneAntennaisforAirsignalcong.
B.TwoAntennacongA
ANT 1 is only for ATSC channel of Air.
ANT 2 is only for Cable signal of NTSC.
C.TwoAntennacongB
ANT 1 is only for ATSC channel of Air.
ANT 2 is only for Air or Cable Signal of NTSC.
Note:
After connection, if your product has the interference, please don’t select the con
-
nections A or C, use only B.

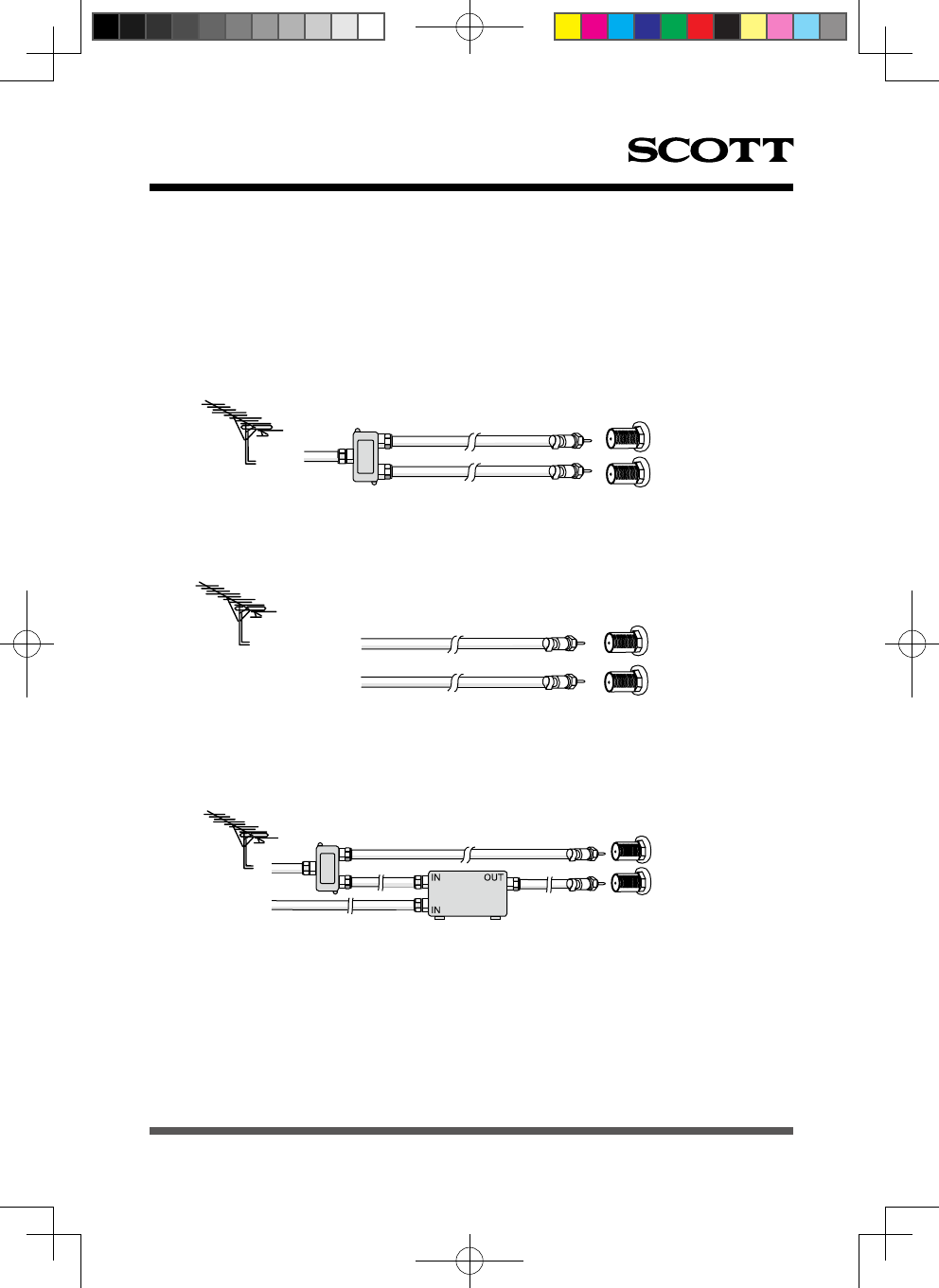

Air Signal
(NTSC + ATSC)
Splitter
ANT 1 (DTV)
ANT 2 (ATV)
Air Signal
ATSC
Cable Signal
NTSC
ANT 1 (DTV)
ANT 2 (ATV)
Air Signal
(NTSC + ATSC)
Cable Box
ANT 1 (DTV)
ANT 2 (ATV)
Splitter
Cable Signal NTSC
