A/V Receiver hookup
Advanced Hookups
B Use this hookup if your A/V reciever has a Dolby Digital or DTS*
decoder, a digital input jack and 6 speakers
This connection will allow you to use the Dolby Digital or DTS decoder function of
your AV amplifier (receiver). You are not able to enjoy the surround sound effects of
this player. You must make connections using and .
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
Note
After you have completed the connection, be sure to set “Dolby Digital” to “Dolby Digital”
and “DTS” to “On” in “Audio Setup” (page 48). Otherwise, no sound or a loud noise will
come from the speakers.

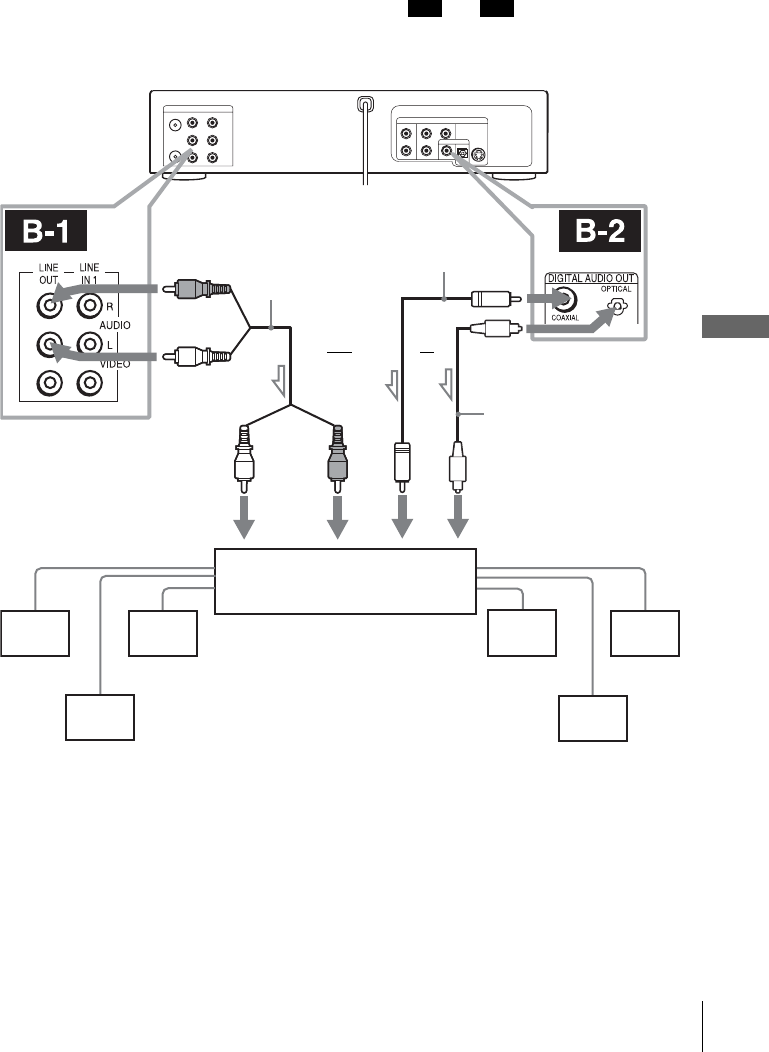

B-1 B-2
Front (R)
Front (L)
Rear (R)
AV amplifier (receiver) having
a decoder
Subwoofer Center
[Speakers]
DVD-VCR
[Speakers]
Rear (L)
to coaxial or optical
digital input
and
Coaxial digital cord
(not supplied)
l: Signal flow
Stereo audio cord
(not supplied)
(red)(white)
to audio input
(white)
(red)
to LINE OUT L/R (AUDIO)
or
to DIGITAL OUT
(COAXIAL or OPTICAL)
Optical digital cord
(not supplied)
Remove jack cap
before connecting
