S-Video/Component Video hookup
Advanced Hookups
B Use this hookup if your TV has component video input jacks
Connect your TV via the COMPONENT VIDEO OUT jacks using a component
video cord (not supplied) or three video cords (not supplied) of the same kind and
length. You will enjoy accurate color reproduction and high quality images.
See page 46 for audio connections.
If your TV accepts progressive (480p) format signals, you must use this connection
and then press the PROGRESSIVE button on the front panel when the DVD player is
in stop mode to accept progressive video signals. The PROGRESSIVE indicator
lights up in blue when the DVD player outputs progressive signals.
Notes
Set “Video Out” to “Component” in the “SCREEN SETUP” menu (page 51) to view pictures
from the component video jacks.
The connection using COMPONENT VIDEO OUT jack is only for the DVD player.
The PROGRESSIVE button is not available when the DVD player is in play mode. Use the
PROGRESSIVE
button in stop mode.
l : Signal flow
(DVD only)

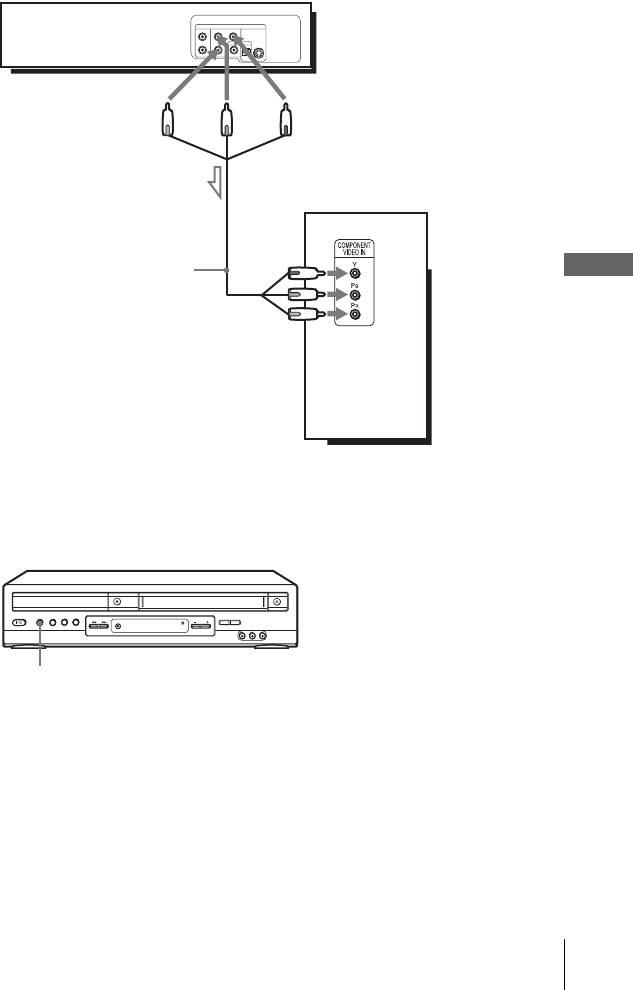

Component video cord
(not supplied)
TV
(green)
(red)
(green)
(blue) (red)
DVD-VCR
(blue)
PROGRESSIVE button/indicator
