Front Panel
Rackmount DVD/CD Duplicator User’s Manual 3
Front Panel

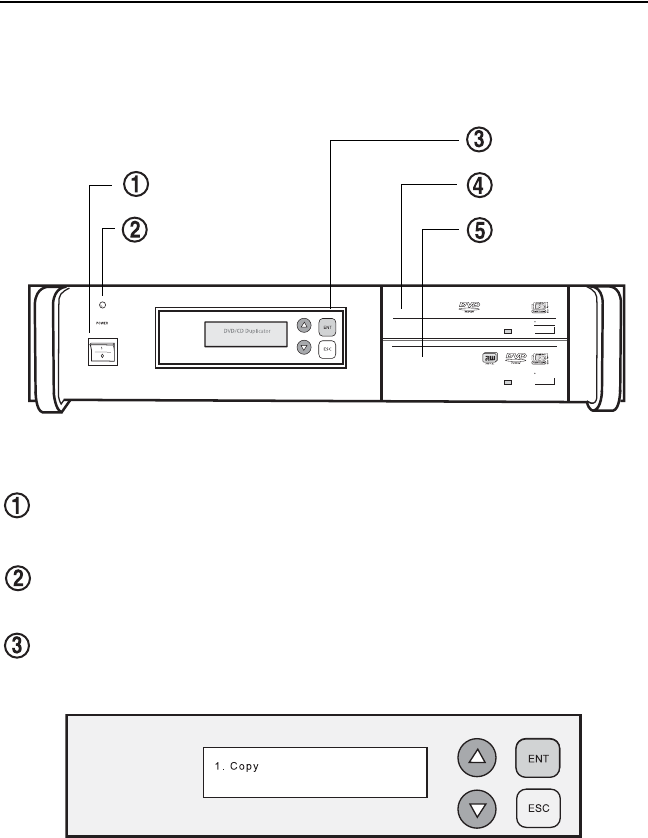

Figure 2 illustrates the front panel of the Rackmount DVD/CD Duplicator.
Figure 2. Front Panel of Rackmount DVD/CD Duplicator
power switch: Use the power switch to turn the power to the DVD/CD
Duplicator unit on or off.
LED power indicator: The LED power indicator will be continuously lit
when the DVD/CD Duplicator power is on
.
LCD control panel: Use the control panel buttons to navigate through the
various functions viewed on the LCD display.
Figure 3. LCD Control Panel
LED power indicator
power switch source drive
LCD control panel
target drive
