Front Panel Configuration Port
AUDIO
VIDEO
I/O
CONTROL
ENTER PRESET
VIEW
ESC
PRESENTATION MATRIX SWITCHER
MPX 866 A
CONFIG
14

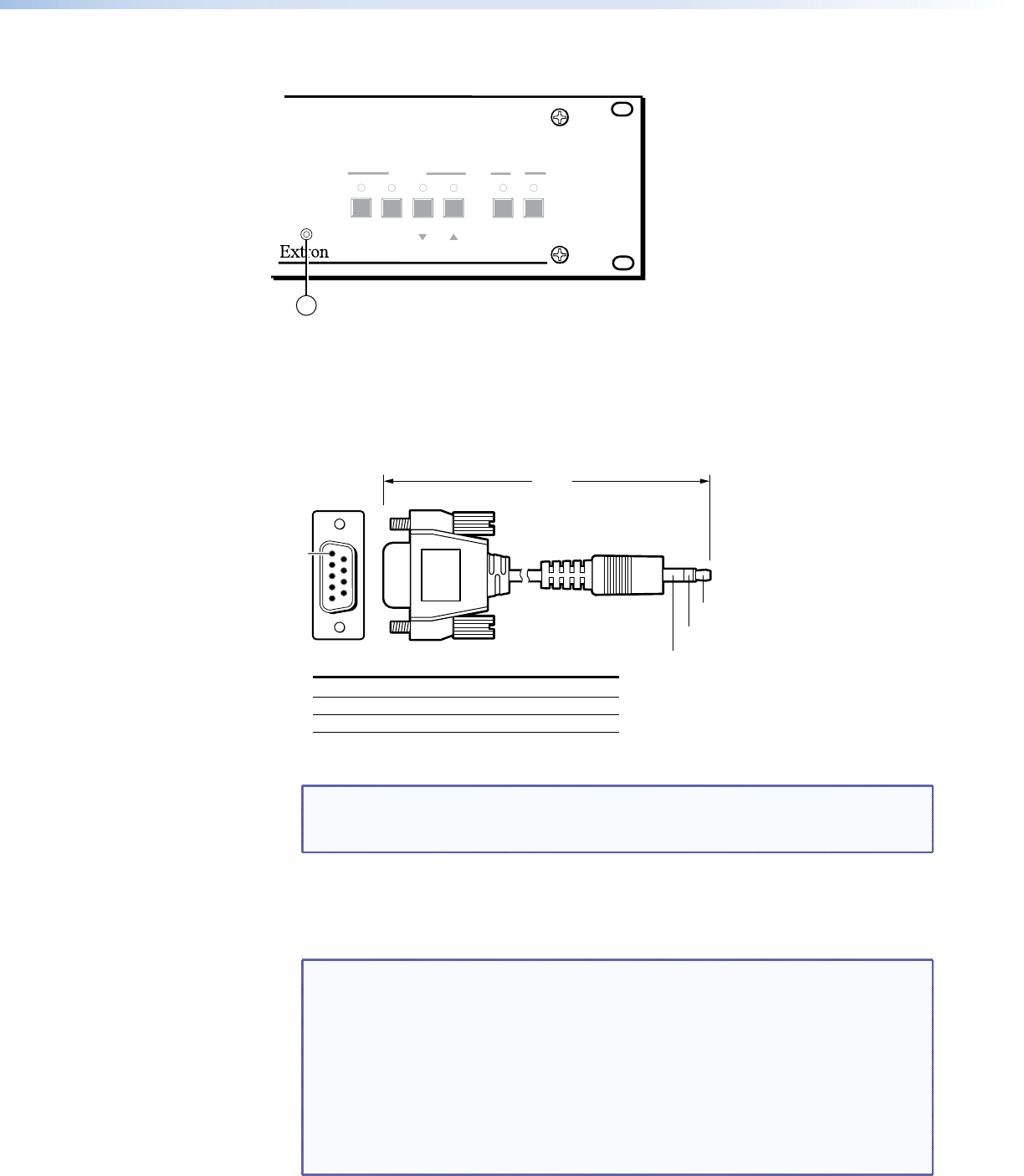

Figure 8. Front Panel Configuration Port
n Configuration port — This 2.5 mm mini stereo jack serves the same serial
communications function as the rear panel Remote port, but it is easier to access than
the rear port after the matrix switcher has been installed and cabled. The optional 9-pin
D to 2.5 mm mini jack TRS RS-232 cable, part number 70-335-01 (see figure 9), can be
used for this connection.
(1.8 m)
9
6
Sleeve (Gnd)
Ring
Tip
9-pin D Connection TRS Plug
Pin 2 Computer Rx line Tip
Pin 3 Computer Tx line Ring
Pin 5 Computer signal ground Sleeve
Figure 9. Optional 9-pin TRS RS-232 cable
NOTE: This port parallels the rear panel RS-232 Secondary port. If a front panel
configuration connection is made, the rear panel RS-232 Secondary port
becomes inactive and the front panel Configuration port is active.
This port is RS-232 only, with its default protocols as follows:
9600 baud no parity 8 data bits
1 stop bit no ow control
NOTES: • The Conguration port can operate at 9600, 19200, 38400, or 115200
baud rates. See “Selecting the Baud Rate of the RS-232 Primary
Port” in the “Operation” section to configure all ports under SIS control.
• The maximum distances from the matrix switcher to the controlling
device can vary up to 200 feet (61 m). Factors such as cable gauge,
baud rates, environment, and output levels (from the switcher and the
controlling device) all affect transmission distance. Distances of about
50 feet (15 m) are typically not a problem. In some cases the matrix
switcher may be capable of serial communications via RS-232 up to
250 feet (76 m) away.
MPX 866 A Media Presentation Matrix Switcher • Installation 14
