3M Multimedia Projector MP8030
Retaining Screws: Use a standard screwdriver to
unscrew the lamp module retaining screws
(Figure 6-2).
Note
There are four lamp module screws that must
be loosened. These screws are
self-containing screws that cannot be
removed from the lamp module.
Screws
Screws
Lamp
Module

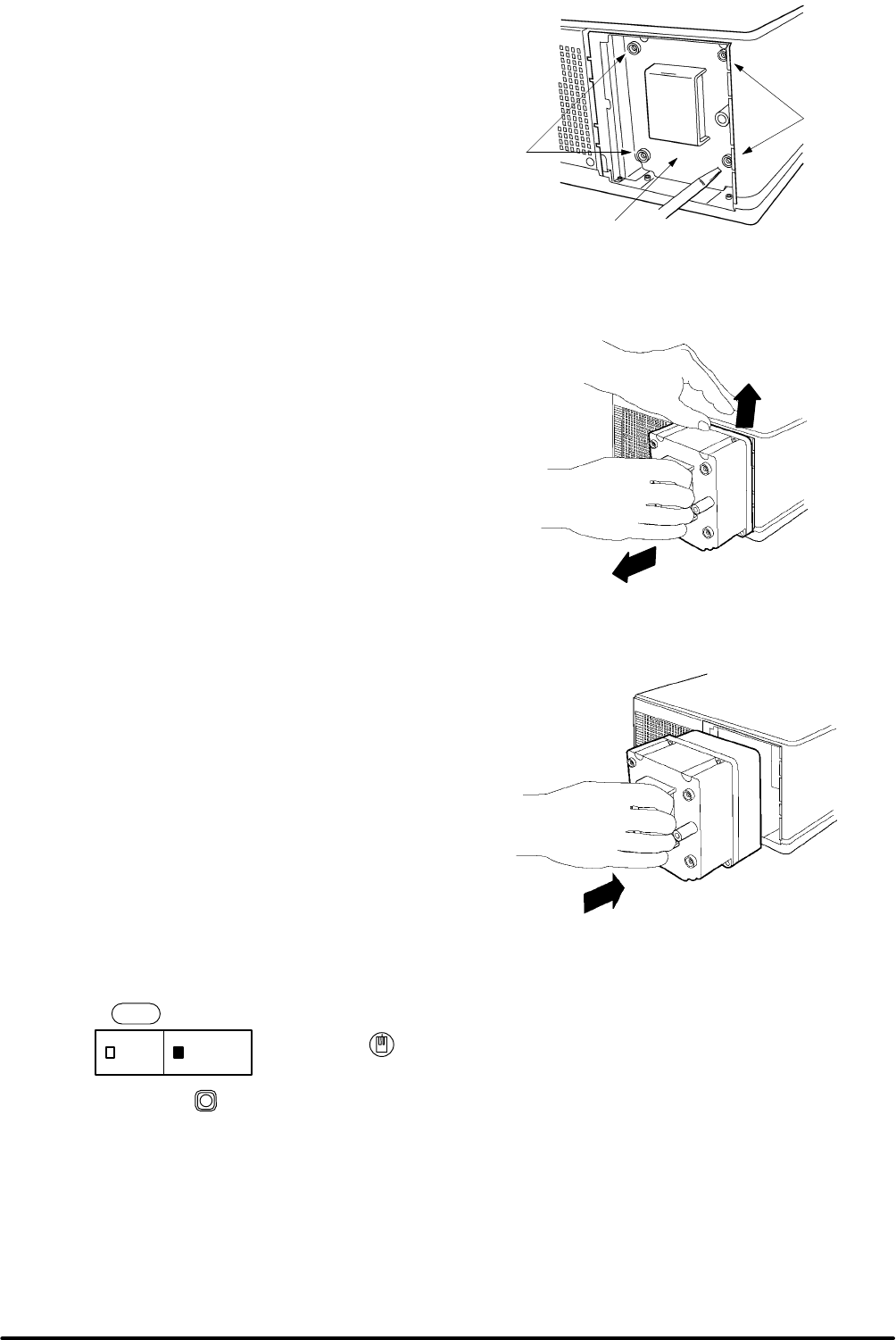

Figure 6-2. Lamp Module Retaining Screws
Remove Lamp Module: Grasp the lamp module
with one hand and the projector body opening with
the other hand (Figure 6-3). Apply upward pressure
to the projector body as you slide the lamp out.
Figure 6-3. Slide Lamp Out to Remove
Insert Lamp Module: Carefully insert the new lamp
module into the opening and slide it all the way back
into place (Figure 6-5). Check the lamp module to be
sure that it is fully inserted and flush against the back
wall.
Tighten the lamp module retaining screws to secure
the lamp module in place (Figure 6-2).
Insert the hinge tabs on the left side of the lamp
access door, then close and tighten the retaining
screw to secure the door (Figure 6-1).
Reset the Operating Hours: Press and hold down
the TIMER
TIMER
button for two seconds to display
the lamp operating hours. Press the RESET
button to display the reset sub-menu (Figure 6-4).
Move the stick switch
left/right to select either
the 0 field to reset the hours or the Cancel field to
exit the menu and not change the counter.
Figure 6-5. Slide Lamp In to Insert
For best results, lamps should be replaced after 2000 hours.
→ 0
Figure 6-4. Reset Hours
Cancel
