INDEX

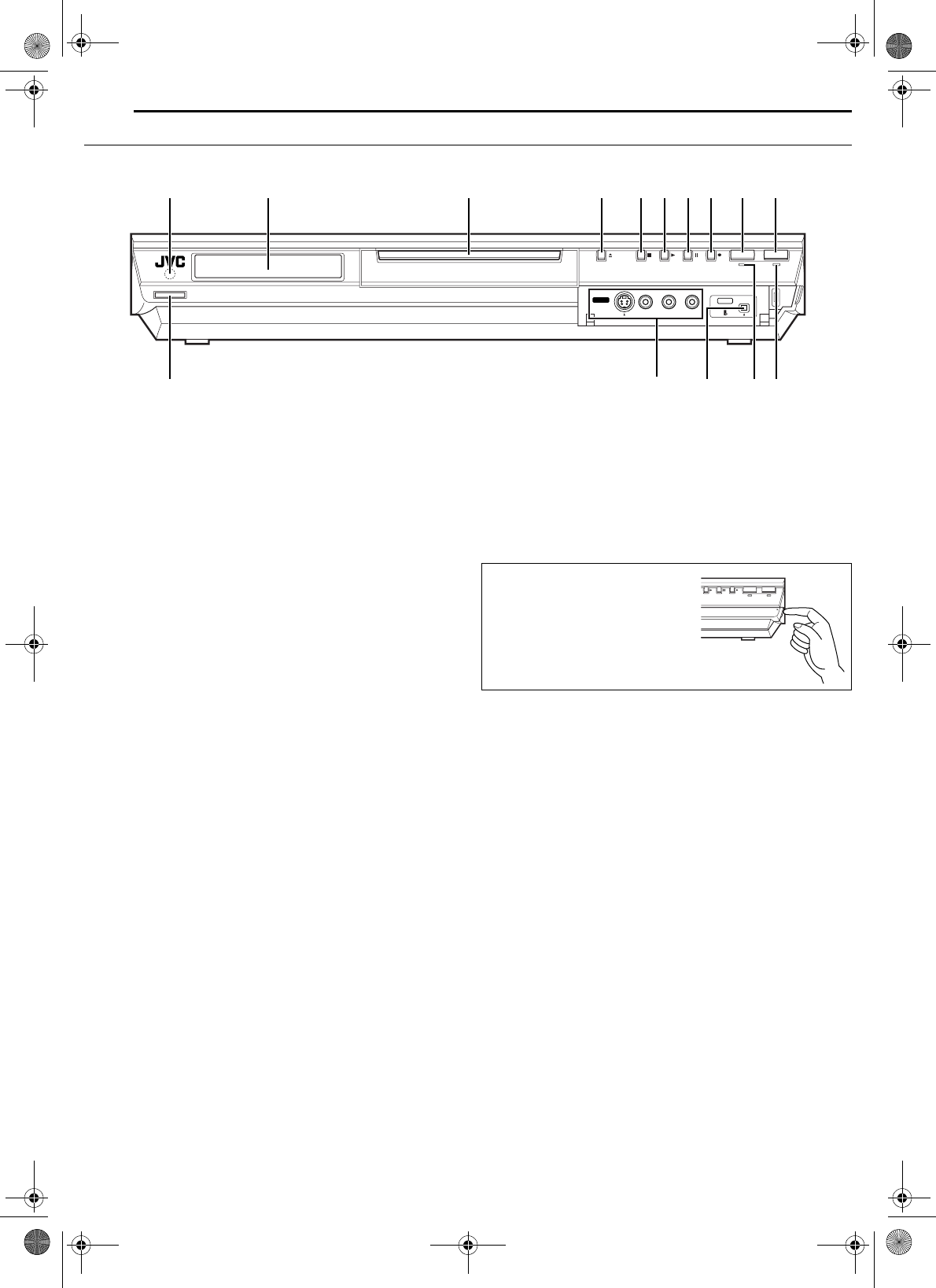

Front View
A Infrared Beam Receiving Window
B Front Display Panel
੬ pg. 14
C Disc Tray
D Open/Close Button (x)
੬ pg. 10
E Stop Button (8)
੬ pg. 27, 42
F Play Button (4)
੬ pg. 27, 42
G Pause Button (9)
੬ pg. 27, 42
H Record Button (7)
੬ pg. 37, 40
I HDD Button
੬ pg. 40
J DVD Button
੬ pg. 27
K Standby/On Button (1)
L S-Video/Video/Audio Input Connectors (S-VIDEO/
VIDEO/AUDIO (L/R)) ੬ pg. 61
M DV Input connector (DV IN (i*))
੬ pg. 60
* i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the
i.Link standard.
N HDD Lamp ੬ pg. 40
O DVD Lamp
੬ pg. 27
1
STANDBY ON
S-VIDEO VIDEO
L(MONO)
-
AUDIO
-
R
DV
DV IN
F1
HDD DVD
K
C D FE G H I JBA
L ONM
To access covered connectors, pull
and open the connector cover.
L(MONO)
-
AUDIO
-
R
DV
DV IN
HDD DVD
PULL - OPEN
