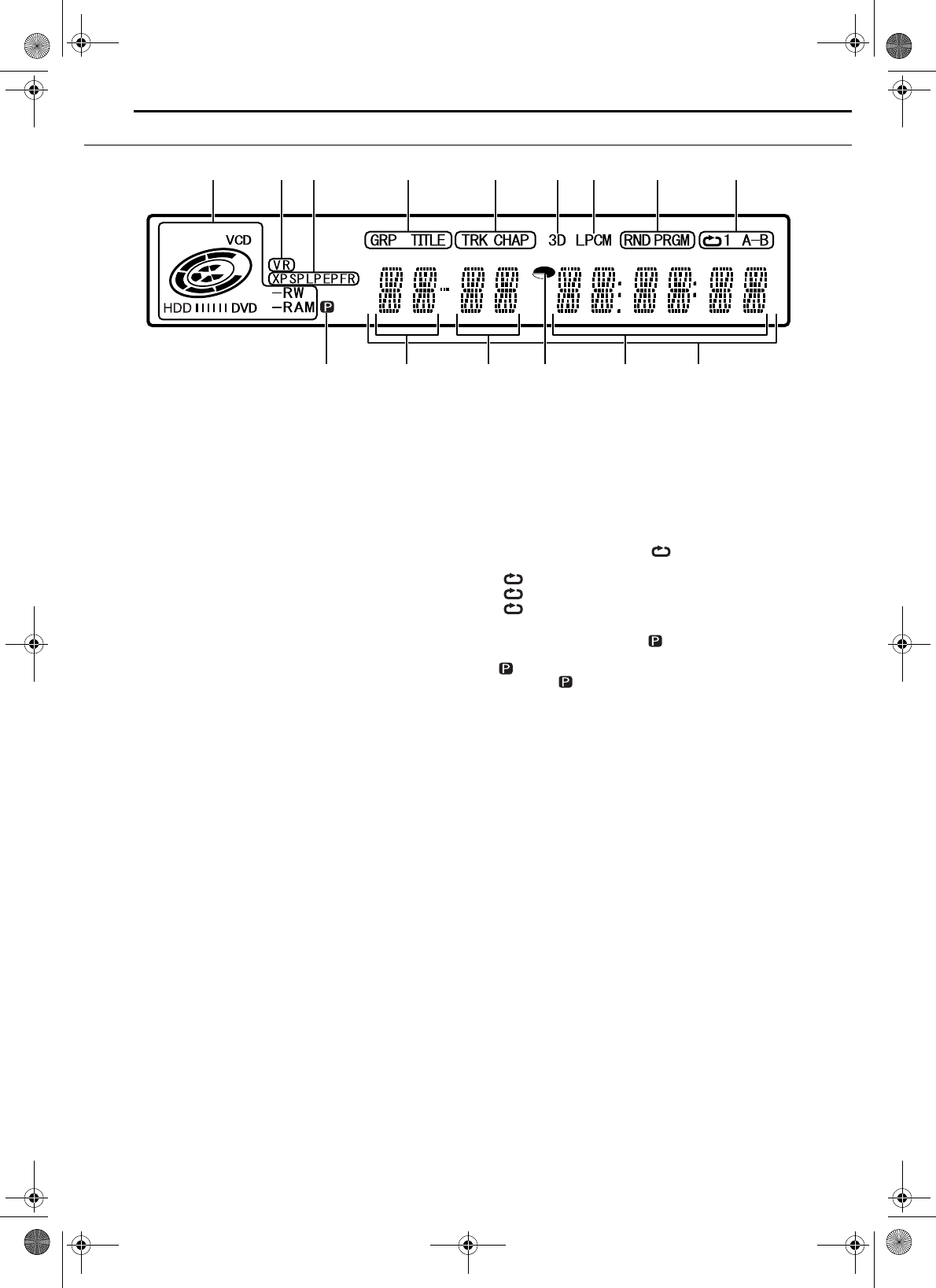

Front Display Panel
A Disc Type Indicator
When a disc is loaded, the type of the disc is indicated.
Disc Status Indicator
When a disc is running, the disc marks rotate.
During High-Speed Search: Rotate faster than normal playback.
During Slow Motion: Rotate slower than normal playback.
While recording: Inner red ring lights in the same way
as normal playback. During Instant
Timer Recording (ITR), inner red ring
slowly blinks.
While paused: Disc marks blink when either
recording or playing back.
While stopped: Disc marks all light.
While resume stopped: Disc marks all blink.
While the disc tray opened: Disc marks all light out.
No disc on the disc tray: Disc marks all light out.
B VR Mode Indicator pg. 71
Lights when a DVD-RW disc is formatted in VR mode.
C Recording Mode Indicator (XP/SP/LP/EP/FR) pg. 37
Blinks when recording mode is being set.
While FR is blinking, the left 3 digits of the Multi Display (K L)
indicate setting values ranging from 60 to 480. After the value
has been set, only FR lights.
D Group/Title Indicator (GRP/TITLE)
GRP or TITLE lights depending on a disc loaded while the left 2
digits of the Multi Display (K) indicate the numbers explained below.
GRP: Total number of groups or group number being played
back are displayed on the Multi Display.
TITLE: Total number of titles or title number being played back
are displayed on the Multi Display.
E Track/Chapter Indicator (TRK/CHAP)
TRK or CHAP lights depending on a disc loaded while the 3rd
and 4th digits from the left of the Multi Display (L) indicate the
numbers explained below.
TRK: Total number of tracks or track number being played
back are displayed on the Multi Display.
CHAP: Chapter number being played back are displayed on the
Multi Display.
F Simulated Surround Effect Indicator (3D) pg. 34
Lights when a simulated surround effect is set to 3D-ON on the
on-screen bar.
G Linear PCM Indicator (LPCM)
Lights when XP MODE REC AUDIO is set to LINEAR PCM
(
pg. 68) for recording with HDD, DVD-RAM, DVD-R and
DVD-RW discs, and when Linear PCM audio is played.
H Random/Program Playback Mode Indicator (RND/
PRGM)
pg. 35
RND: Lights when Random Playback mode is set.
PRGM: Lights when Program Playback mode is set.
I Repeat Mode Indicator ( /1/AB) pg. 33
Select Repeat Playback mode on the on-screen bar.
“”: Whole disc is played back repeatedly.
1: A single title/chapter/track is played back repeatedly.
AB: The selected part (AB) is played back repeatedly.
No display: Repeat Playback mode is off.
J Video Output Indicator ( ) pg. 69
No display:Indicates that interlace mode is engaged.
: Indicates that progressive mode is engaged.
(Example) lights when video output mode is in progressive
mode.
K Group/Title Number Display
L Track/Chapter Number Display
M Remaining Time/Elapsed Time Indicator pg. 30, 38
Lights when remaining time of DVD-RAM, DVD-R and DVD-RW
discs is displayed, and lights out when elapsed time is displayed.
The right 6 digits of the Multi Display (N) indicate elapsed or
remaining time of each track.
No display: Indicates elapsed time of the disc.
Displayed: Indicates remaining time of the disc.
N Remaining Time/Elapsed Time Display pg. 30, 38
O Multi Display
Displays clock, received channel, elapsed time, and remaining time.
Also displays status of the unit (NO DISC/OPEN/CLOSE/
READING).
ABC FEDHGI
MLKJNO
