Connecting to a Satellite Receiver or Cable Box with A/V Connectors
1.Connect a 75-ohm coaxial cable from your Cable TV to the Satellite Receiver's or Cable Box's Ant
(Antenna) jack.
2.Using Audio and S Video cables, connect the satellite receiver's Audio and S-Video OUT jacks to the TV
Audio and S Video IN jacks.
Note: When you connect video equipment to both the same Video and S-Video input jacks, display will
automatically select S Video first.
To view S-Video signal, please disconnect Video jack or turn off the Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video equipment has it because S-Video input has
better quality of picture than a composite Video signal.
Disconnect all power sources before making any connections.
TV Installation and Connection Guide
For 242 / 247 / 252 / 255 TFHD Models

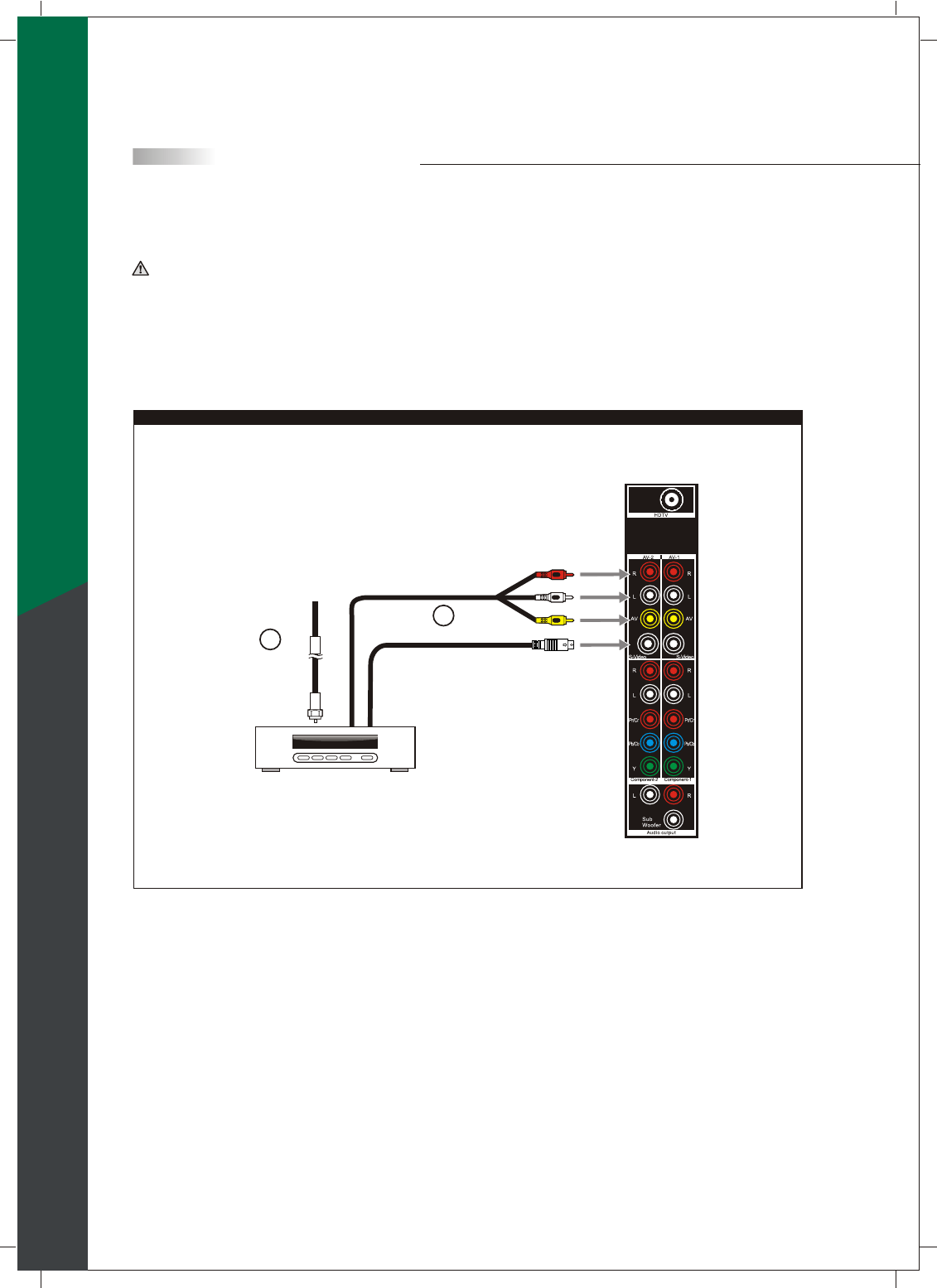

Satellite Receiver
or Cable Box
(75-ohm
coaxial cable)
1
2
Rear of TV
A/V cable with
RCA connector
S Video cable
Yellow
Red
White
