RQT8950
11

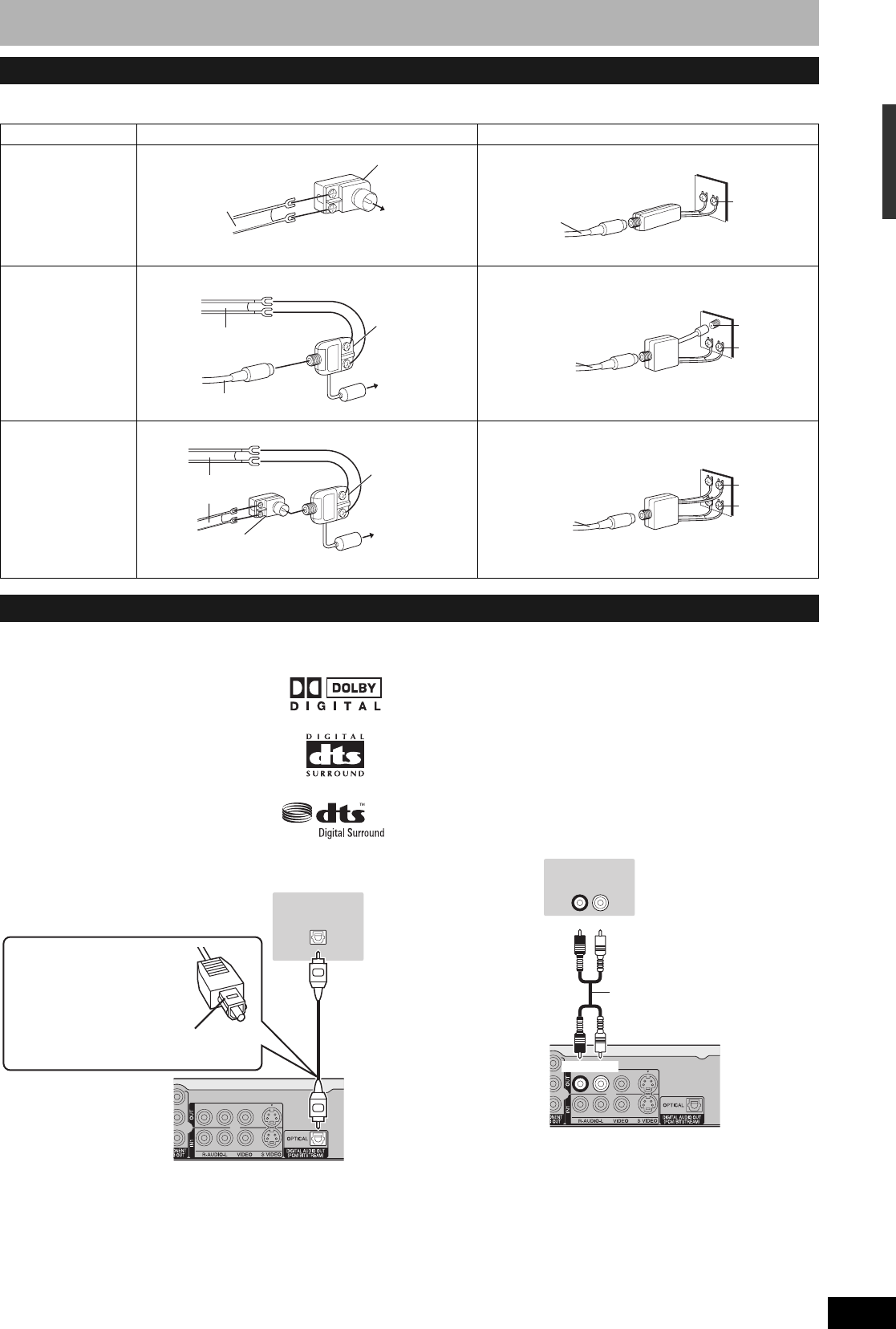

Use one of the following connections to suit the antenna lead to the unit’s RF IN terminal, and the 75 Ω coaxial cable to the antenna terminals on
the equipment (television etc.). Refer to other equipment’s operating instructions.
n Connecting an amplifier with a digital input
terminal
• To enjoy multi-channel surround on DVD-
Video, connect an amplifier with a built-in
decoder displaying these logo marks using
an optical digital audio cable and change
the settings in Digital Audio Output
(Ô page 39).
• Before purchasing an optical digital audio
cable, check the terminal shape of the
connected equipment.
• You cannot use DTS Digital Surround
decoders not suited to DVD.
• Even if using this connection, output will be
only 2 channels when playing DVD-Audio.
n Connection to a stereo amplifier
If the antenna connector doesn’t match
Type This unit Other equipment (television etc.)
A twin lead
A twin lead and
a coaxial plug
Two twin leads
Connecting an amplifier or system component
To this unit’s RF IN
terminal
from the antenna
(Flat) Twin lead
300 Ω cable
300–75 Ω
transformer
Tel ev isi on
75–300 Ω
transformer
75 Ω coaxial
cable
VHF or UHF
To this unit’s
RF IN terminal
from the antenna
(Flat) Twin lead
300 Ω cable
VHF/UHF
band mixer
(Round)
75 Ω coaxial cable
Tel ev isi on
VHF/UHF band separator
75 Ω coaxial
cable
VHF
UHF
To this unit’s
RF IN terminal
from the antenna
(Flat) Twin lead
300 Ω cable
VHF/UHF
band mixer
300–75 Ω
transformer
Television
VHF/UHF band separator
75 Ω coaxial
cable
VHF
UHF
OPTICAL IN
Optical digital audio cable
Do not bend sharply when
connecting.
Insert fully, with this side facing up.
This unit’s rear panel
Amplifier’s rear panel
AUDIO IN
R L
Amplifier’s rear panel
This unit’s rear panel
Audio cable
Red White
Red White
STEP 1 Connection
