Connecting Up
Using Remote Control

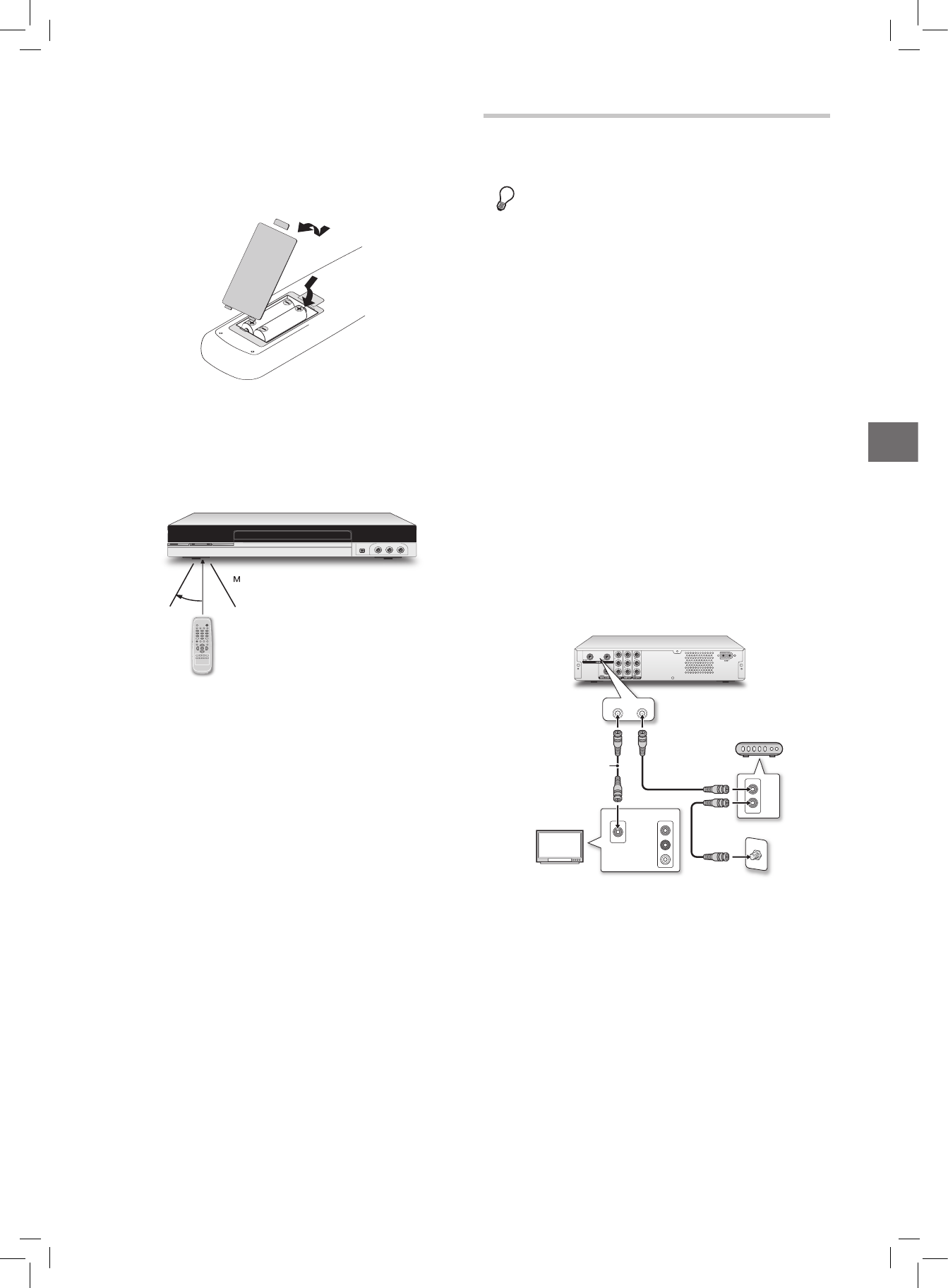

Preparing the Remote Control
Open the battery compartment and insert the batteries.
Make sure the polarities (+ and -) match the markings
inside the remote control.
Do not use rechargeable batteries.
Remote Control Signal
The remote has a range of approximately 5M and works
best when pointed directly at the unit horizontally at
angles up to 30° from the sensor window of the DVD
recorder.
30
0
5
Easier Application with Remote Control
Function buttons, such as TOOLS or TIMER, are
designed to offer you a quick access to intended applica
-
tions. Press these buttons to go directly to their individual
menus and complete your desired tasks. If you would like
to quit an application, simply press the designated button
again.
Connecting up Your DVD
Recorder
Before you start...
1. Do not plug the AC power cord into the outlet until all
other connections are made.
2. It is recommended that you connect VIDEO OUT jack
of the DVD recorder directly to the video input of your
TV. Connecting VIDEO OUT jack of this recorder to
a TV via a VCR may cause a viewing problem when
playing a copyright-protected disc. The same viewing
problem may also occur when connecting the recorder
to an integrated TV/Video system.
..........................................................................................
Step 1: Connecting
Antenna/Satellite Cables
Option 1 With Cable Box
Wall Outlet Cable Box DVD Recorder TV
1.
Use an antenna cable to connect the RF IN jack on the
cable box to the antenna outlet on the wall.
2. Use an antenna cable to connect the RF OUT jack on
the cable box to the RF IN jack on the DVD recorder.
3. Use an antenna cable to connect the RF OUT jack on
the DVD recorder to the RF IN jack on the television.
IN
R
AUDIO
VIDEO
L
VHF / UHF
OUT
IN
Wall
Antenna cable
RF IN
RF OUT
Cable box
T V
Option 2 Without Cable Box
Wall Outlet DVD Recorder TV
1. Use an antenna cable to connect the RF IN jack on the
DVD recorder to the antenna outlet on the wall.
2. Use an antenna cable to connect the RF OUT jack on
the DVD recorder to the RF IN jack on the television.
(Please note that this serves as a pass-through only.)
