Pioneer DVR-510H DVD Recorder User Manual



Connecting up
02
15
En
Connecting to a cable box or satellite receiver (1)
If you are using a cable box or satellite receiver with only a few scrambled channels, follow the setup on this page. If
many or all the channels are scrambled, we recommend using the setup on the following page.
Using the setup on this page you can:
Record unscrambled channels by selecting them on this recorder.
Record scrambled channels by selecting them on the cable box/satellite tuner and using the Auto Start Recording
feature (see
Automatic recording from a satellite tuner
on page 52).
Watch one channel while recording another.
Important
Do not connect this recorder ‘through’ your VCR, satellite receiver or cable box. Always connect each component
directly to your TV or AV receiver.

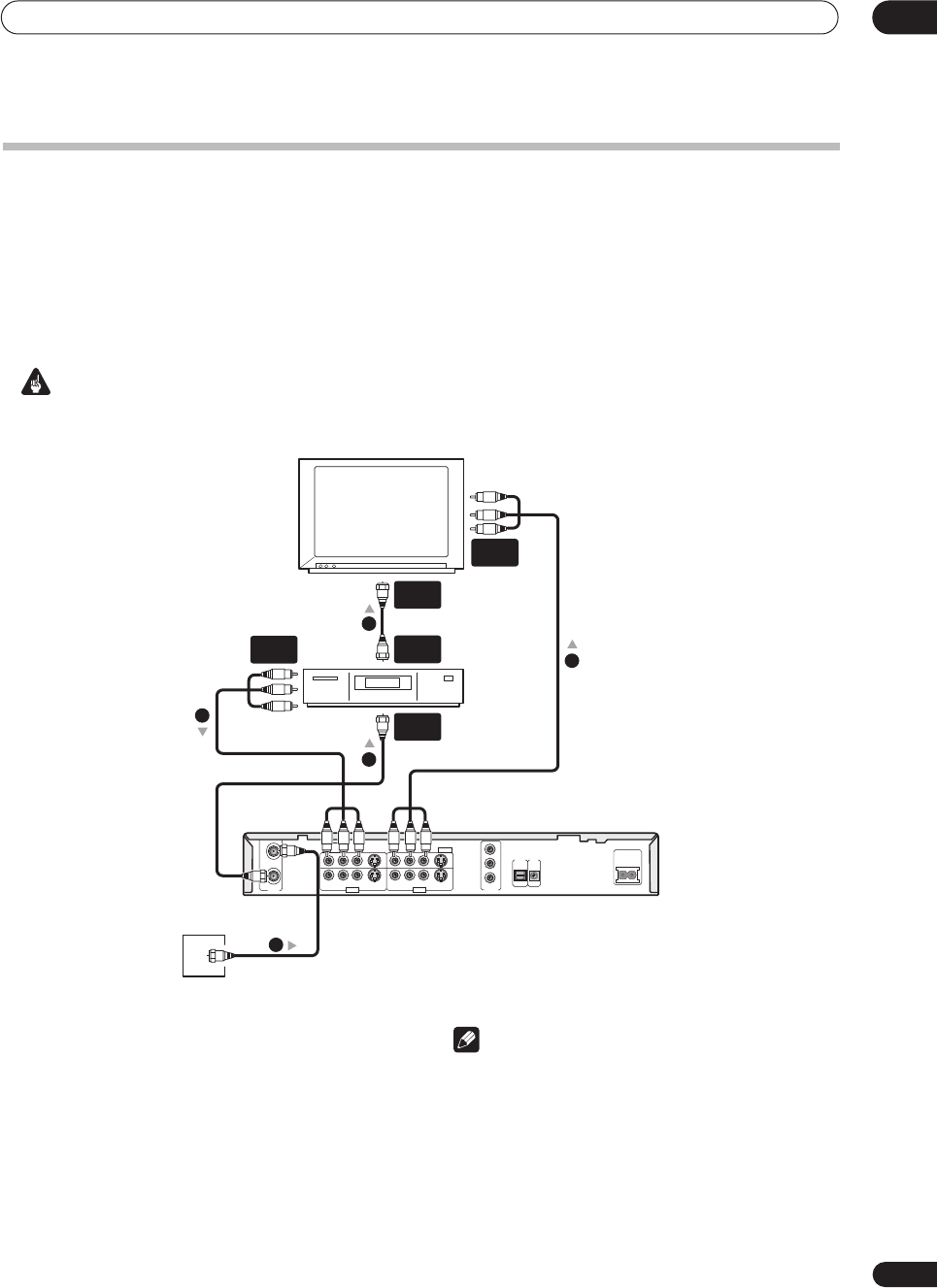

1 Connect RF antenna cables as shown.
This enables you to watch and record TV channels.
2 Connect the AUDIO and VIDEO OUTPUT jacks (1
or 2) on this recorder to a set of audio/video inputs
on your TV using a set of A/V cables (as supplied).
This enables you to watch the output from this recorder.
3 Connect the audio/video output of your cable
box/satellite tuner to the INPUT 1/AUTO REC jacks
on this recorder using a set of A/V cables.
This enables you to record scrambled TV channels.
Note
The diagram shows standard video connections, but
you can alternatively use the S-video or component
video connections if they’re available.
TV
Cable box/
Satellite receiver
COMPONENT
VIDEO OUT
DIGITAL
OUT
AC IN
OPTICAL
CONTROL
IN
Y
P
B
P
R
VHF/UHF
IN
OUT
RL RL
AUDIO
INPUT 1/
AUTO START
REC
VIDEO
S-VIDEO
OUTPUT 1
AUDIO VIDEO
S-VIDEO
INPUT 3 OUTPUT 2
Antenna/cable TV
wall outlet
VHF/UHF
IN
VHF/UHF
OUT
VHF/UHF
IN
A/V
IN 1
A/V
OUT
1
1
1
2
3
