Graphics contained within this publication are for representation only.
12
OPTICAL
ON
OFF
OUTPUT
L
R
PROG.
SCAN
AUDIO
OUT
IN
INPUT
CABLE/ANTENNA
CH4
CH3
AC IN
DIGITAL
AUDIO OUT
COAXIAL
INPUT
S-VIDEO
VIDEO
OUTPUT
Y
Pb
Pr
COMPONENT VIDEO OUT
L
R
AUDIO
VIDEO
VIDEO L
R
INPUT1
INPUT2
S-VIDEO
S-VIDEO
CABLE/ANTENNA
3a
3b
3c
5
1
SATELLITE IN
LOW SPEED
DATA
OUT TO TVIN FROM ANT
S-VIDEO
VIDEO
AUDIO OUT
R
L
PHONE JACK
2a
2b
2c
3

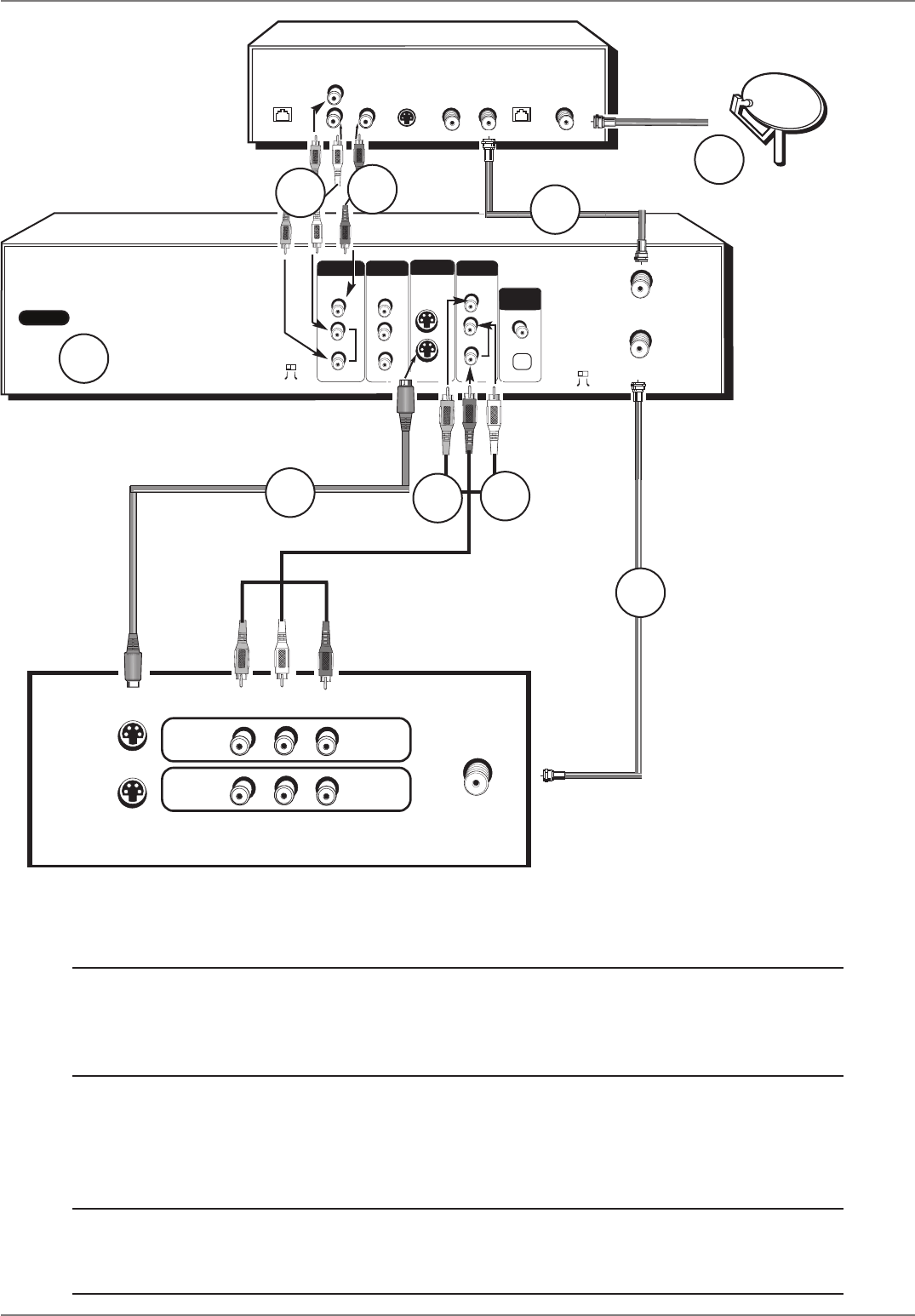

Chapter 1: Connections and Setup
To watch TV (satellite
programming) with the DVD
recorder turned on:
The back of your TV might look
different than the one pictured here.
Tune the TV to its Input 1 channel or Vid 1 channel
Tune the DVD recorder to the INPUT 1 channel (press the INPUT button on the remote).
Tune the satellite receiver to the channel you want to watch.
To watch TV (satellite
programming) with the
DVD recorder turned off:
Tune the TV to its CABLE/ANTENNA INPUT channel (usually channel 2, 3, or 4).
Tune the satellite receiver to the channel you want to watch.
To play a disc: Tune the TV to Input 1 channel or Vid 1 channel.
The back of your
satellite receiver might
look different than the
one pictured here.
Details about the different kinds of cables used to connect your DVD recorder are on page 4.
TV
SATELLITE
DISH
ANTENNA
Satellite Receiver
DVD Recorder
