Graphics contained within this publication are for representation only.
6

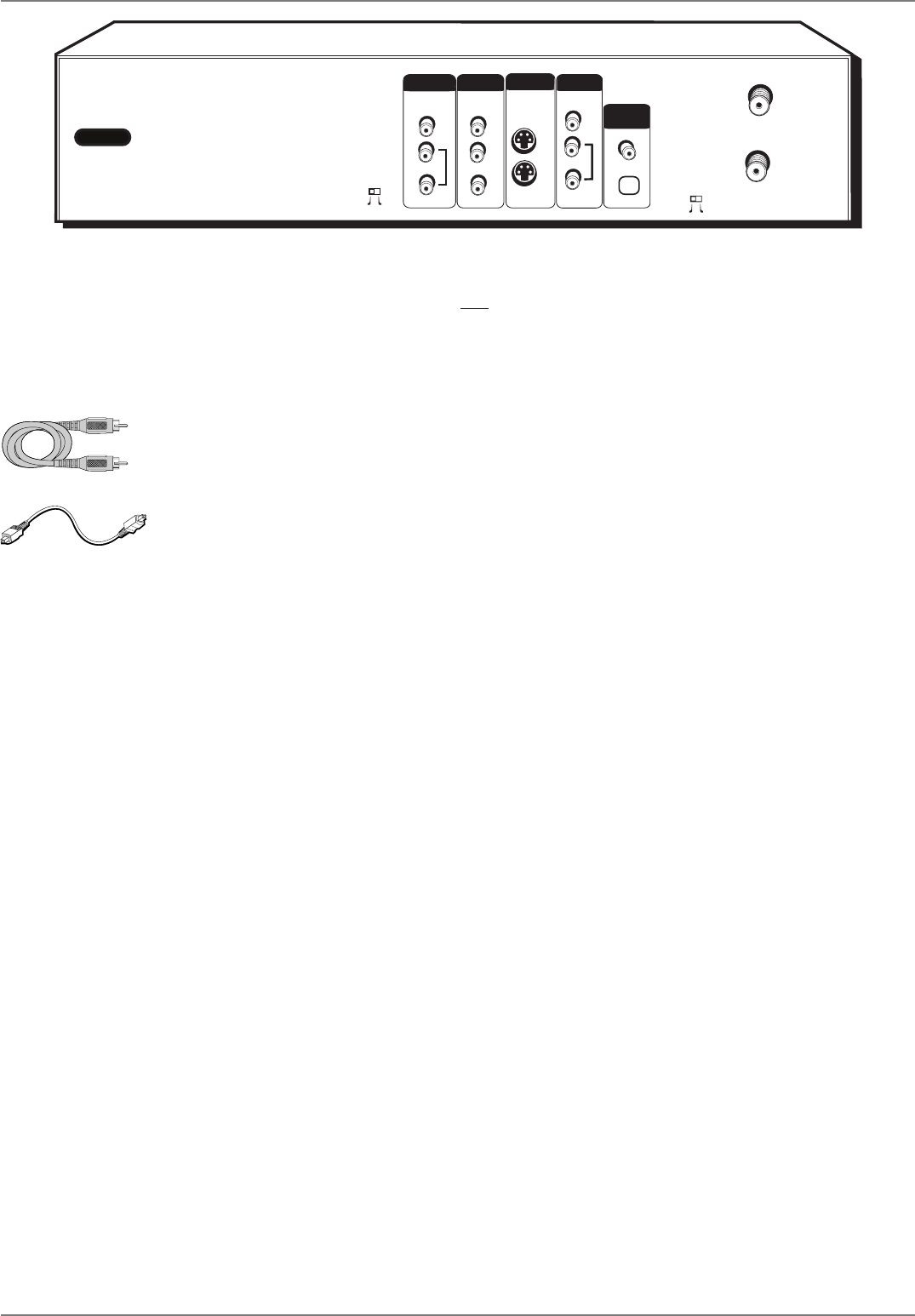

Chapter 1: Connections and Setup
OUTPUT: These jacks send the content (audio and video) from your DVD recorder OUT to the TV so you can see it on the TV screen and hear it through the TV’s
speakers.
VIDEO: Color coded yellow, the video cable you use with this jack provides better quality than an RF Coaxial cable but isn’t as good as S-Video.
AUDIO L (left): Color coded white, connect corresponding audio cable to TV’s Audio Left Input Jack.
AUDIO R (right): Color coded red, connect corresponding audio cable to TV’s Audio Right Input Jack.
DIGITAL AUDIO COAXIAL OUT: If you have a Dolby Digital or DTS receiver or decoder with a Digital Audio Coaxial Input jack, you
can achieve enhanced sound quality by connecting a digital coaxial cable (not supplied). This is an RCA-type cable, not a black coaxial cable.
OPTICAL
ON
OFF
OUTPUT
L
R
PROG.
SCAN
AUDIO
OUT
IN
INPUT
CABLE/ANTENNA
CH4
CH3
AC IN
DIGITAL
AUDIO OUT
COAXIAL
INPUT
S-VIDEO
VIDEO
OUTPUT
Y
Pb
Pr
COMPONENT VIDEO OUT
L
R
AUDIO
VIDEO
DIGITAL AUDIO OPTICAL OUT: If you have a Dolby Digital or DTS receiver or decoder
with a Digital Audio Optical Input jack, you can achieve enhanced sound quality by connecting a digital optical cable (not supplied).
CH3/Ch4 Switch This switch is also found on VCRs—it corresponds to the TV channel you would use to watch a DVD if you only have your TV connected to the DVD
recorder with an RF Coaxial Cable via the CABLE/ANTENNA OUTPUT jack (if the switch is set to CH3, you would tune the TV to channel 3). However, the connections
illustrated in the User’s Guide show a preferred connection using audio/video cables or an S-Video cable.
CABLE/ANTENNA INPUT: Connect an RF Coaxial cable from an off-air antenna, cable box, or cable outlet to this jack. The cable is sending the programming from the
source to the DVD recorder.
CABLE/ANTENNA OUTPUT: Connect an RF Coaxial cable (provided) to this jack and to the Cable/Antenna Input jack on your TV.
Note: Make sure you connect regular audio cables in addition to connecting a Digital Audio cable because you can only use the DIGITAL AUDIO connection for DVD
Playback.
