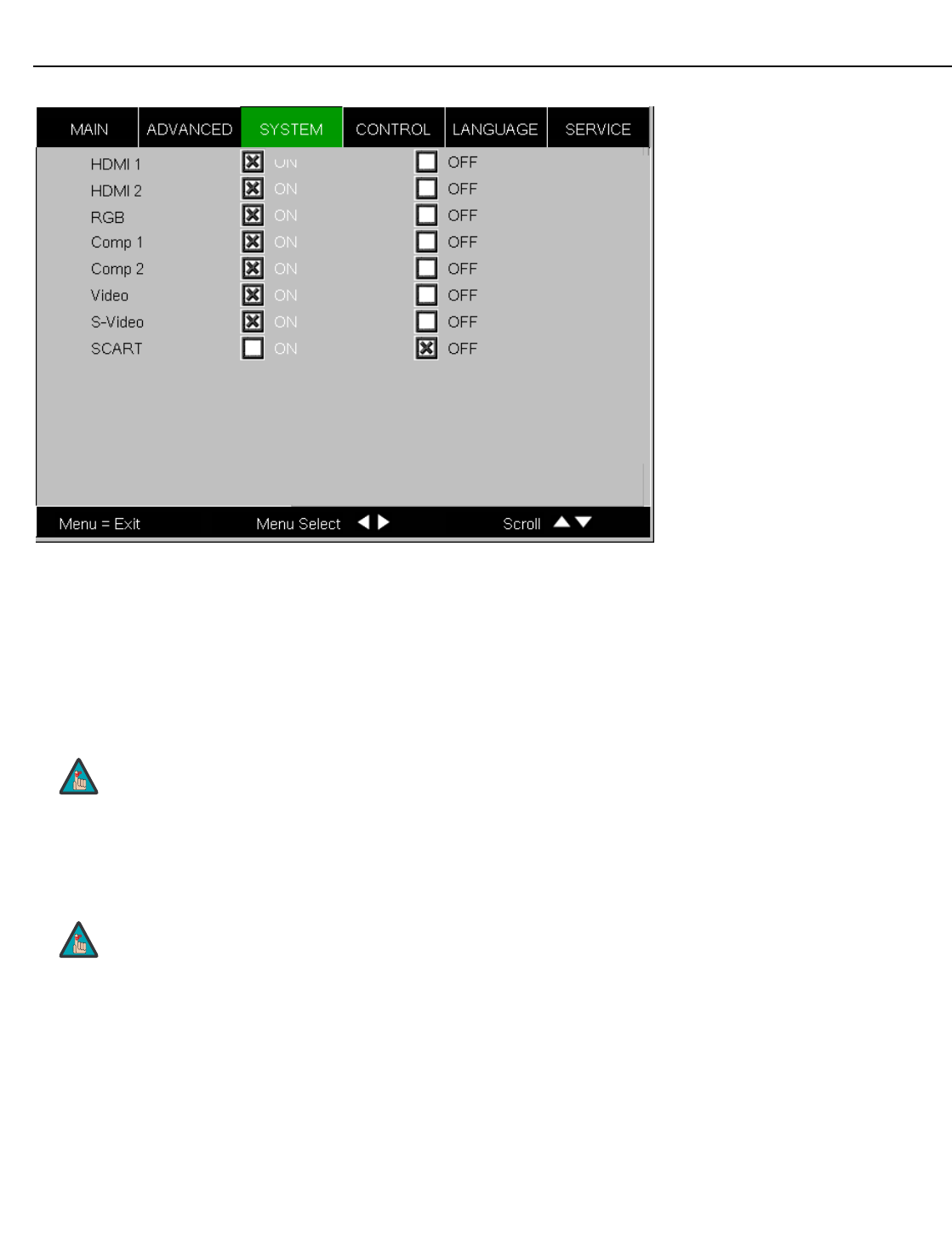

Figure 4-14. Input Enable Sub-Menu
• HDMI 1/HDMI 2: Enables or disables the HDMI 1 and HDMI 2 sources.
• RGB: Enables or disables the RGB source.
• Comp 1/Comp 2: Enables or disables the Component 1 and Component 2 sources.
• Video: Enables or disables the Composite video source.
• S-Video: Enables or disables the S-Video source.
• SCART: Enables or disables the SCART RGBS source.
PIP Position: To change the position of the PIP image, choose PIP Position from the
System menu; see Figure 4-15. Choose one of the following:
• Top Left: This places the PIP source into a 644x362 designated image area at the top
left of the screen.
• Top Right: This places the PIP source into a 644x362 designated image area at the
top right of the screen.
• Bottom Left: This places the PIP source into a 644x362 designated image area at the
bottom left of the screen-safe area of the DMD.
If either Component 1 or Video is enabled, SCART must be disabled.
If SCART is enabled, both Component 1 and Video must be disabled.
