14 Vistage™ Series Flat-Panel Display Installation/Operation Manual
PRE
L
IMINAR
Y
Notes on Remote Control
Operation
• Make sure that there is nothing obstructing the infrared beam between the remote
control and the IR receiver on the DHD Controller.
• If the effective range of the remote control decreases, or it stops working, replace the
batteries with new ones.
• The remote control may fail to operate if the infrared remote sensor is exposed to bright
sunlight or fluorescent lighting.
• Ambient conditions may possibly impede the operation of the remote control. If this
happens, point the remote control at the DHD Controller, and repeat the operation.
3.2
Quick Setup
Table 3-1 gives a quick overview of the V-50HD/V-63HD installation process. The
sections following this one provide detailed instructions.
➤
Table 3-1. Installation Overview
Step Procedure
For Details, Refer
to page...
1

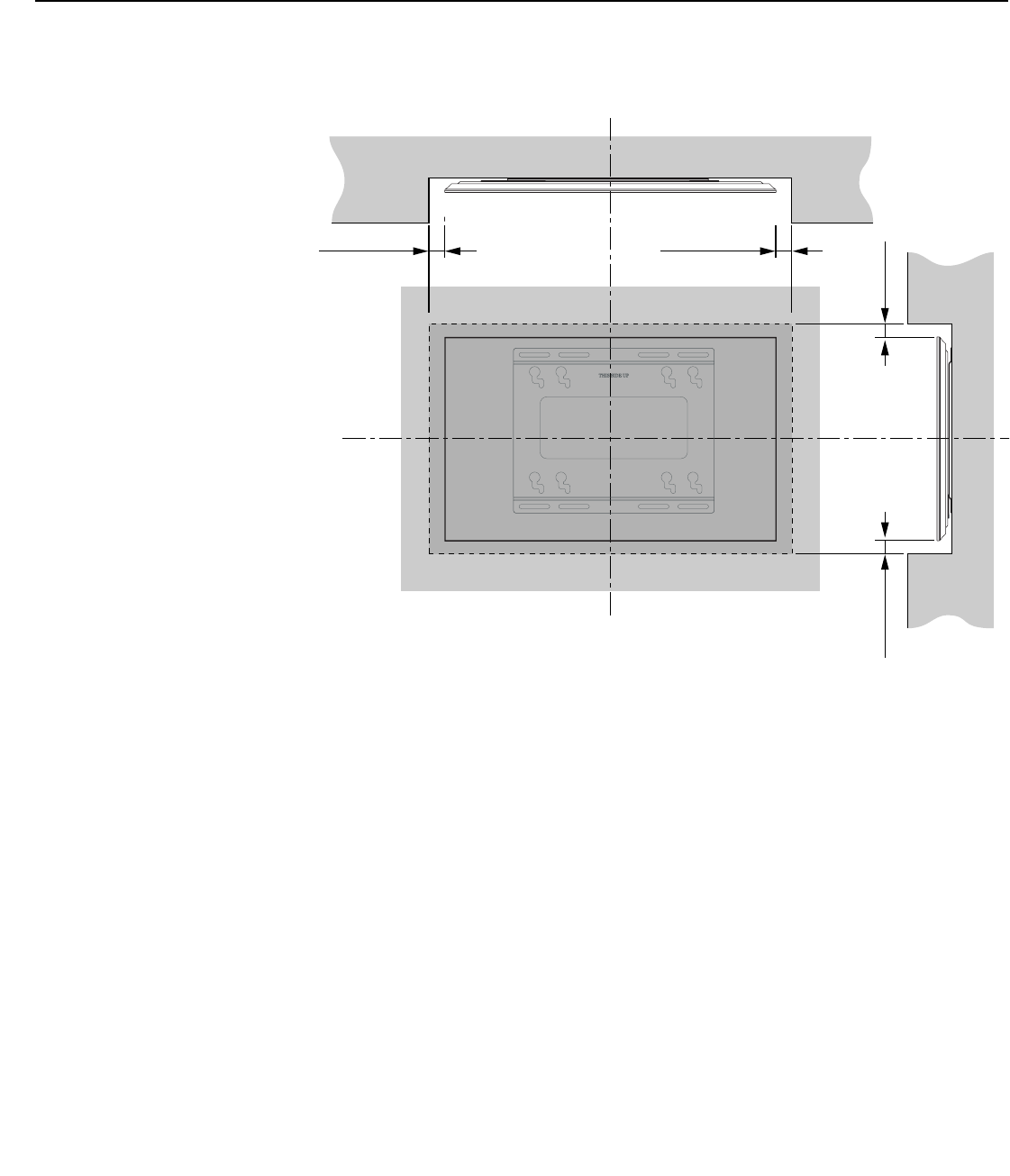

Mount the V-50HD/V-63HD on a wall (refer to instructions
provided with the wall-mount kit)
—OR—
Attach table stand (refer to instructions provided with the stand)
15
2
Connect the DHD Controller to the display 17
3
Connect signal sources to the DHD Controller 18
4
Connect other external equipment to DHD Controller (optional):
• Audio processor or secondary display device
• Control system interface (RS-232)
• Network hub, router or gateway (Ethernet)
22
5
Apply power to the display and DHD Controller 24
6
If using the V-50HD/V-63HD with a computer, adjust computer
display properties
25, 38
7
DHD Controller input calibration: adjust the following for each
DHD Controller input and display mode (resolution/frame
rate); save settings when finished:
• Aspect ratio • Color level
• Brightness • Tint
• Contrast • Input position
• Color temperature and white balance
29 through 44
