Connecting to an Analog Amplifier
• Please be sure to match the color coded input terminals and cable jacks.
The “AV OUT (R, L)” terminals cannot be used for
external speakers. You must hook them up to an
amplifier.
When an audio amplifier is connected to the “AV
OUT (R, L)” terminals: Decrease the gain (volume) of
the TV, and adjust the volume level with the
Amplifier's volume control.

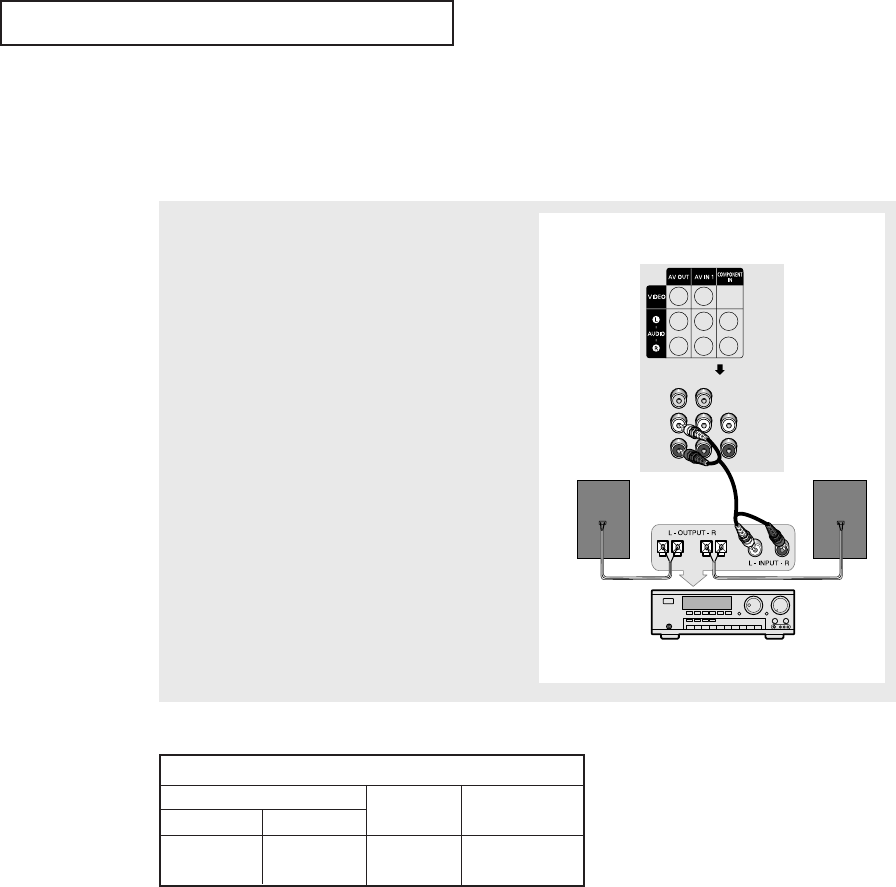

TV Rear Panel
SpeakerSpeaker
Audio Cable
Amplifier
• If you want to play movies by connecting DVD player with the COMPONENT IN jacks on the
TV, connect the AUDIO OUT jacks on DVD player to an Amplifier.
