Hookups and Settings
With this hookup, you can record any programme position on the set top box receiver.
To watch cable programmes, you need to match the programme position on the recorder to the
aerial output programme position on the set top box receiver.
*1
If your set top box receiver does not have an aerial output jack, connect the aerial to the recorder’s
ANALOG AERIAL IN jack.
*2
Connect only if your set top box receiver has a SCART connector.

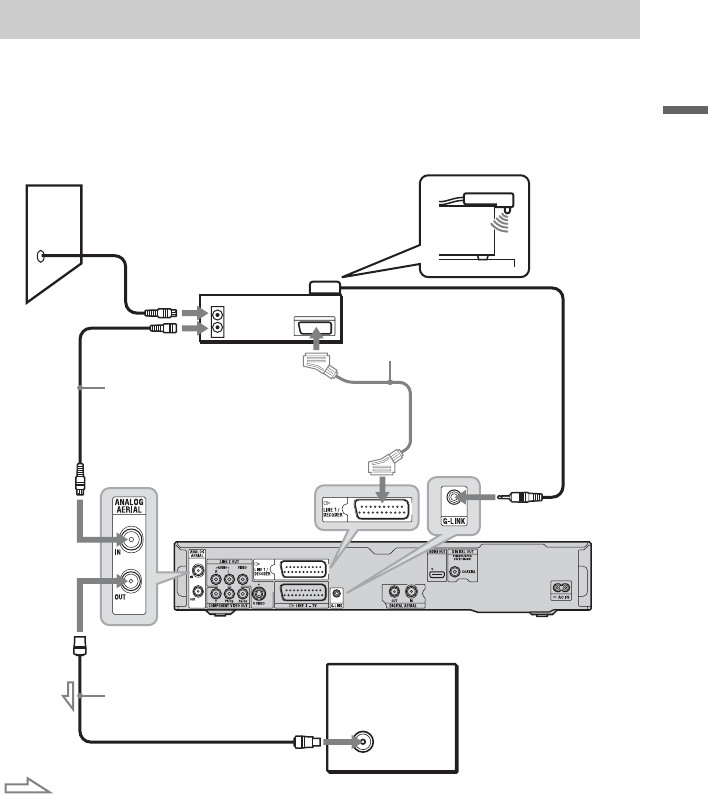

B: Receiving cable or satellite (For analogue broadcasting)
ANT IN
TO TV
DVD recorder
: Signal flow
Set top box
receiver
to ANALOG
AERIAL OUT
to aerial input
SCART cord
*2
(not supplied)
Wall
TV
Set top box
controller
(page 15)
Place the set top box controller
near the remote sensor on the
set top box receiver.
to G-LINK
to ANALOG
AERIAL IN
Aerial cable
*1
(not supplied)
Aerial cable
(supplied)
,continued
