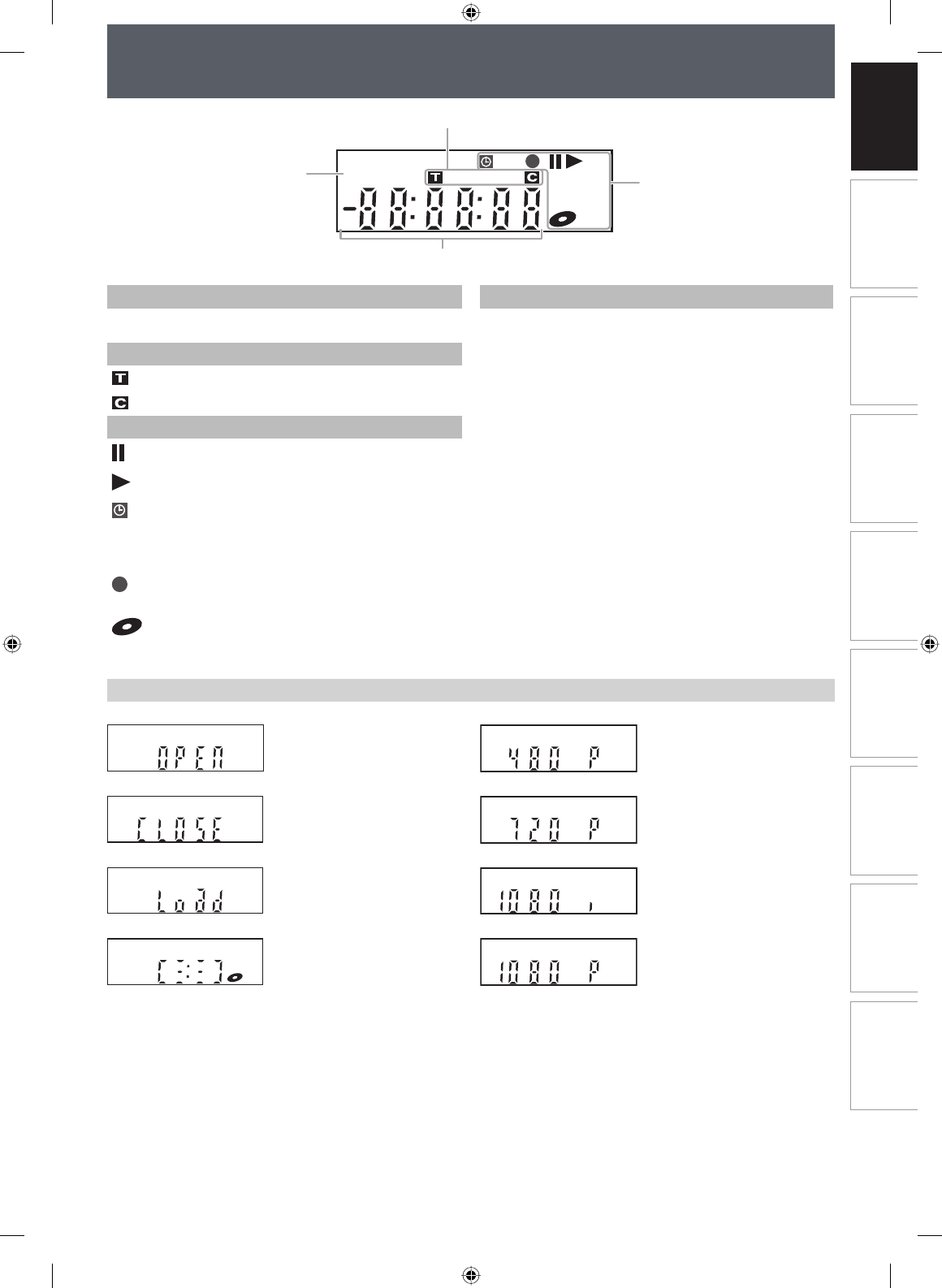

FRONT PANEL DISPLAY GUIDE
Appears when data is being
recorded on a disc.
Appears when a disc is loaded
on the disc tray.
Appears when the disc tray is
opening.
Appears when HDMI video
resolution (720p) is selected.
Appears when HDMI video
resolution (1080p) is selected.
Appears when HDMI video
resolution (480p) is selected.
Appears when HDMI video
resolution (1080i) is selected.
Appears when the disc tray is
closing.
Display Message
PM
BS CS DR CD
HDD
1
4
2
3
1.
PM
: Appears in the afternoon with the clock display.
2. Title / track and chapter mark
: Appears when indicating a title / track number.
: Appears when indicating a chapter number.
3. Current status of the unit
: Appears when playback is paused.
: Appears when playing back a disc.
: Appears when the timer programming or OTR
has been set and is proceeding.
: Flashes when all timer recordings have been
finished.
: Appears during recording process.
: Flashes when a recording pauses.
: Appears when a disc is in this unit.
4. Displays the following
• Elapsed playback time
• Current title / chapter / track / file number
• Recording time / remaining time
• Clock
• Selected external input position
• Remaining time for one-touch timer recording
• Selected HDMI video resolution
