Setting up the DVD player
59
To connect to Meridian DSP
loudspeakers
DIGITAL
OUTPUT
COMMS
OUTPUT INPUT
DIGITAL
OUTPUT
DIGITAL INPUTS
21
COMMS
OUTPUT INPUT
DIGITAL
OUTPUT
DIGITAL INPUTS
21
M5 lead
S5 lead
DSP5000 – Main R (slave) DSP5000 – Main L (master)
586 DVD Player
COMMS

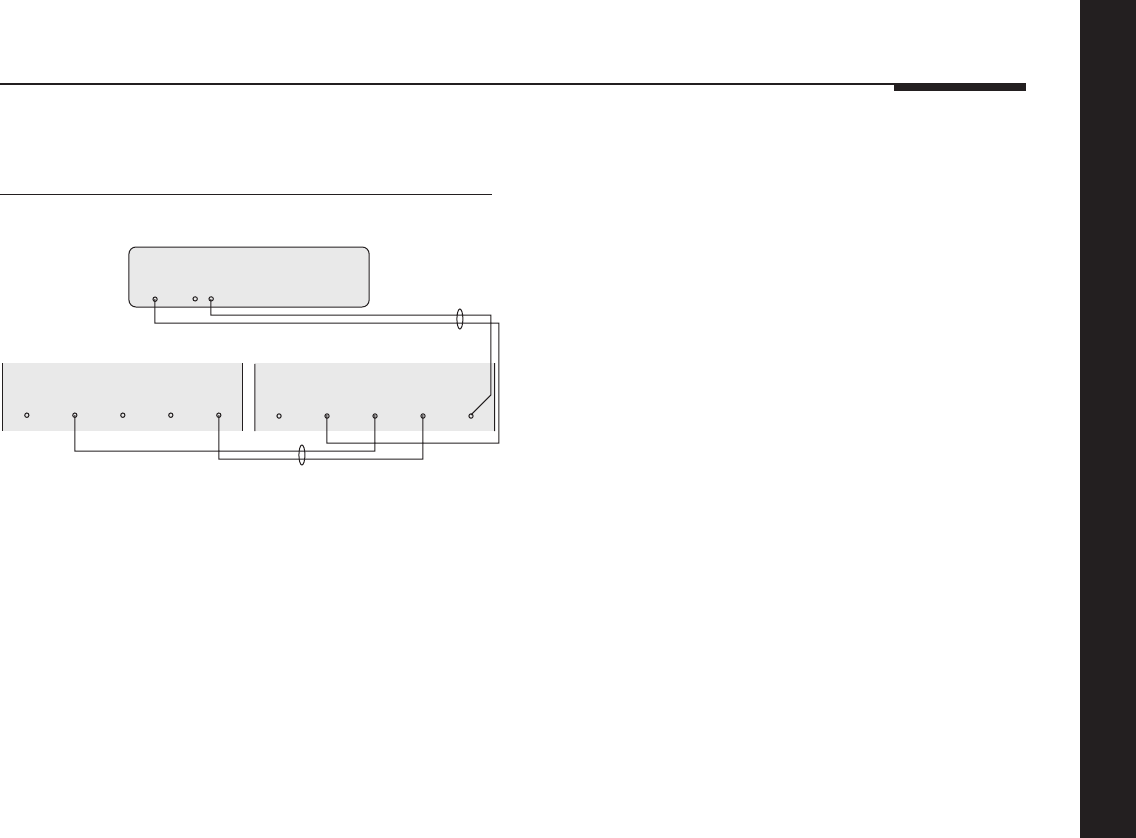

Connect the DIGITAL OUT from the 586 DVD Player to
DIGITAL INPUT 1 on the master DSP loudspeaker.
Connect the DIGITAL and COMMS output from the left DSP
loudspeaker to the DIGITAL and COMMS INPUTS on the
slave DSP loudspeaker, using an M5 lead.
Leave the AUDIO OUT SEL. menu option set to PCM; see To
select the audio output format, page 37.
