One-Button Measurement Functions
Trace/View (Burst Power)
One-Button Measurement Functions
2.6 Trace/View (Burst Power)
If Burst Power has been selected in the Measure menu of the Spectrum Analysis mode, this
key displays the appropriate
Trace/View menu for the burst power measurement.
Displays menu keys that enable you to set how trace information is stored and displayed.
Key Path: Front-panel key
History: Added with ESA firmware revision A.08.00
Remote Command:
There is no remote command for this key.
2.6.1 RF Envelope

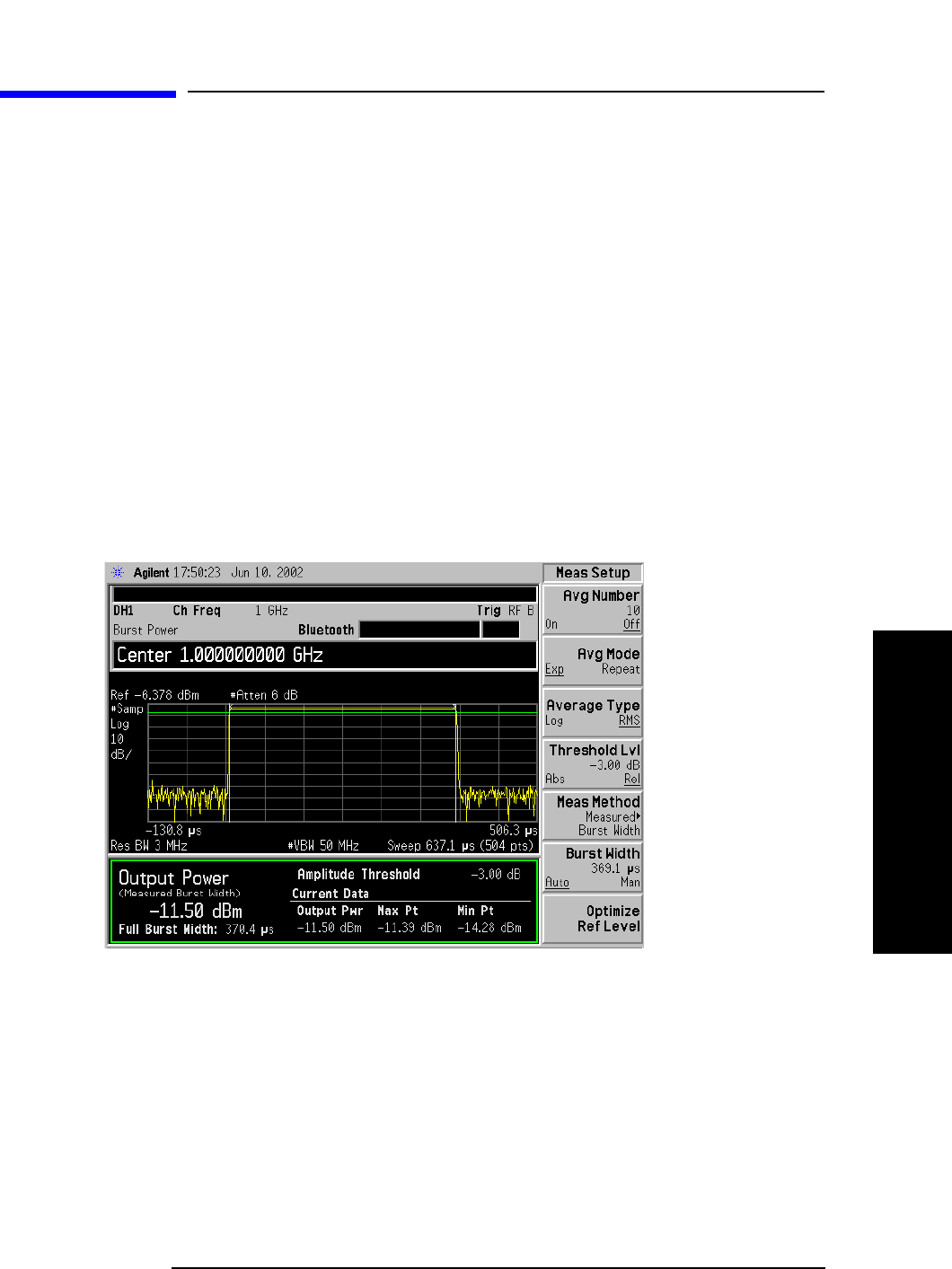

Press RF Envelope to view the measurement results as shown in the following figure. The
results are updated after each sweep.
Key Path:
Trace/View
History: Added with PSA firmware revision A.02.00
Added with ESA firmware revision A.08.00
2.6.2 Combined
Pressing Combined displays measurement results the same as RF Envelope, but has a blue
bar between the markers to indicate the measured output power level. The actual measure
