ENGLISH
19
PREPARATIONS
En
S-VIDEO
OUT
DIGITAL
OUT
AUDIO
OUT1
DIGITAL OUT
VIDEO OUT
S-VIDEO
COMPONENT/
PROGRESSIVE SCAN
COAXIAL
OPTICAL
L
R
AUDIO
OUT2
L
R
Y
COMPONENT
VIDEO OUT/
PROGRESSIVE
SCAN
VIDEO
OUT
P
R
/C
R
P
B
/C
B

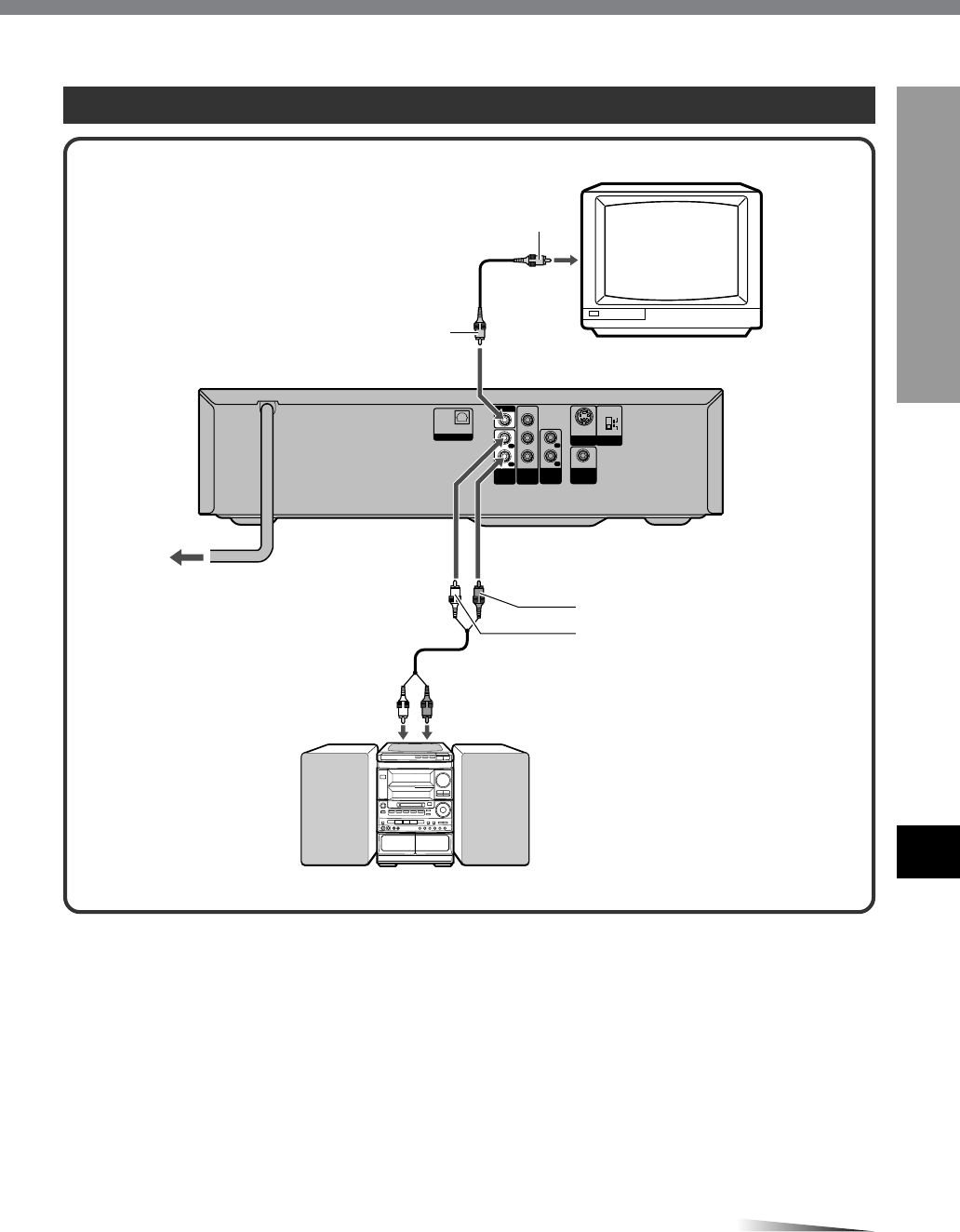

C Connecting to a TV and a stereo system
Set the setup menu correctly after
connecting
Set the "TV Aspect" in the setup menu according to the TV
connected to the unit as follows:
(See "Changing Setup Values" on page 46 for details.)
TV Aspect
When the TV has a conventional 4:3 screen:
4:3 Letterbox or 4:3 Panscan
When the TV has a wide 16:9 screen:
16:9 Wide
TV
yellow
to the video input jack (yellow)
Video cord (supplied)
yellow
to VIDEO OUT jack
(yellow)
Rear of the unit
red
white
Audio cord (supplied)
to an AC outlet
to the audio input jacks
(Left/white, Right/red)
Stereo system
to AUDIO OUT 1*
L (white)/R (red) jacks
CONTINUE
* AUDIO OUT 2 L/R jacks are also available.
