Chapter 4: Operation
4. Operation
The LEDs on the Extender Units show the real-time status indicating the linking and
communication between the local and the remote unit. The LED indicator on the
top of the unit shows the status.
The quality of the output signal depends upon the quality of the video source, cable,
and display device used. Low-quality cables degrade output signals causing elevated
noise levels. Use the proper cable and make sure the display device is capable of
handling the resolution and refresh rate selected.
NOTES:
1. The system will disable the video output signal when it detects non-HDCP-
compliant display(s) when playing the HDCP video source.
2. A 2D monitor might disable the video output signal when it detects 3D video
source.
Video source
with HDCP
from local unit
HDCP
compliant
Remote unit
HDCP
compliant

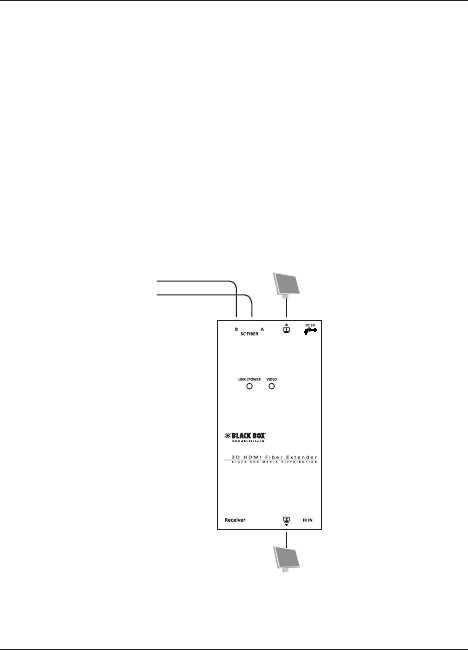

Figure 4-1. Use a quality video source, cable, and display device.
