280-8212-00
TB851P/TB853W 27
English
■ Connecting the Accessories
• Connection to the CCD camera for vehicle
For detailed information, refer to the instruction sheet or manual for the CCD camera.
Notes:
•A power supply box (sold separately) is required for connecting the main unit and the CCD camera.
• The power supply box for camera CAA147 cannot be used. Please use the CAA188 instead.

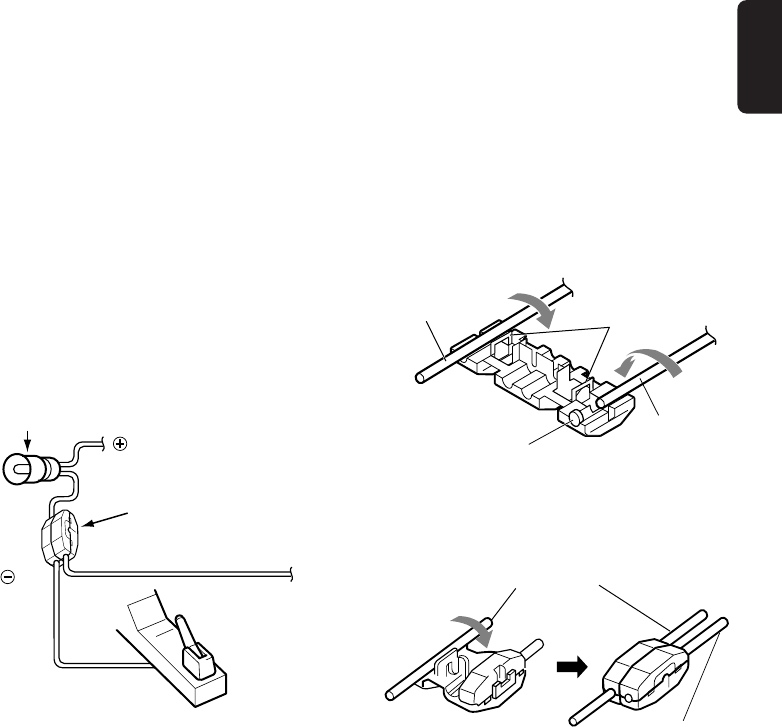

■ Connect the parking brake wire
Connect the parking brake wire (supplied with
unit) from this unit to the parking brake lamp
ground wire in the dashboard panel. Use the
electrotap (comes supplied with this unit) when
making the connection.
• Connecting this parking brake wire to the
ground of the lamp allows you to watch video
on this unit when the parking brake is on.
• No TV images will appear unless you connect
this parking brake wire as shown below.
wire
Electrotap
Parking brake
Parking brake lamp
wire
Parking brake
wire from this unit
(grass green)
1. Press the parking brake wire (orange) from
this unit against the (opened) stopper and
fold the stopper towards the arrows as
shown.
Stopper
Parking brake
wire from this
unit
Vehicle parking
brake lamp
ground wire
Latch
2. Lay the vehicle wire as shown and fold the
stopper towards the arrows.
Parking brake
wire from this
unit
Vehicle parking brake
lamp ground wire
Tighten with long-nose
pliers or similar tool until
the latch engages
*TB851P/TB853W(21-28)E 05.2.25, 11:27 AM27
